Operating Procedure Section 4-2

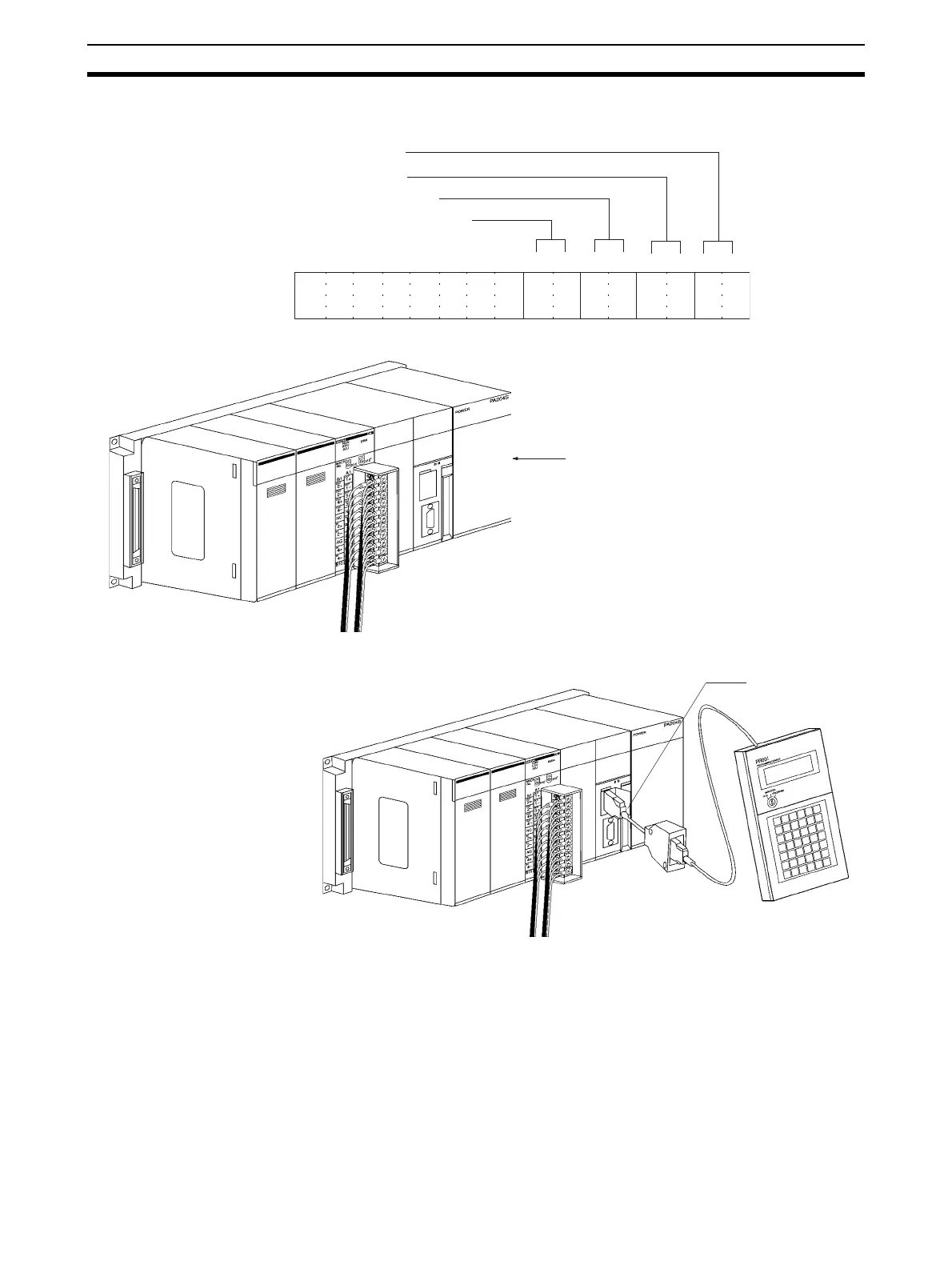

• The following diagram shows the output range settings. Refer to 4-6-1
Output Settings and Conversions for more details.
2. Restart the CPU Unit.
Creating Ladder Programs
The setting address D00200 is stored in words (n + 1) to (n + 3) of the Special
I/O Unit Area (CIO 2011 to CIO 2013) as a signed binary value between 0000
to 0FA0 Hex.
15 14 13 12 11 10 09 08 07 06 05 01 0004 03 02
0 0 0 0 0 0 0 0 0 0 0 0 1 0 1 0
Bit
m+1: DM20101
(000A Hex)
Output 1: 1 to 5 V. Set to 10.
Output 2: 1 to 5 V. Set to 10.
Output 3: –10 to 10 V. Set to 00.
Output 4: Not used. Set to 00 (disabled).
Power turned ON again
(or Special I/O Unit Restart Bit is turned ON)
Peripheral port
To Next Page
