Sample Programs Appendix B

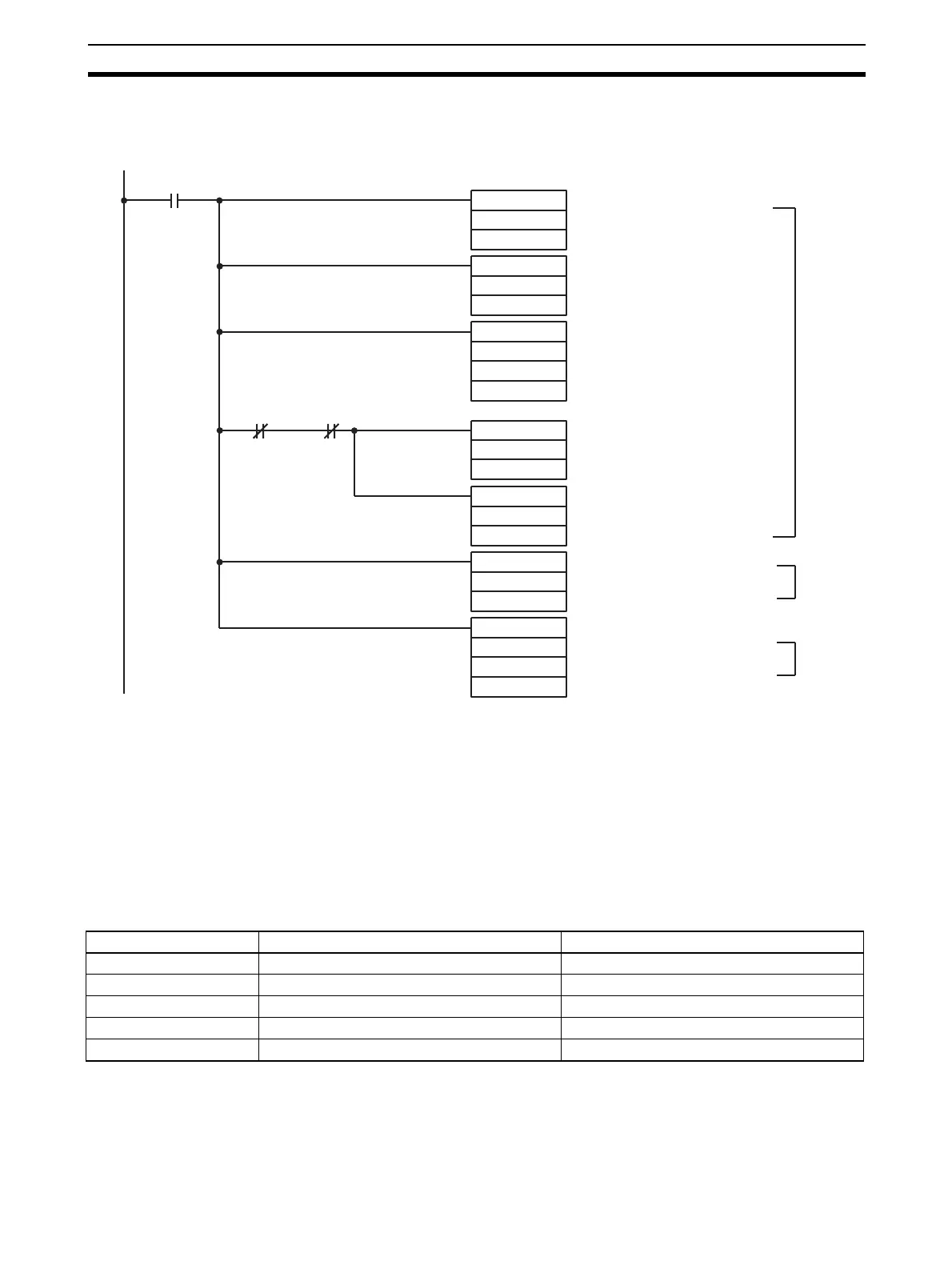

Program Example
• Data Flow (Unit Number 0):
Word 2001 (A/D Conversion Value)
→ Words 0201 and 0200 (Conversion Result)
(1) If the leftmost bit is a 1 (negative number) in 16-bit binary data, the data is reversed and the leftmost word
becomes F000.
(2) 16-bit binary data is converted to BCD.
(3) Signed BCD data is output to words 0200 and 0201.
Square Root Calculation
Data expressed as quadratic curves, such as thermocouple inputs, is converted and output to linear data (0000
to 4000).
Unit Settings
Item Setting contents Actual settings
Unit CS1W-AD081-V1 ---
Unit number #0 Unit number switch: 00
Operation mode Normal mode Back-panel DIP switch: All OFF
Input number Input 1 used D20000 = 0001
Input signal range Input number 1, 0 to 10 V D20001 = 0001
ANDW(034)
#8000
D00000
D00002
=ERR
MOV(021)
2001
D00000
MOV(021)
#0000
D00001
NEG (060)
D00000
D00000
MOV(021)
#F000
D00001
BCD(024)
D00000
D00000
XFER(070)
#0002
D00000
0200
Execution condition
16-bit binary data
Clears leftmost word to 0000
Adds 1 and reverses
leftmost bit if it is not 0.
Sends F000 to leftmost word if
the leftmost bit is not 0.
Converts to BCD.
Outputs signed BCD data to
words 0200 and 0201.
(1)
(2)
(3)
