If the unit number is set to 1, words will be allocated to the Special I/O Unit
Area CIO 2010 to CIO 2019 and to the Special I/O Unit Area D20100 to
D20199.
Note A single CS1W-AD161 is allocated CIO Area words and DM Area words for
two Units. For example, if the unit number is set to 1, the CS1W-AD161 will be
allocated CIO Area words CIO 2010 to CIO 2029 and DM Area words D20100
to D20299.
5. Turn ON the power to the PLC.
Creating I/O Tables
After turning ON the power to the PLC, be sure to create the I/O tables.

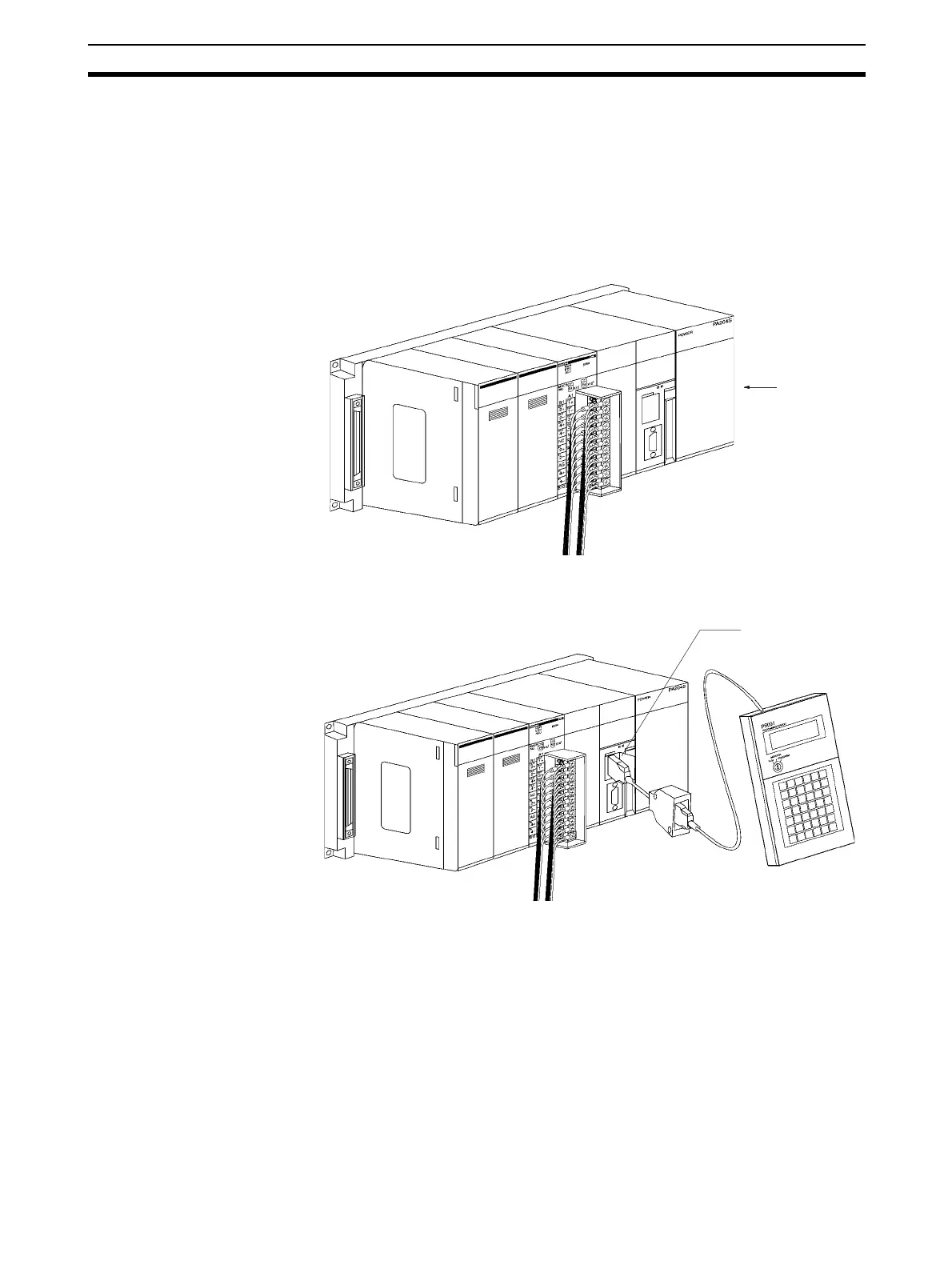

Power ON
Peripheral port
To Next Page
