Preparing and Mounting Flat Connectors Section 4-3

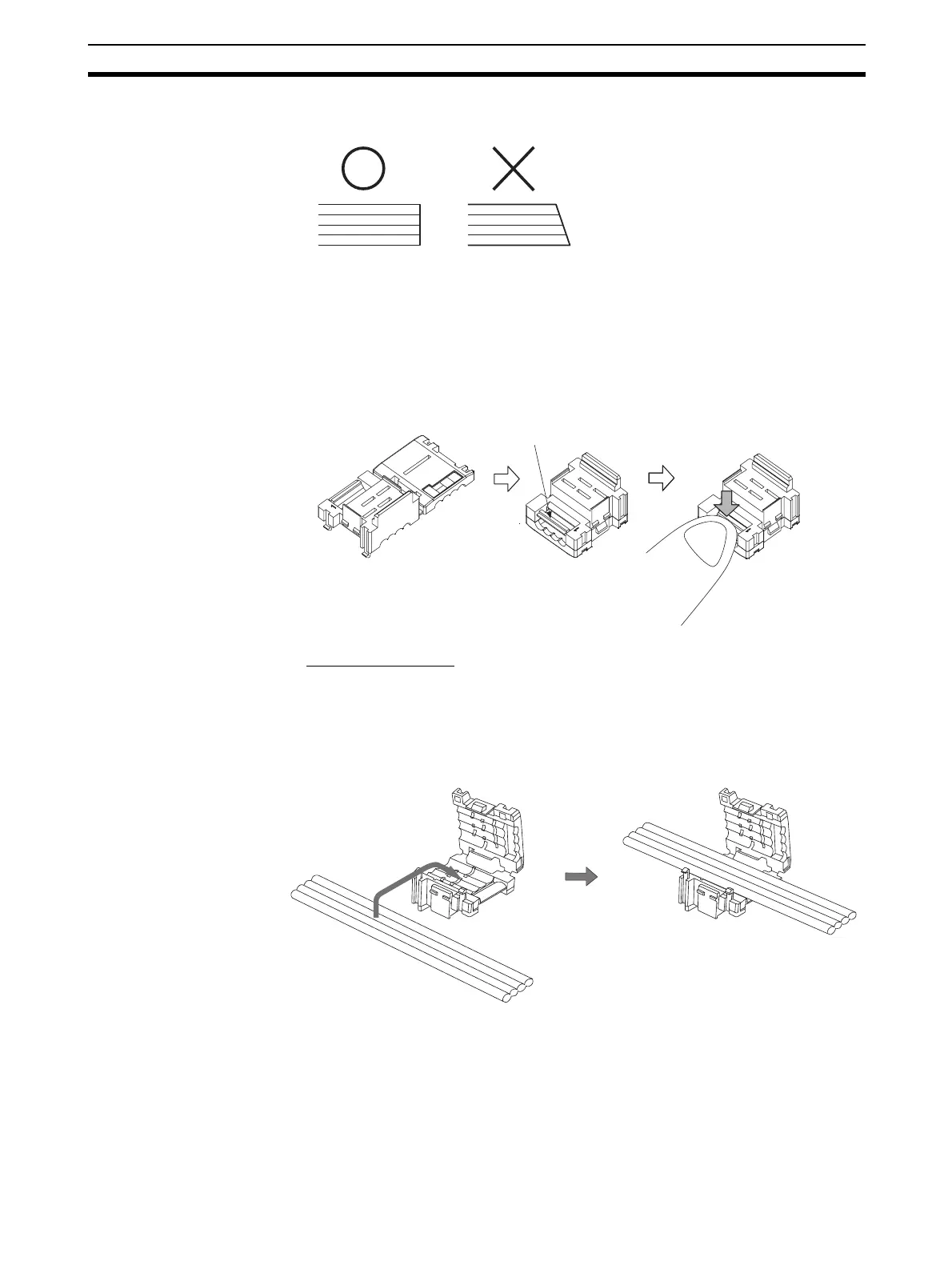

To prevent short-circuits, use a sharp cutting tool such as nipper. Confirm
there is no remaining wire coming out.
■ Setting the Cable Stopper
This step is required only for extending the cable or connecting a Terminating
Resistor.
For these purposes, the cable can end in the connector. Set the cable stopper
in advance. Close the cover. Secure the hooks. Press down on the cable stop-
per until it clicks into place.
■ Mounting the Cable
■ T-branching
1,2,3... 1. Confirm that the cable colors match the cable labels, and then place the
cable in the cover.
2. Close the cover to sandwich the cable and secure the hook.
Cable stopper
To Next Page
