14
Devices in a CompoNet Network Section 1-3

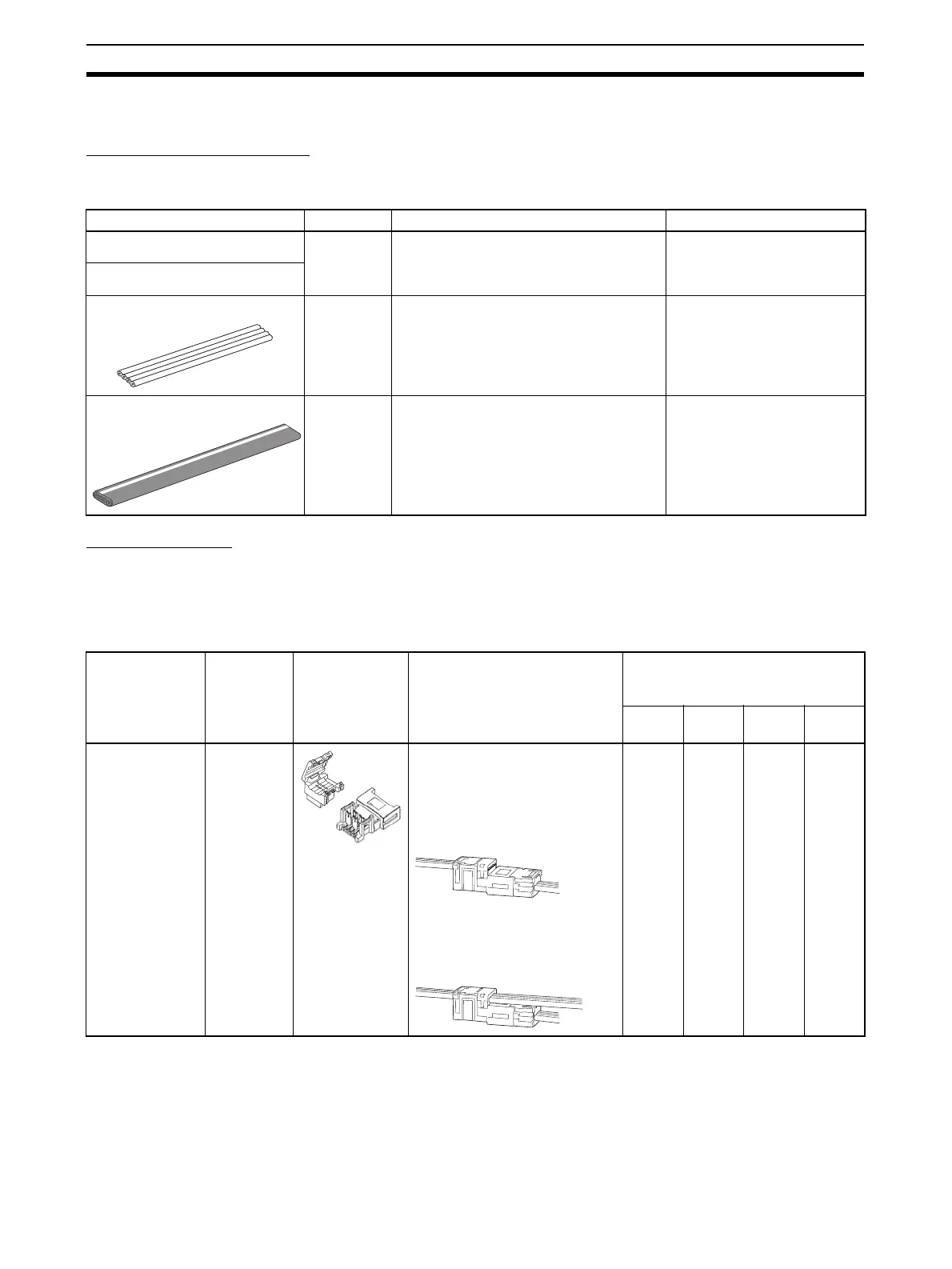

1-3-2 Peripheral Devices
Communications Cables
The following table shows the Communications Cables that can be used in a
CompoNet Network.
Flat Connectors In a CompoNet Network, the connectors described below can be connected
to the Communications Cable to enable extending the cable length, branching
cables, and wiring to Slave Units.
Flat Connector Socket
■ Flat Cable I
Note The only case when the Socket is used with a Round Cable II is to connect
the Cable to a Terminating Resistor.
Name Model Specifications Remarks
Round Cable I --- JIS C 3306
Nominal cross-sectional area: 0.75 mm
2
,
Finished conductor diameter: 2.3 mm
Cannot be used with Bit Slave
Units.
Round Cable II
Flat Cable I DCA4-4F10 Standard 4-conductor flat cable (UL2555)
Length: 100 m
Conductor diameters:
0.75 mm
2
× 2, 0.5 mm
2
× 2
Approximately 50 cm of cable
comes connected to IP20 Bit
Slave Units.
Flat Cable II DCA5-4F10 Sheathed 4-conductor flat cable
Length: 100 m
Conductor diameters:
0.75 mm
2
× 2, 0.5 mm
2
× 2
Approximately 50 cm of cable
comes connected to IP54 Bit
Slave Units.
Name Model Appearance Application
Communications Cables
(Yes: Can be used.
No: Cannot be used.)
Round
Cable I
Round
Cable II
Flat
Cable I
Flat
Cable II
Flat Connector
Socket
DCN4-TR4 Use this Connector in a set with
a DCN4-BR4 Flat Connector
Plug for the following applica-
tions.
• Extending the trunk line or a
sub-trunk line
• T-branching from the trunk line
or a sub-trunk line
• T-branching a sub-branch line
from a branch line
No
Ye s
(See
note.)
Ye s N o
To Next Page
