76

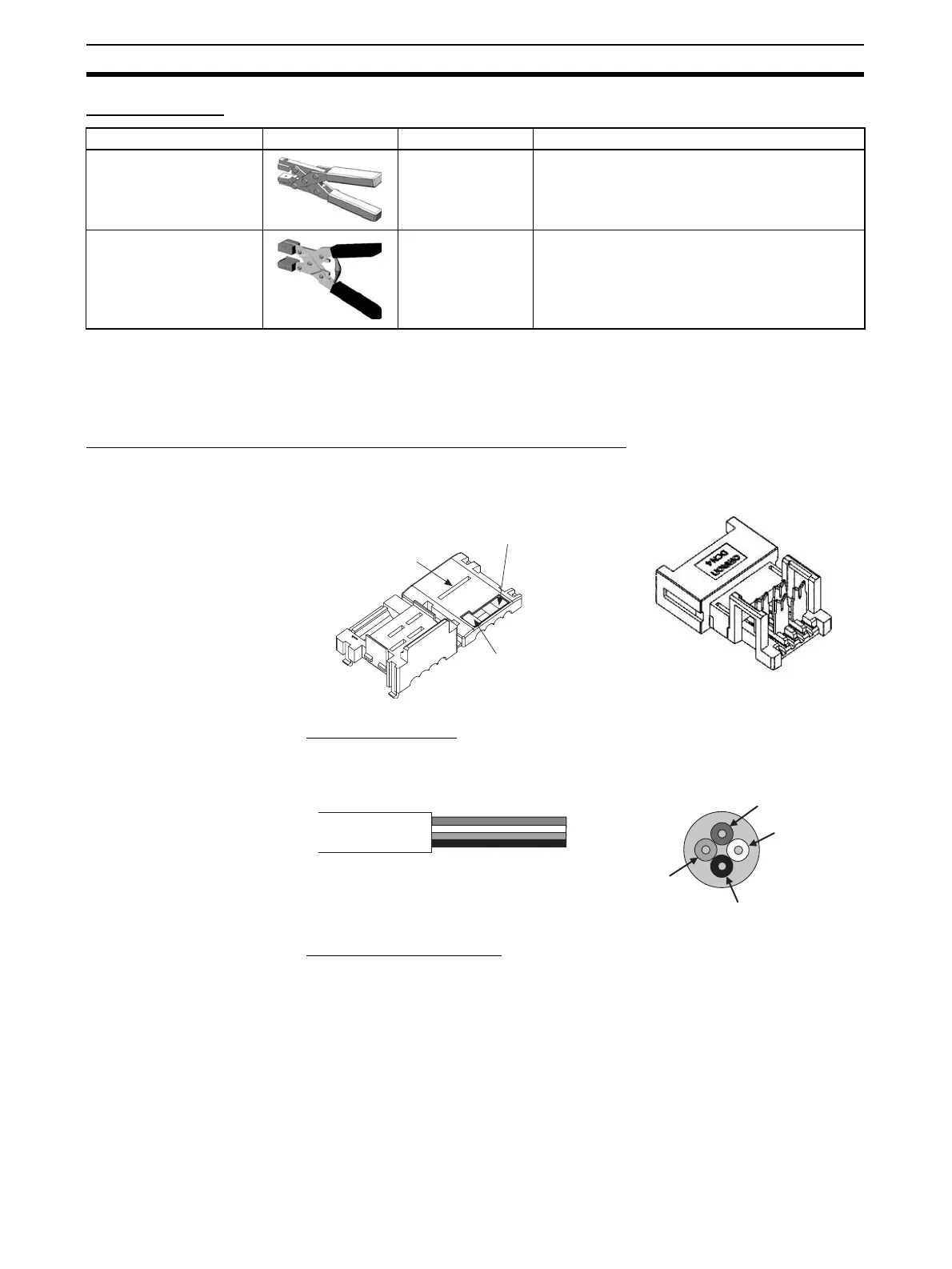

Preparing and Mounting Flat Connectors Section 4-3
Tools Required
4-3-1 Round Cable II
A Flat Connector must be mounted on a Round Cable II cable only when a
Terminal Resistor is attached to it.
Preparing and Mounting DCN4-TR4 Flat Connector Sockets
■ Component Names
■ Preparing the Cable
At the tip of cable, make a cut line perpendicular to the cable length on the
sheath, and strip the sheath.
■ Setting the Cable Stopper
Set the cable stopper. Close the cover. Secure the hooks. Press down on the
cable stopper until it clicks into place.
Name Appearance Model Application
Pliers DWT-A01 Crimping tool for DCN4-TR4 Flat Connector
Socket or DCN4-BR4 Flat Connector Plug
Pliers DWT-A02 Crimping tool for DCN5-TR4 Flat Connector
Socket or DCN5-BR4 Flat Connector Plug
Cover Housing
Cable confirmation slot
Cable labels
(Flat cable: black, blue, white, and red)
Black
Green or Blue
White
Red
Black
