Power Supply Wiring Section 4-4
Otherwise, transmission may deteriorate and communications errors may
occur.

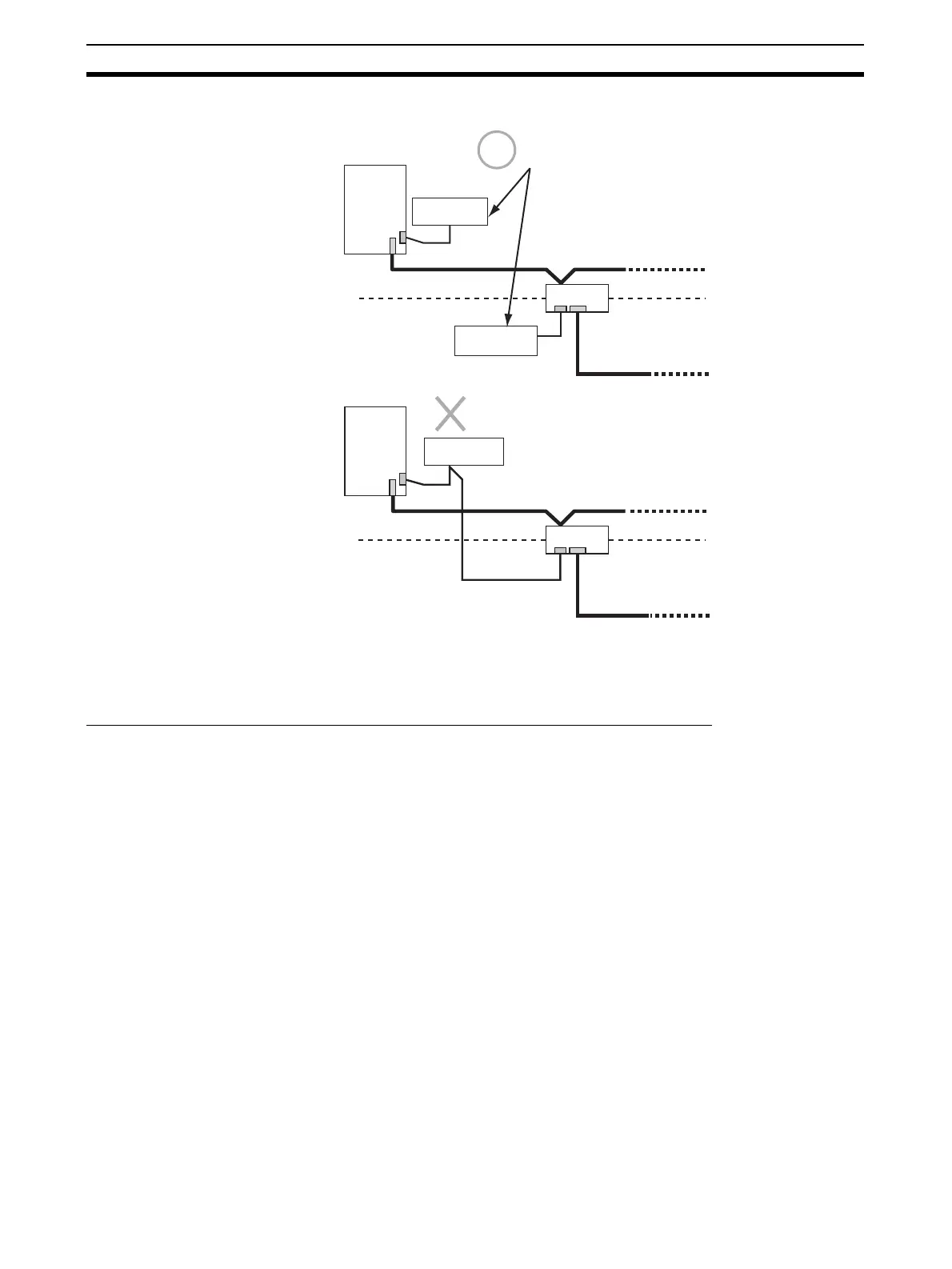

Using Round Cable I with Round Cable II, Flat Cable I, or Flat Cable II
In a CompoNet network, Round Cable I cables can be installed under the
same Master Unit as Round Cables II, Flat Cable I, or Flat Cable II cables as
long as they are separated by a Repeater Unit.
Round Cable II, Flat Cable I, or Flat Cable II
Master Unit/
Repeater Unit
Repeater Unit
Trunk line or
sub-trunk line
Communications
power supply
Master Unit/
Repeater Unit
Repeater Unit
Sub-trunk
line
Communications
power supply
Round Cable II, Flat Cable I, or Flat Cable II
Power Cannot Be Supplied
Power Can Be Supplied
Round Cable II, Flat Cable I, or Flat Cable II
Round Cable II, Flat Cable I, or Flat Cable II
Communications
power supply
Sub-trunk
line
Trunk line or
sub-trunk line
