2 - 33
2 Preparations
E5@C Digital Temperature Controllers User’s Manual (H174)
2-2 Using the Terminals
2

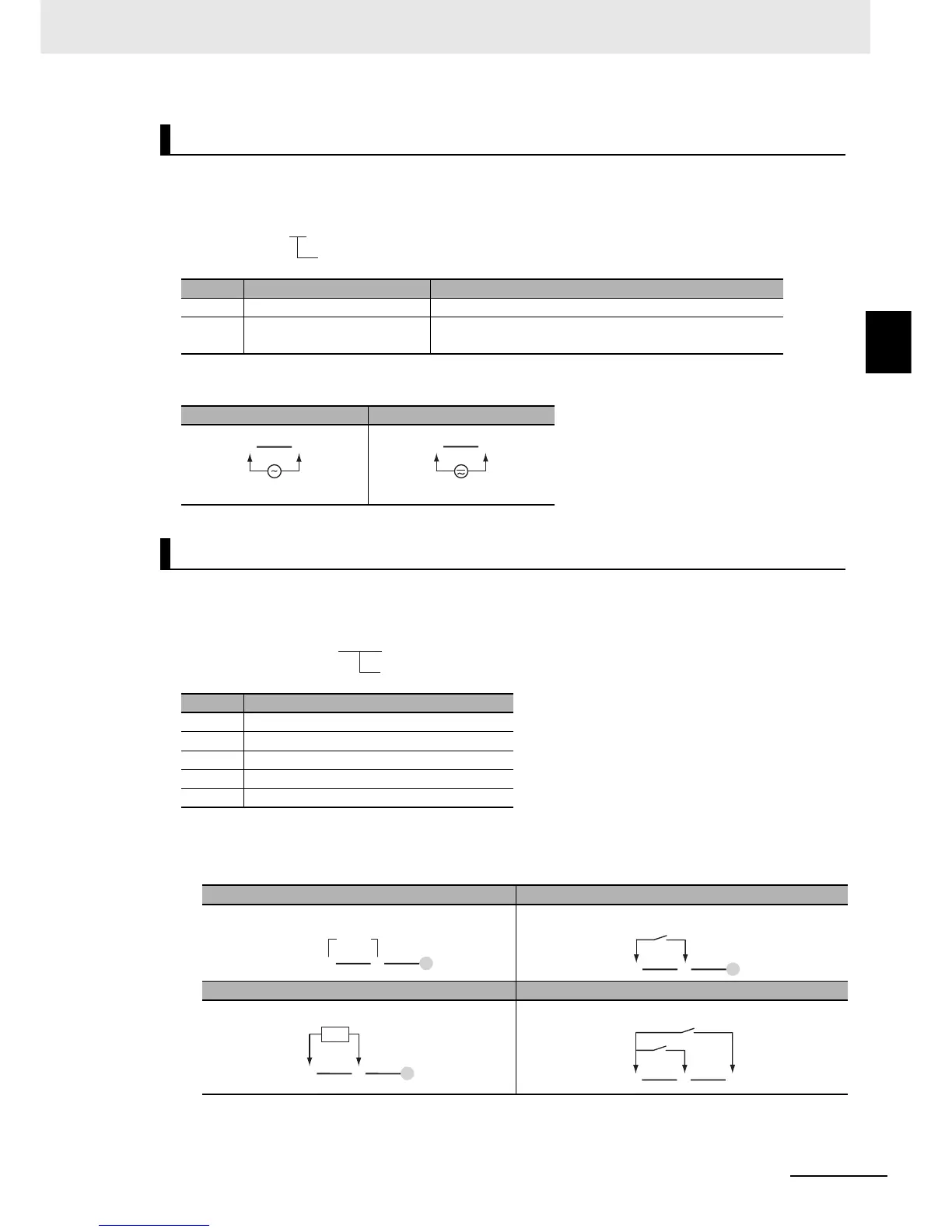

2-2-5 E5GC Terminal Block Wiring Example
z Model Numbers
The input power supply specification of the E5GC is given in the following location in the model number.
z Terminal Details
z Model Numbers
The options specification of the E5GC is given in the following location in the model number.
z Terminal Details
Do not connect anything to the terminals that are shaded gray.
* To use auxiliary output 2, connect to terminal 9.
Input Power Supply
Code Specification Power consumption
A 100 to 240 VAC (50/60 Hz) 5.9 VA max.
D 24 VAC (50/60 Hz)
24 VDC (no polarity)
3.2 VA max./1.8 W max.
100 to 240 VAC 24 VAC/DC
Options
Code Specification
000 None
015 Communications (RS-485)
016 Event input 1
023 CT1
024 Event inputs 1 and 2
015 016
023 024
E5GC-@@ @ @ @ M-@@@
Input power supply
B
A
BA
(no polarity)
E5GC-@@ @ @ @ M-@@@
Options
HG I
B(+) A(−)
RS-485
Communications
*
HG I
+−
EV1
Event input
*
HG I
CT1
*
HG I
++−
EV1
EV2
Event input
