Omron E5CC-800 User Manual

2 - 7
2 Preparations
Digital Temperature Controllers (Simple Type) User’s Manual (H211)
2-2 Using the Terminals
2

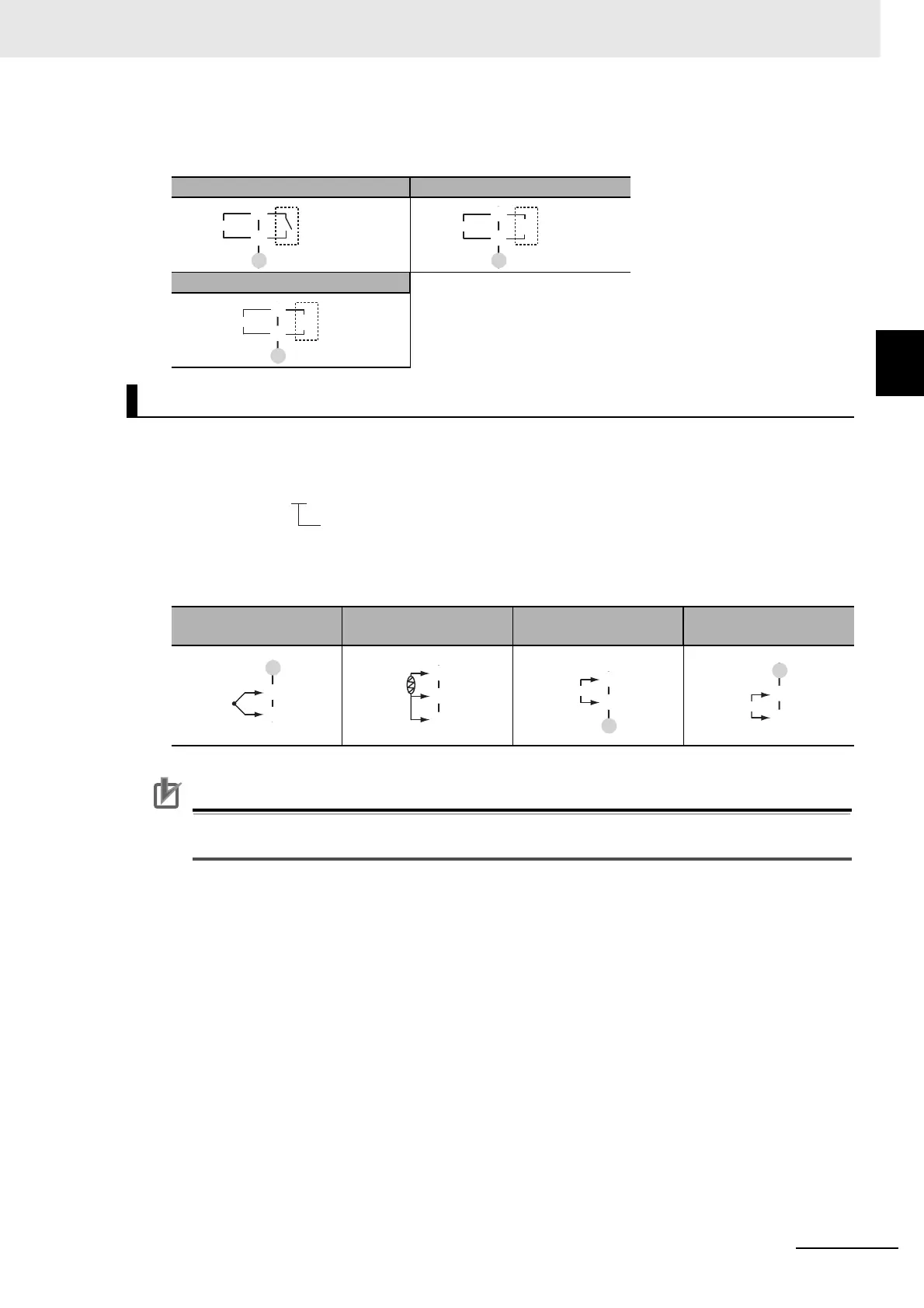

2-2-1 E5CC Terminal Block Wiring Example
z Terminal Details
Do not connect anything to the terminals that are shaded gray.
z Model Numbers
All E5CC models have universal sensor inputs, so the code in the model number is always “M.”
z Terminal Details
Do not connect anything to the terminals that are shaded gray.
Precautions for Correct Use
When complying with EMC standards, the line connecting the sensor must be 30 m or less. If the
cable length exceeds 30 m, compliance with EMC standards will not be possible.
RX QX
CX
Sensor Input
TC (thermocouple)
Pt (resistance
thermometer)
I (current) V (voltage)
A
C
B
Relay output
Control output 1
A
C
B
+
−
Control output 1
Voltage output
(for driving SSR)
A
C
B
+
−
Control output 1
Current output
E5CC-@@ 2 @ S M-8@@
Sensor input
D
F
E
−
+
E
D
F
A
B
B
+
−
E
D
F
mA
+
−
E
D
F
V

Omron E5CC-800 Specifications

General

Communication	RS-485 (optional)
Protection Rating	IP66 (front panel)
Input Type	Thermocouple, RTD, analog input
Output Type	Relay, voltage, current
Supply Voltage	100-240 VAC, 24 VAC/VDC
Size	48 x 48 mm
Control Output	Relay, voltage, current
Ambient Operating Temperature	55 °C
Control Method	ON/OFF, 2-PID
Ambient Operating Humidity	35 to 85% RH (non-condensing)
Mounting	Panel mount
