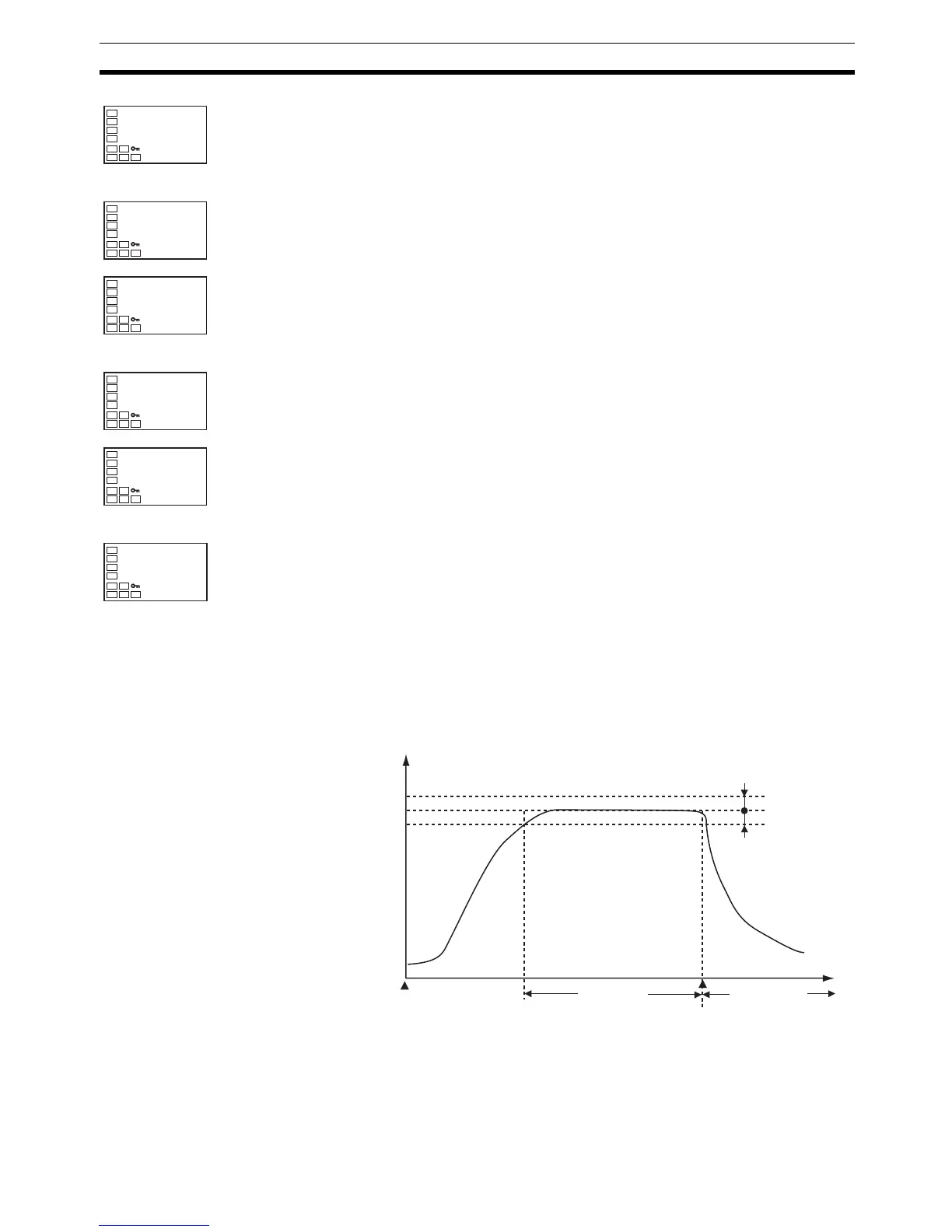

Using the Simple Program Function Section 4-15

4-15 Using the Simple Program Function

4-15-1 Simple Program Function

• The simple program function can be used for the following type of control.

3. Press the U Key to select sp (set point).

Initial Setting Level

4. Select the Transfer Output Upper Limit parameter by pressing the M Key.

5. Use the D Key to set the parameter to 200. The default is 1300.

Initial Setting Level

6. Select the Transfer Output Lower Limit parameter by pressing the M Key.

7. Use the U Key to set the parameter to

−50. The default is −200.

Operation Level

8. To return to the operation level, press the O Key for at least one second.

tr-t

tr-h

1300

Transfer Output

Upper Limit

tr-h

200

tr-l

-200

Transfer Output

Lower Limit

tr-l

-50

100

PV/SP

RSET → STRT

Set point

Wait band

Soak time END display

END output

Select either

STOP or RUN.
