Using the Support Software Port Section 2-3
2-3 Using the Support Software Port
Use the communications port for Support Software to connect the personal
computer to the Temperature Controller when using EST2-2C-MV4 CX-
Thermo or a version of CX-Thermo higher than 4.00, or other Support Soft-
ware. The E58-CIFQ1 USB-Serial Conversion Cable is required to make the
connection.
For information concerning the models that can be used with CX-Thermo,
contact your OMRON sales representative.
Procedure Use the following procedure to connect the Temperature Controller to the per-
sonal computer using the USB-Serial Conversion Cable. The USB-Serial
Conversion Cable is used to communicate with the COM port of the personal
computer. To perform communications using USB-Serial Conversion Cable,
set the communications port (COM port) number to be used for the software
to the COM port assigned to the Cable.
1,2,3... 1. Turn ON the power to the Temperature Controller.
Note If the Cable is connected when the power to the Temperature Con-
troller is OFF, power will be supplied from the personal computer
and impose a load on the internal circuits of the Temperature Con-
troller.
2. Connect the Cable.
Connect the personal computer’s USB port with the Support Software port
on the Temperature Controller using the Cable.

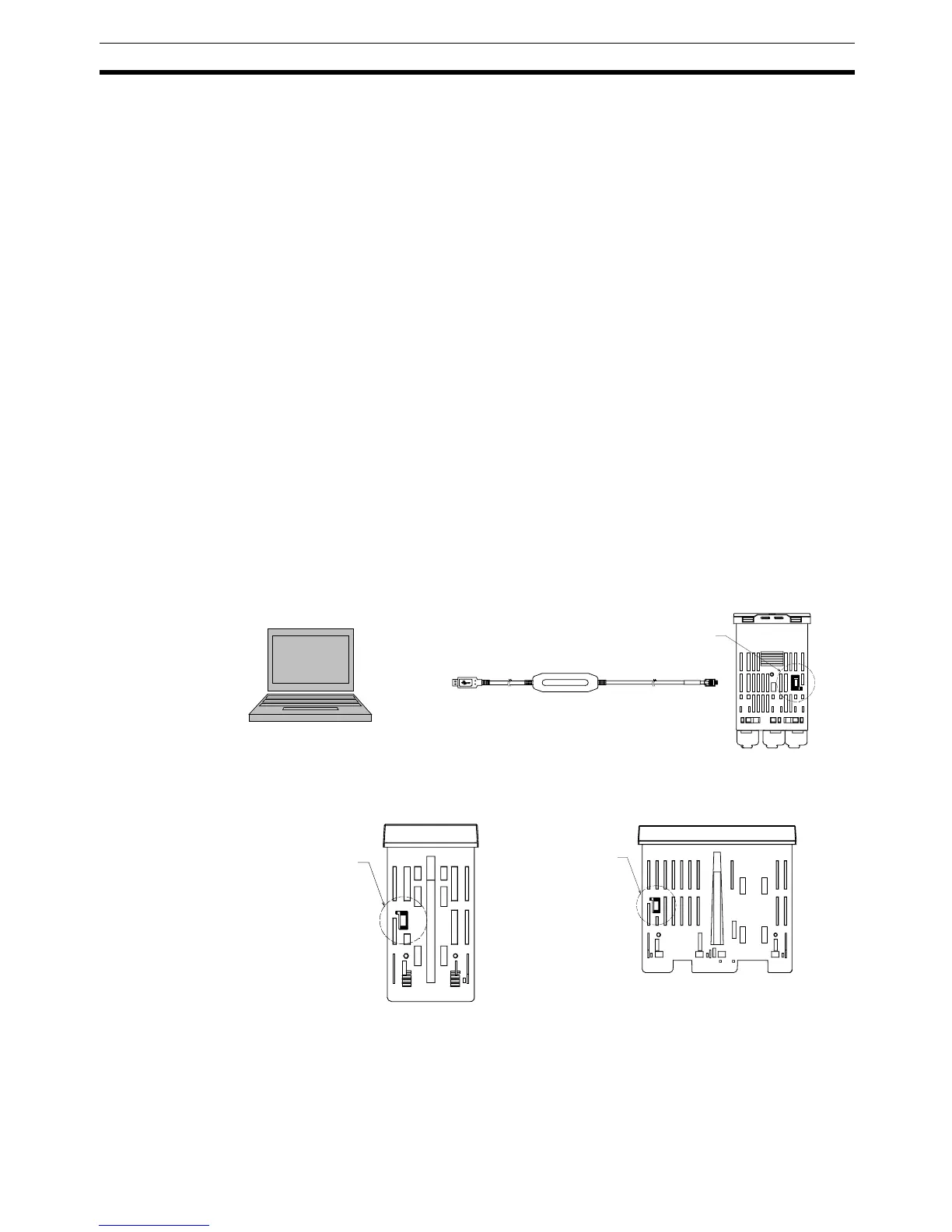

• Temperature Controller Connection Method
Note Hold the connector when inserting or disconnecting the Cable.
3. Install the driver.
Install the driver to enable the Cable to be used with the personal comput-
er.
E5CN/CN-U
E5ANE5EN
Personal computer's USB port
Communications port
for Support Software
Communications port
for Support Software
Communications port
for Support Software
Bottom view of E5EN
Bottom view of E5CN
Bottom view of E5AN
