Appendix

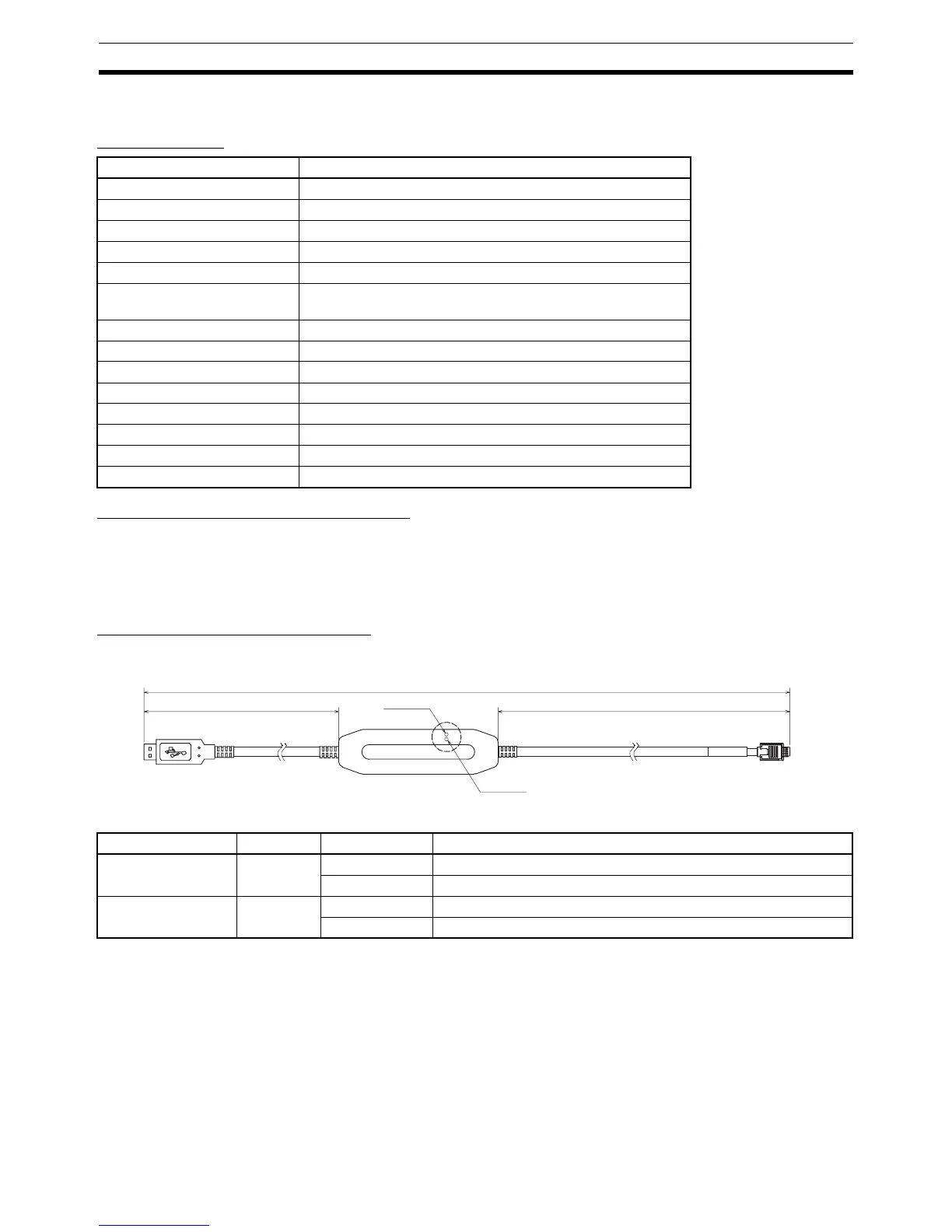

E58-CIFQ1 USB-Serial Conversion Cable
Specifications
Compatible Operating Environment
A personal computer that includes the following specifications is required.
• USB port
• CD-ROM drive
• Windows 2000/XP/Vista
Appearance and Nomenclature
Appearance
LED Indicator Display
Item Specifications
Applicable OS Windows 2000/XP/Vista
Applicable software CX-Thermo
Applicable models OMRON E5CN/CN-U Digital Temperature Controllers
USB interface rating Conforms to USB Specification 1.1
DTE speed 38,400 bps
Connector specifications Computer end: USB (type A plug)
Temperature Controller end: Serial
Power supply Bus power (5 VDC supplied from USB host controller)
Current consumption 70 mA
Ambient operating temperature 0 to 55°C (with no condensation or icing)
Ambient operating humidity 10% to 80%
Storage temperature −20 to 60°C (with no condensation or icing)
Storage humidity 10% to 80%
Altitude 2,000 m max.
Weight Approx. 100 g
250 mm
LED (SD)
(2,100 mm)
LED (RD)
USB connector (type A plug)
1,765 mm
Serial connector
Indicator Color Status Meaning
SD Yellow Lit Sending data from USB-Serial Conversion Cable
Not lit Not sending data from USB-Serial Conversion Cable
RD Yellow Lit Receiving data from the USB-Serial Conversion Cable
Not lit Not receiving data from the USB-Serial Conversion Cable
