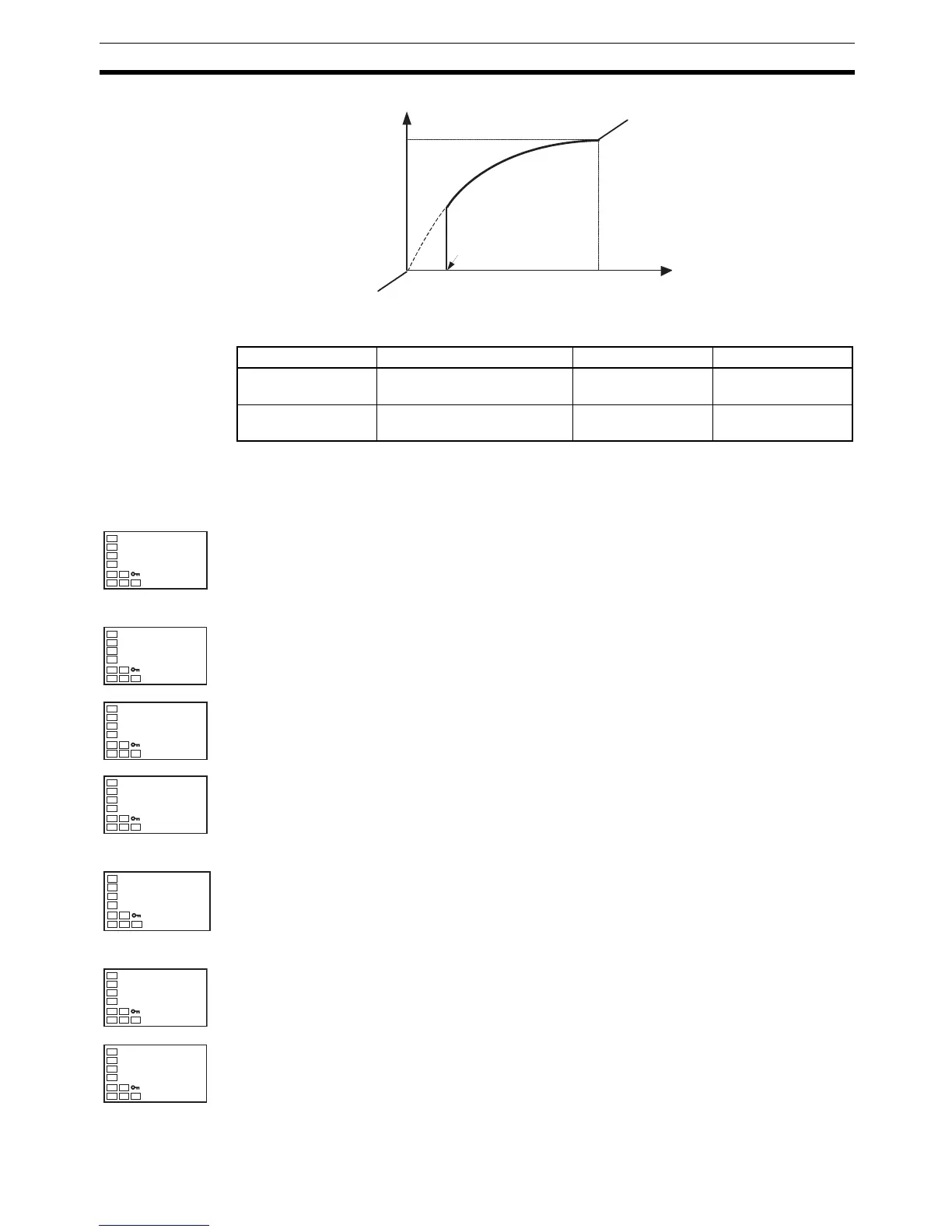

Using the Extraction of Square Root Parameter Section 4-17
Operating Procedure This procedure sets the Extraction of Square Root Low-cut Point parameter to
10.0%.
Argument 1 (Input Data)
Extraction of
square root
100% FS
100% FS0
Extraction of square
root low-cut point
Parameter name Setting rage Unit Default
Extraction of Square
Root Enable
OFF: Disabled, ON: Enabled --- OFF
Extraction of Square
Root Low-cut Point
0.0 to 100.0 % 0.0
Operation Level
Initial Setting Level
1. Press the O Key for at least three seconds to move from the operation
level to the initial setting level.
2. Press the M Key to select the Extraction of Square Root Enable param-
eter.
3. Use the U Key to select ON.
Operation Level
4. Press the O Key for at least one second to move from the initial setting
level to the operation level.
Adjustment Level
5. Press the O Key to move from the operation level to the adjustment level.
6. Select the Extraction of Square Root Low-cut Point parameter by press-
ing the M Key.
C
25
100
PV/SP
in-t
0
Input Type
sqr
off
Extraction
of Square
Root Enable
sqr
on
Extraction
of Square
Root Enable
C
25
100
PV/SP
l.adj
sqrp
0.0
Extraction of
Square Root
Low-cut Point
