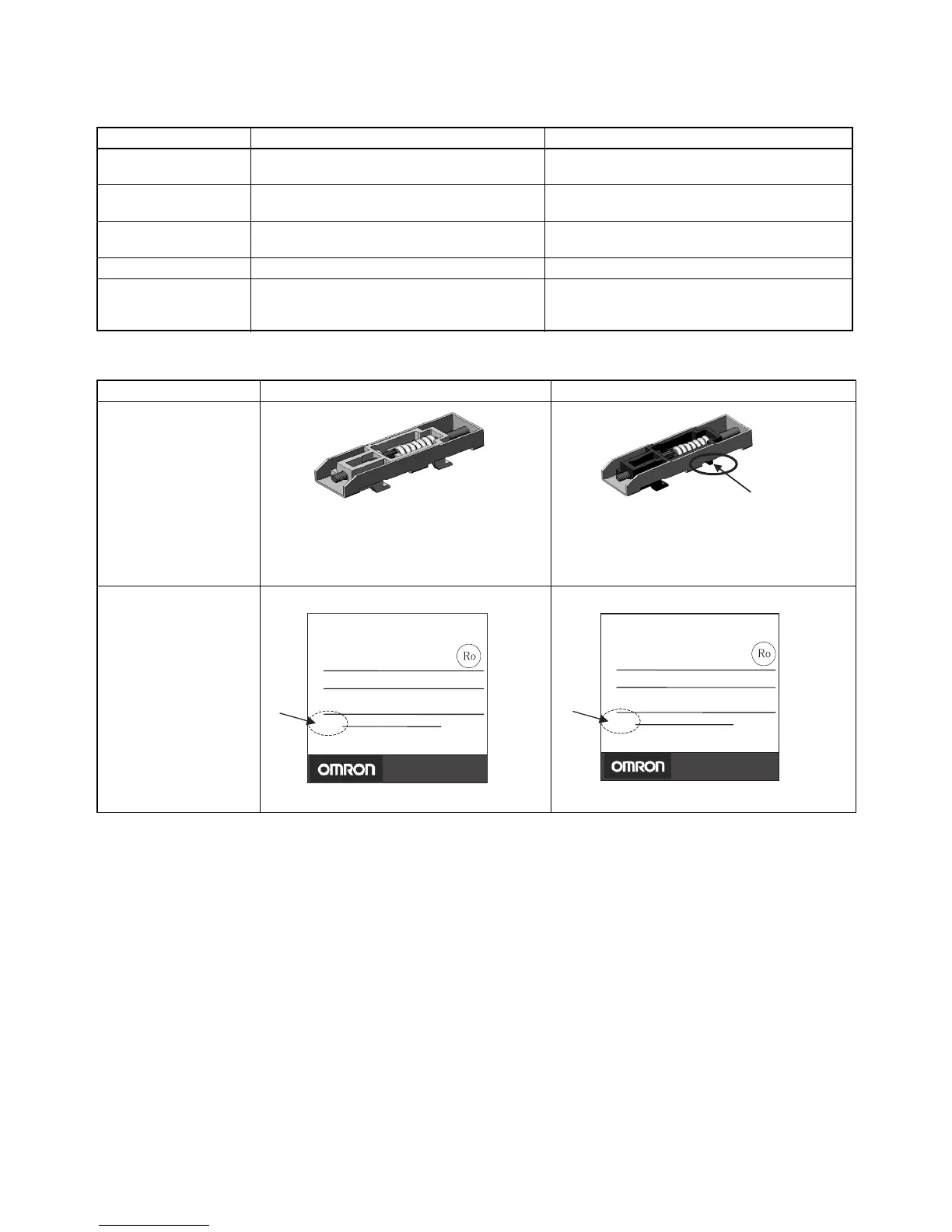

■ Communications Characteristics
■ Other Upgrades
Previous models Upgraded models
Communications
access size
Double word access only Word access and double word access
CompoWay/F services --- Composite Read from Variable Area and Com-
posite Write to Variable Area
Communications buffer
size
40 bytes 217 bytes
Baud rate 38.4 kbits/s max. 57.6 kbits/s max.
External communica-
tions
RS-485/RS-232C external communications
and Setup Tool communications cannot be
used at the same time.
RS-485/RS-232C external communications and
Setup Tool communications can be used at the
same time.
Previous models Upgraded models
Mounting Bracket
(E5AN/EN only)
Note The Mounting Bracket for the previous
models cannot be used for upgraded
models.
Packing case
(E5AN/EN only)
• Previous ID code: N5 • New ID code: N6
Mounting Bracket for previous models
Mounting Bracket for upgraded models
Modified section
TYPE
E5CN T
TEMP.
MULTI- RANGE
VOLTS
100- 240 VAC
N5 LOT No.**** QYT.1
TYPE E5AN-R3MT-500
TEMPERATURE CONTROLLER
TEMP.
MULTI-RANGE
VOLTS
100-240 VAC
OMRON Corporation MADE IN CHINA
N5
LOT No.∗∗∗∗ QYT.1
TYPE
E5CN-R2T
TEMP.
MULT I- RANGE
VOLTS
100- 240 VAC
OMRON Corporation MADE IN CHIN
N6 LOT No.**** QYT.1
TYPE E5AN-R3MT-500-N
TEMP.
MULTI-RANGE
VOLTS
100-240 VAC
OMRON Corporation MADE IN CHINA
N6
LOT No.∗∗∗∗ QYT.1
TEMPERATURE CONTROLLER

Omron E5CN Specifications

General

Communication	RS-485 (optional)
Mounting	Panel Mount
Control Method	ON/OFF
Input Type	Thermocouple, RTD
Supply Voltage	100 to 240 VAC
Output Type	Relay, Voltage (for driving SSR), Current
Display Type	7-segment LED
Size	48 x 48 mm
Control Output	Relay, Voltage (for driving SSR), Current
Alarm Output	1 or 2 outputs
Dimensions	48 x 48 x 78 mm
Ambient Operating Temperature	-10 to 55°C
Protection Rating	IP66
