Omron E5CN User Manual

xxii
How to Read Display Symbols

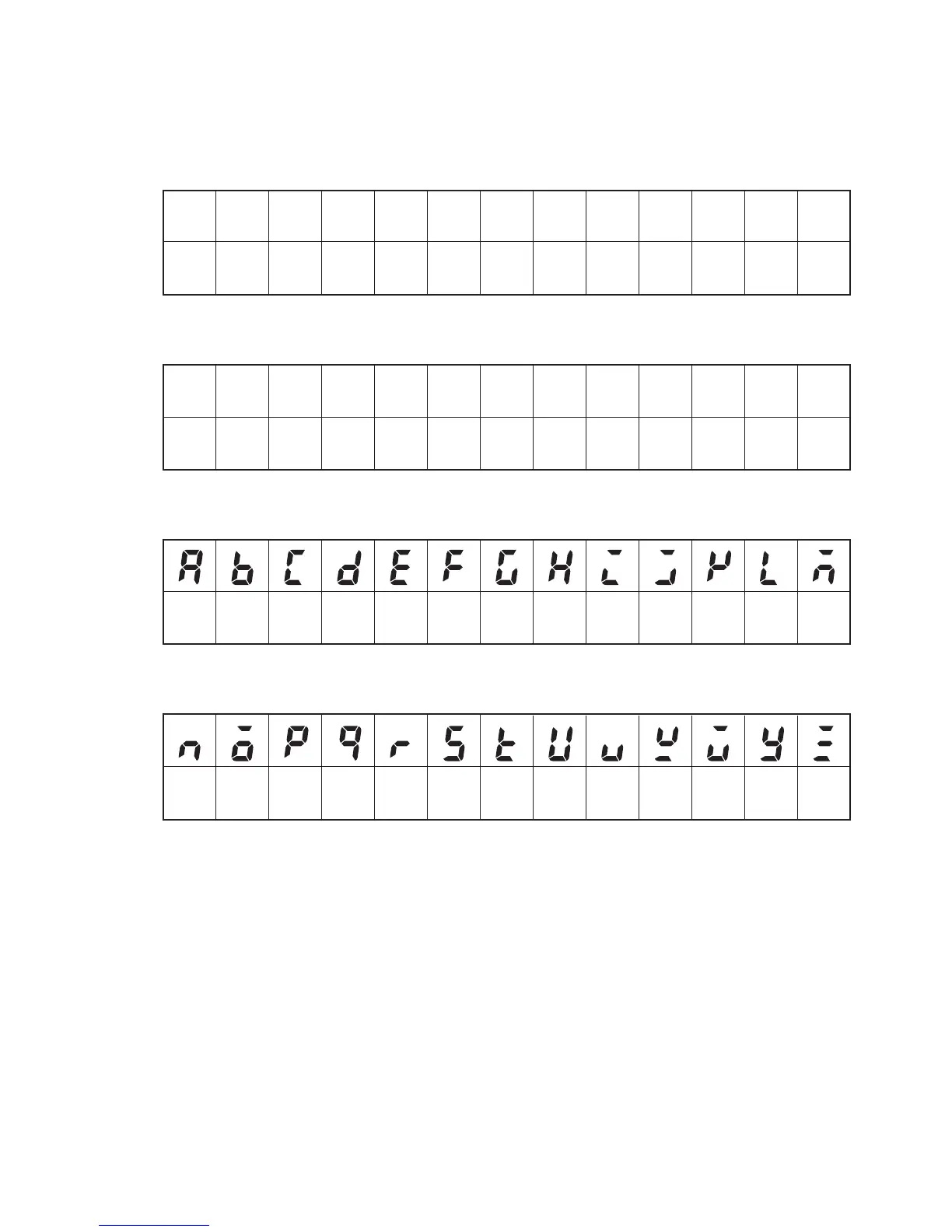

The following tables show the correspondence between the symbols displayed on the displays and
alphabet characters. The default is for 11-segment displays.
The Character Select parameter in the advanced function setting level can be turned OFF to display
the following 7-segment characters. (Refer to page 224.)
ABCDEFG
H
IJKL
M
NO
P
Q
RS T UVWX Y Z
abcdefghijklm
nopqrstuvwxyz
ABCDEFGH I JKLM
NOPQRSTUVWXYZ

Omron E5CN Specifications

General

Communication	RS-485 (optional)
Mounting	Panel Mount
Control Method	ON/OFF
Input Type	Thermocouple, RTD
Supply Voltage	100 to 240 VAC
Output Type	Relay, Voltage (for driving SSR), Current
Display Type	7-segment LED
Size	48 x 48 mm
Control Output	Relay, Voltage (for driving SSR), Current
Alarm Output	1 or 2 outputs
Dimensions	48 x 48 x 78 mm
Ambient Operating Temperature	-10 to 55°C
Protection Rating	IP66
