Omron E5CN User Manual

24
Installation Section 2-1
3. When inserting the body of the Temperature Controller into the case, make
sure the PCBs are parallel to each other, make sure that the sealing rubber
is in place, and press the E5AN/EN toward the rear case until it snaps into
position. While pressing the E5AN/EN into place, press down on the hooks
on the top and bottom surfaces of the rear case so that the hooks securely
lock in place. Make sure that electronic components do not come into con-
tact with the case.

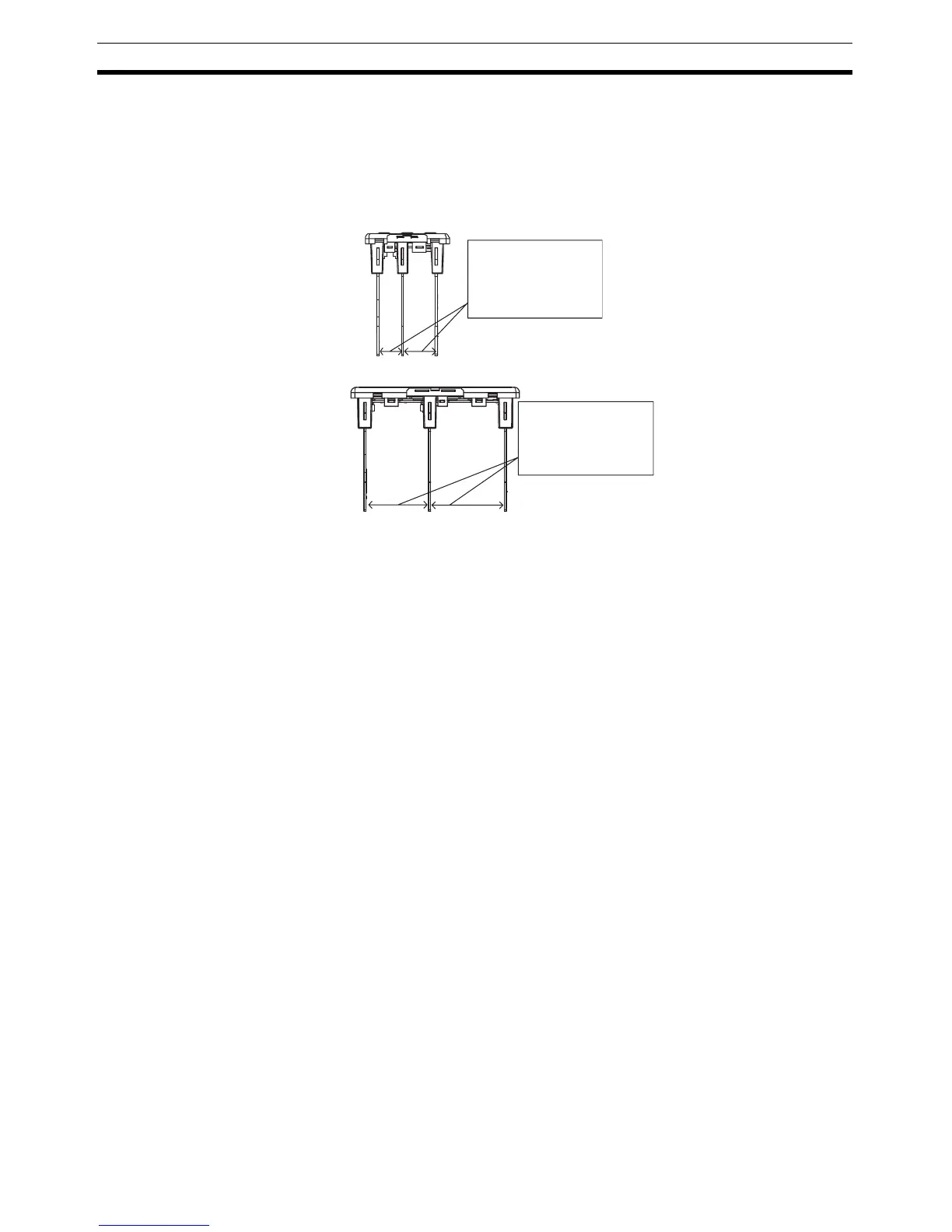

Make sure the PCBs are
parallel to each other, and
then press the body of the
Temperature Controller
toward the rear case until
it snaps into position.
Bottom View of the E5EN
Make sure the PCBs are
parallel to each other, and
then press the body of the
Temperature Controller
toward the rear case until
it snaps into position.
Bottom View of the E5AN

Omron E5CN Specifications

General

Communication	RS-485 (optional)
Mounting	Panel Mount
Control Method	ON/OFF
Input Type	Thermocouple, RTD
Supply Voltage	100 to 240 VAC
Output Type	Relay, Voltage (for driving SSR), Current
Display Type	7-segment LED
Size	48 x 48 mm
Control Output	Relay, Voltage (for driving SSR), Current
Alarm Output	1 or 2 outputs
Dimensions	48 x 48 x 78 mm
Ambient Operating Temperature	-10 to 55°C
Protection Rating	IP66
