7 Digital I/O Slave Unit
7 - 50
GX-series EtherCA
T Slave Unit User
’s Manual
GX-OD1618 (NPN)
GX-OD1628 (PNP)

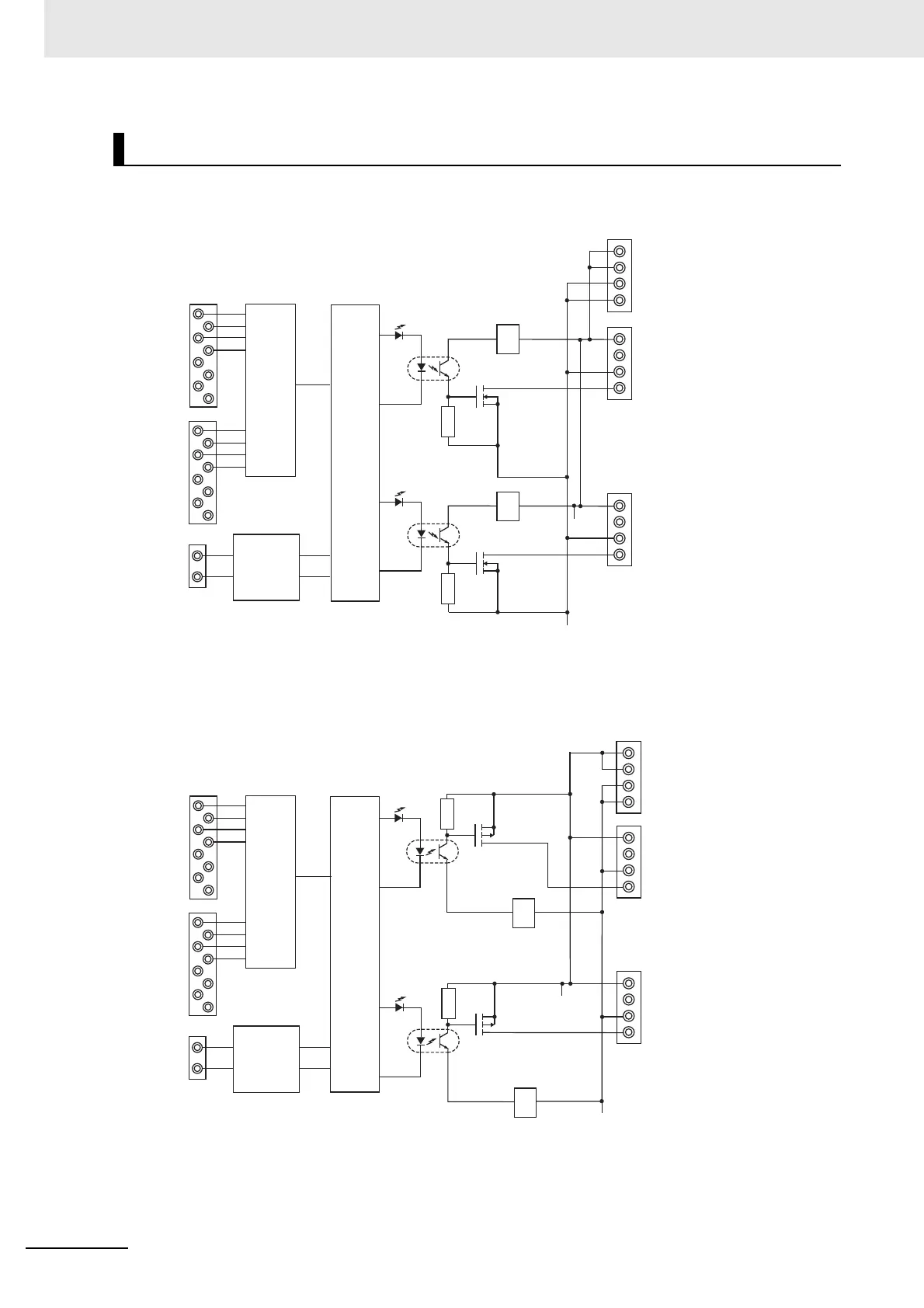

Internal circuits diagram
