7-5 Mounting Dimensions
7
7-5-1 2-tier Terminal Block Type
7-5 Mounting Dimensions

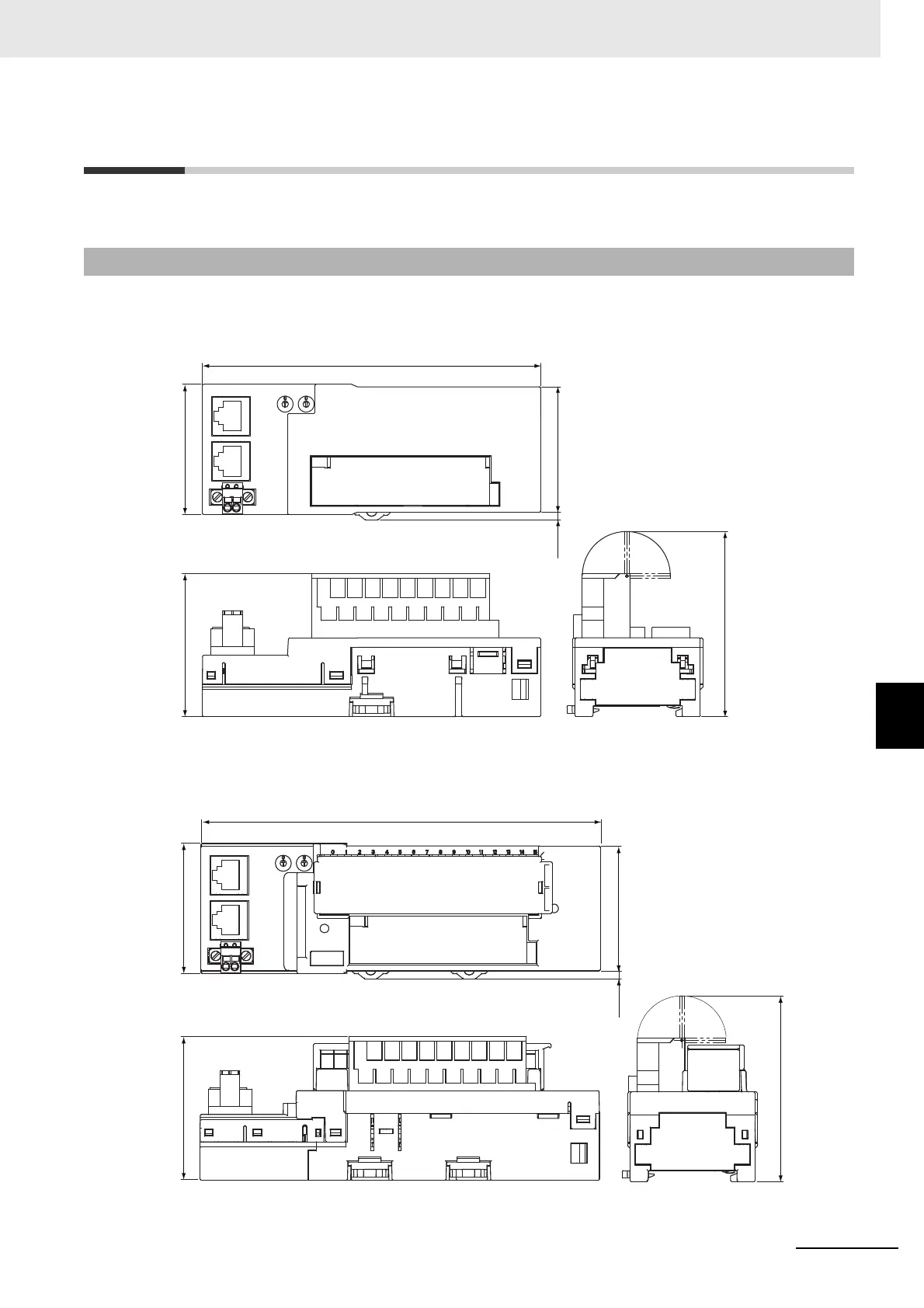

The mounting dimensions of a Digital I/O Slave Unit are shown below.
 GX-ID1611/ID1621/OD1611/OD1621
 GX-OC1601
7-5-1 2-tier Terminal Block Type
73.9
57.1
50
135
52
3.14
(mm)
74.4
57.6
50
160
52
3.14
(mm)
