8 - 13
8 Analog I/O Slave Unit
GX-series EtherCAT Slave Unit User’s Manual
8-4 Overview of the Analog Output Slave Unit
8

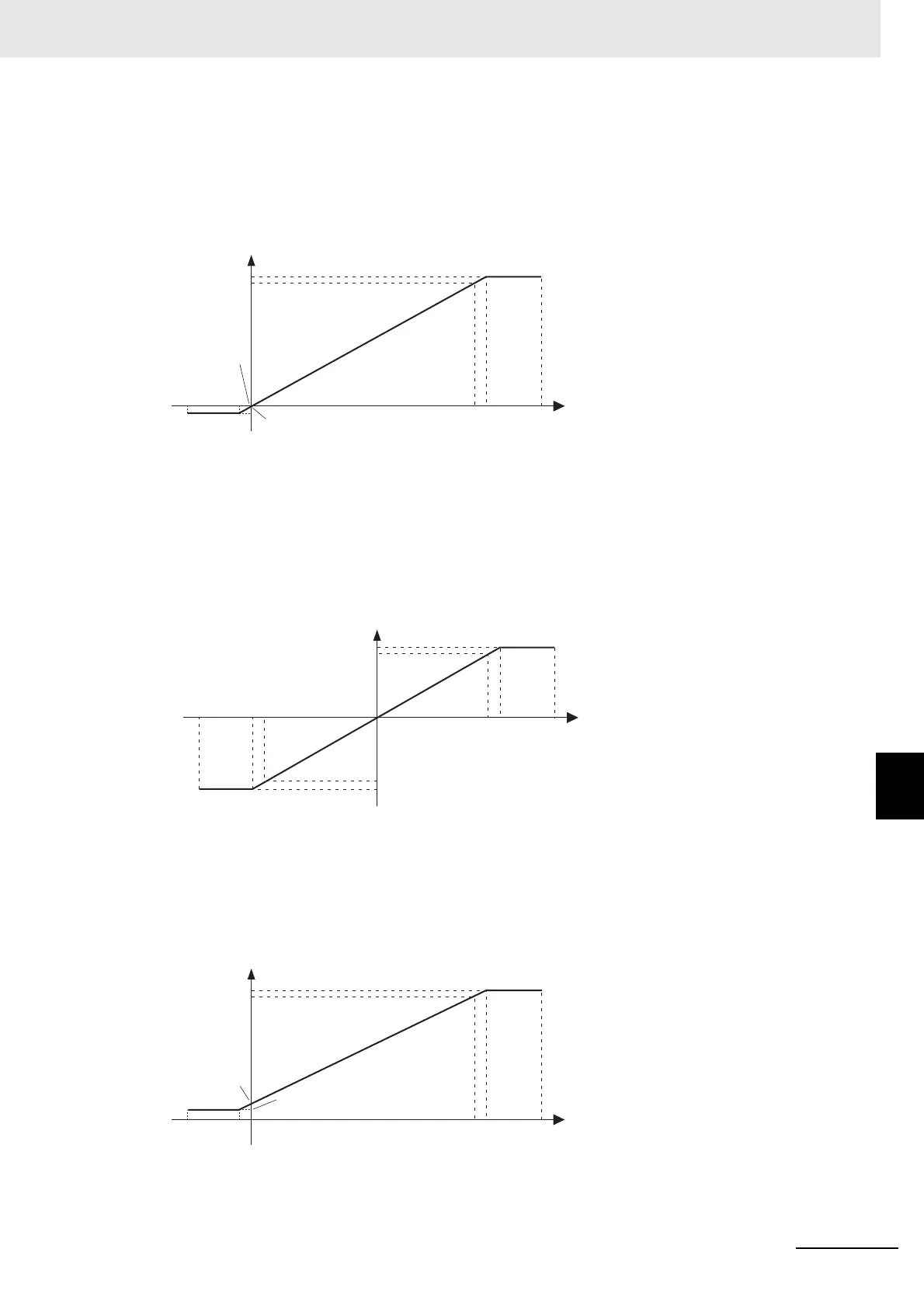

8-4-1 Output Range and Converted Data
 Output range 0 to 10 V
Data from 0000 to 1F40 hex (0 to 8000) is converted to voltage from 0 to 10 V and output.
The output data range for which conversion is possible is FE70 to 20D0 hex (−400 to +8400) and
here the output data is −0.5 to +10.5 V.
 Output range −10 to +10 V
Data from F060 to 0FA0 hex (−4000 to +4000) is converted to voltage from −10 to +10 V and output.
The output data range for which conversion is possible is EED0 to 1130 hex (−4400 to +4400) and
here the output data is −11 to +11 V.
Negative voltages are specified as two's complements (hexadecimal).
 Output range 4 to 20 mA
Data from 0000 to 1F40 hex (0 to 8000) is converted to voltage from 4 to 20 mA and output.
The output data range for which conversion is possible is FE70 to 20D0 hex (−400 to +8400) and
here the output data is 3.2 to 20.8 mA.
FE70
(−400)
0 V
−0.5 V
10.5 V
10 V
8000
7FFF
0000 (0)
Converted data
Hexadecimal (decimal)
Voltage
20D01F40
(8000)
(8400)
0 V
11 V
10 V
-10 V
-11 V
8000
7FFF
0000 (0)
Converted data
Hexadecimal (decimal)
Voltage
11300FA0
(4000)
(4400)
F060EED0
( −4400 )( −4000 )
4 mA
0 mA
3.2mA
20.8 mA
20 mA
8000
7FFF
0000 (0)
Converted data
Hexadecimal (decimal)
Current
20D01F40
(8000)
(8400)
FE70
( −4 00)
