9 - 25
9 Encoder Input Slave Unit
GX-series EtherCAT Slave Unit User’s Manual
9-4 Specifications for Each Slave Unit
9
9-4-2 Line Driver Input Type GX-EC0241
 Latch/reset input specifications

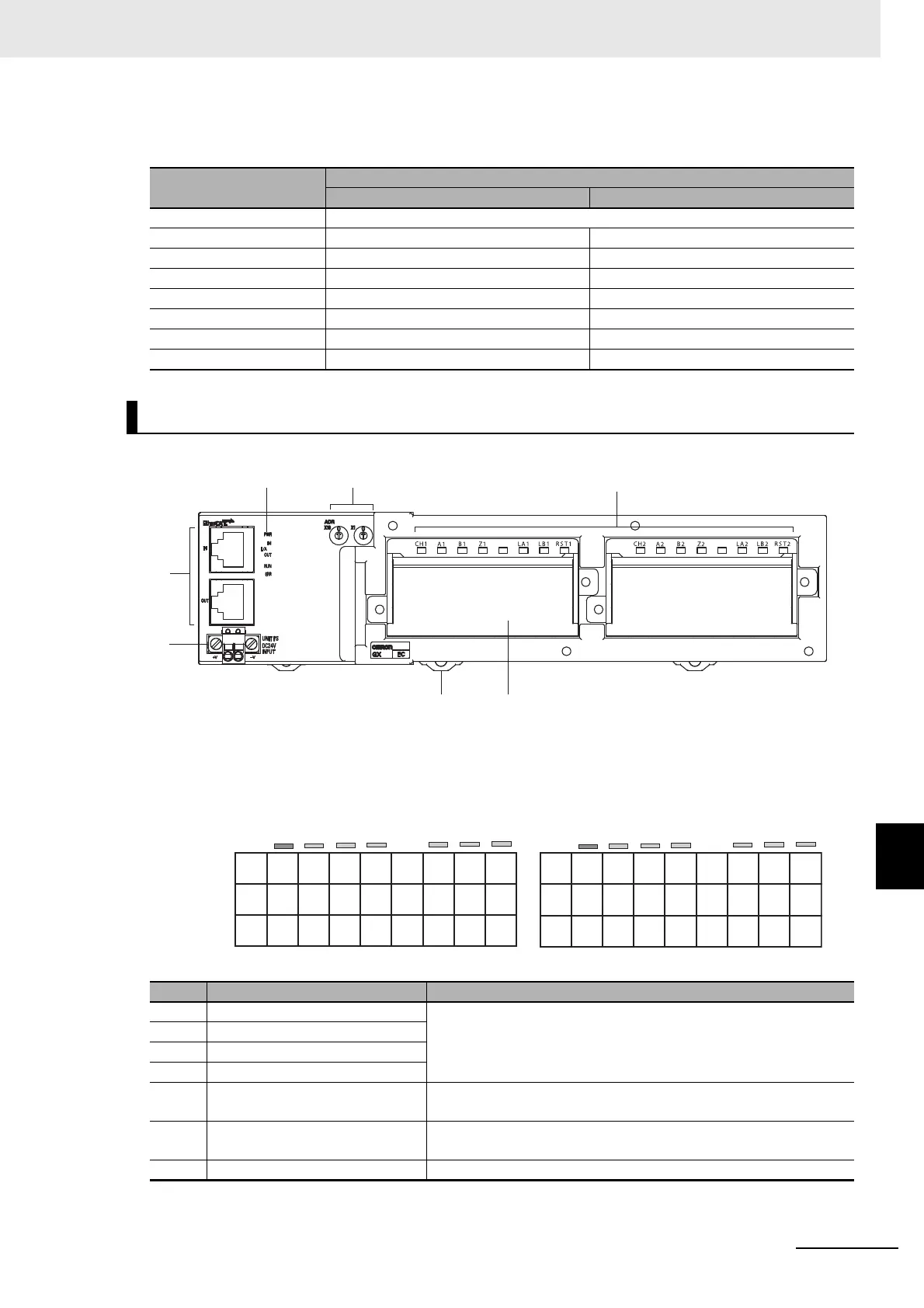

 Terminal/input display LED layout diagram
Item
Specification
Latch input (A/B) Reset input
Internal I/O common PNP
Input voltage 20.4 to 26.4 VDC (24 VDC −15 to +10%) 20.4 to 26.4 VDC (24 VDC −15 to +10%)
Input impedance 4.0 kΩ 3.3 kΩ
Input current 5.5 mA (at 24 VDC) 7 mA (at 24 VDC)
ON voltage/ON current 17.4 VDC min./3 mA min. 14.4 VDC min./3 mA min.
OFF voltage/OFF current 5 VDC max./1 mA max. 5 VDC max./1 mA max.
ON response time 3 μs max. 15 μs max.
OFF response time 3 μs max. 90 μs max.
Names and Functions
No. Name Function
(1) Communications connectors
Refer to "6-3 Specifications of Common Areas" Page 6 - 4.
(2) Unit power supply connector
(3) Status indicators
(4) Node address switches
(5) Input indicators
The indicators show the status of the inputs of each channel.
For details, refer to the next section "Input indicators".
(6) Terminal block
Connects external devices and the I/O power supply.
For details, refer to the next section "Terminal block".
(7) DIN track mounting hook Fixes a Slave Unit to a DIN track.
(1)
(2)
(3)
(4)
(5)
(6)(7)
10 to 18
1 to 9
19 to 27
LB1
RSV
RSV RSV
RSV
V1 V1
RST1
V1 V1 V1 V1
G1 G1 G1 G1 G1 G1
RSV
RSV
LA1
CH1
A1
B1 Z1
LA1
LB1 RST1
CH1
CH2
RSV
RSV RSV
A+
A
−
B
−
Z
−
B+ Z+A+
A
−
B
−
Z
−
B+ Z+
LB2
RSV
V1 V1
RST2
V1 V1 V1 V1
G1 G1 G1 G1 G1 G1
RSV
RSV
LA2
CH2
A2
B2 Z2
LA2
LB2 RST2
