4 Installation and Wiring
4 - 10
GX-series EtherCAT Slave Unit User’s Manual
 Recommended product
The following pin terminals are recommended for the unit power supply cables.
Also, the following screwdriver is recommended for removing pin terminals.
Supply the Unit power supply and the I/O power supply through the same power supply connector.
(Notes) Supply the Unit power supply and the I/O power supply from separate sources.
An M12 connector (A-coding, male) is used for the power supply connector.
The Unit power supply specifications are given below.

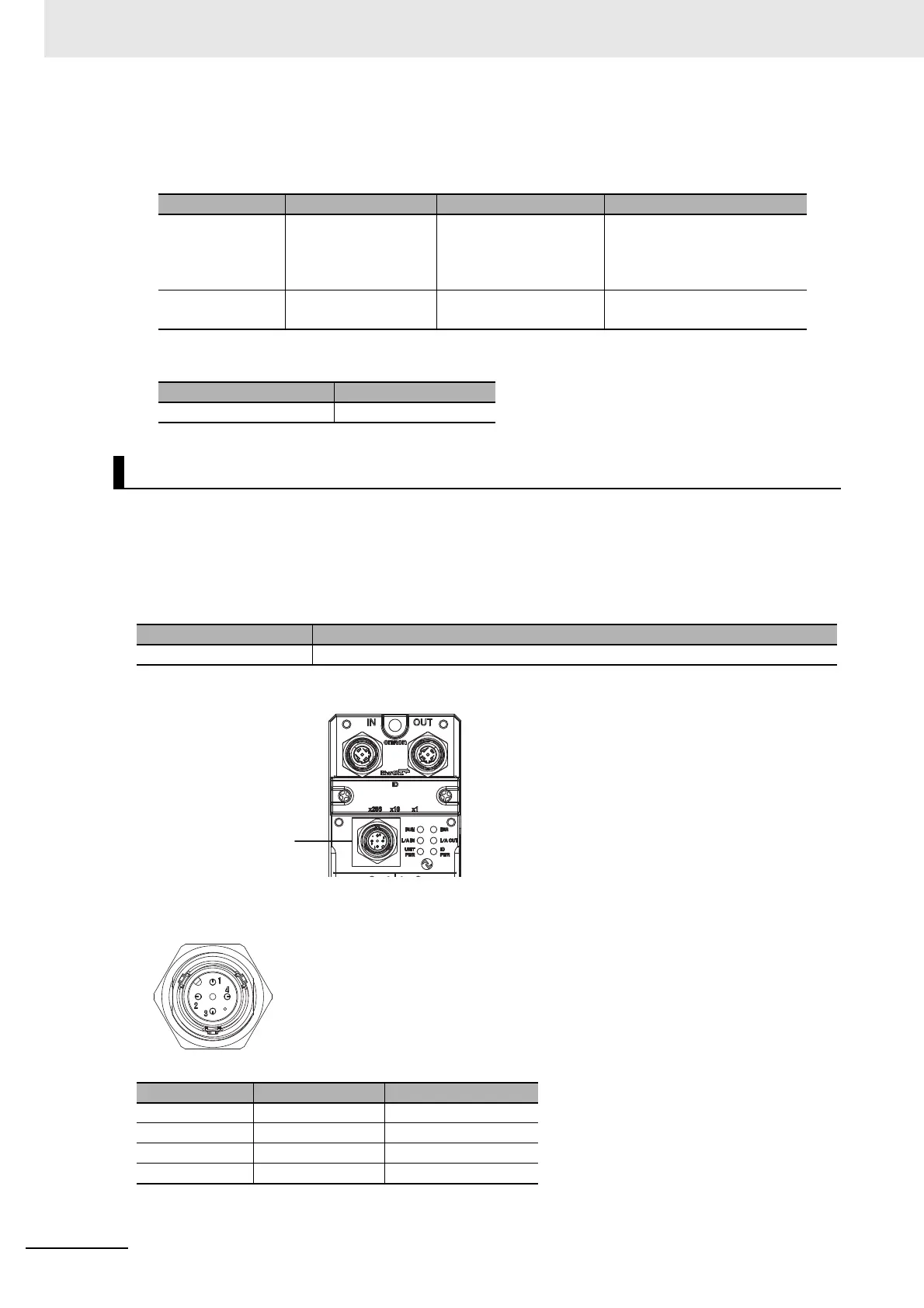

 Power Supply Connector
Model Applicable wire size Crimping tool Manufacturer
AI0,5-10WH 0.5 mm/AWG20
CRIMPFOX UD6
(Product No. 1204436)
or CRIMPFOX ZA3
series
Phoenix Contact
Co., Ltd.
H0.5/16 orange 0.5 mm/AWG20
Crimper PZ1.5
(Product No. 900599)
Weidmueller Japan Co., Ltd.
Model Manufacturer
XW4Z-00C OMRON
IO-Link Master Unit
Item Specification
Unit power supply voltage 20.4 to 26.4 VDC (24 VDC −15%/+10%)
Pin No. Signal Description
1 UNT_P+ Unit power supply +
2 UNT_P− Unit power supply −
3 IO_P+ I/O power supply +
4IO_P− I/O power supply −
Power supply connector
GX-ILM08C
