6 Basic Specifications of Slave Units

6 - 12

GX-series EtherCAT Slave Unit User’s Manual

Supply the Unit power supply and the I/O power supply through the same power supply connector.

(Notes) Supply the Unit power supply and the I/O power supply from separate sources.

An M12 connector (A-coding, male) is used for the power supply connector.

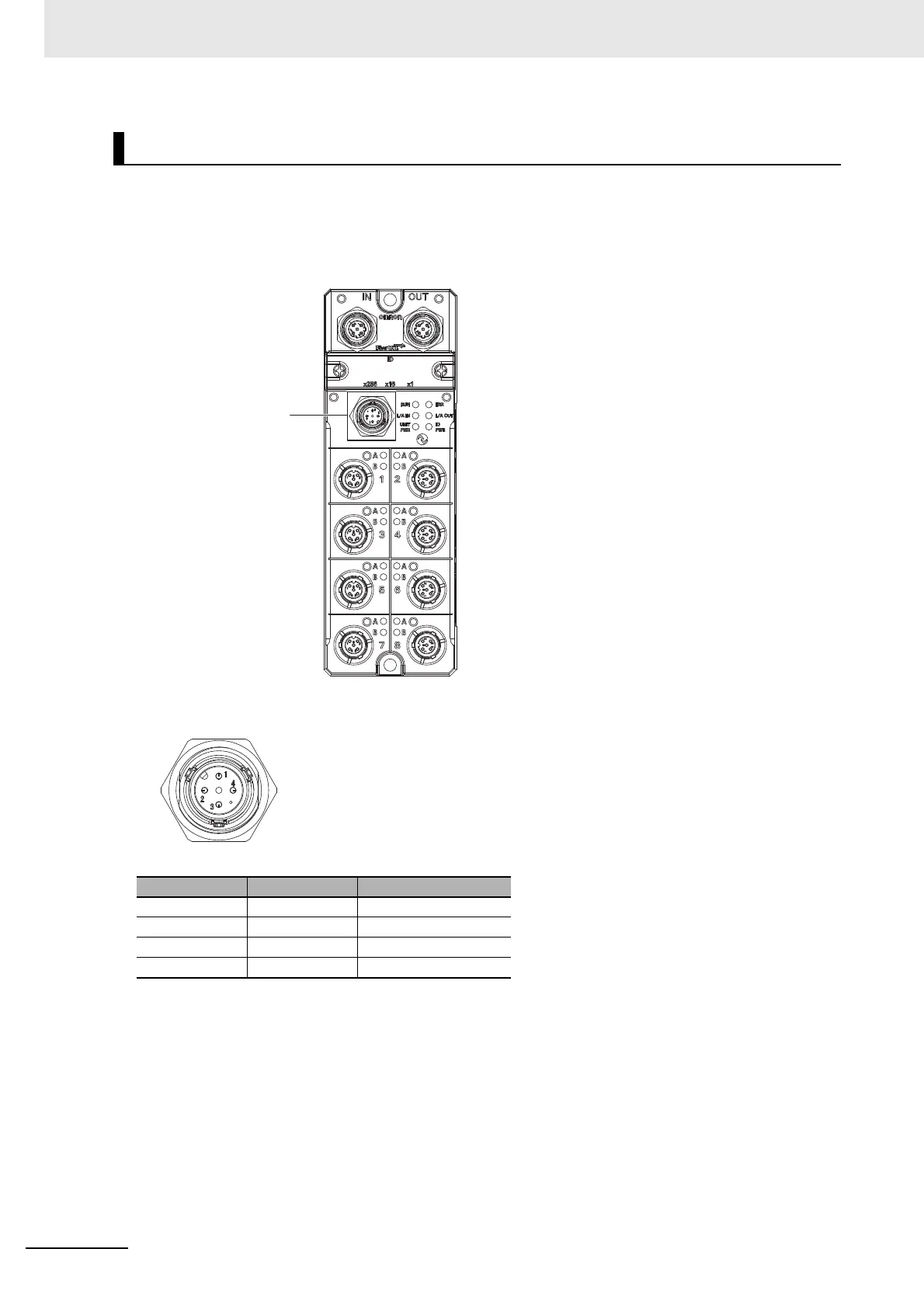

 Power Supply Connector

IO-Link Master Unit

Pin No. Signal Description

1 UNT_P+ Unit power supply +

2 UNT_P− Unit power supply −

3 IO_P+ I/O power supply +

4IO_P− I/O power supply −

Power supply connector

GX-ILM08C
