3 Functions of NB-Designer
NB-series Programmable Terminals NB-Designer Operation Manual(V106)
3-5 Basic Design Method
3
3-5-6 Bitmap
Use of Bitmap
1

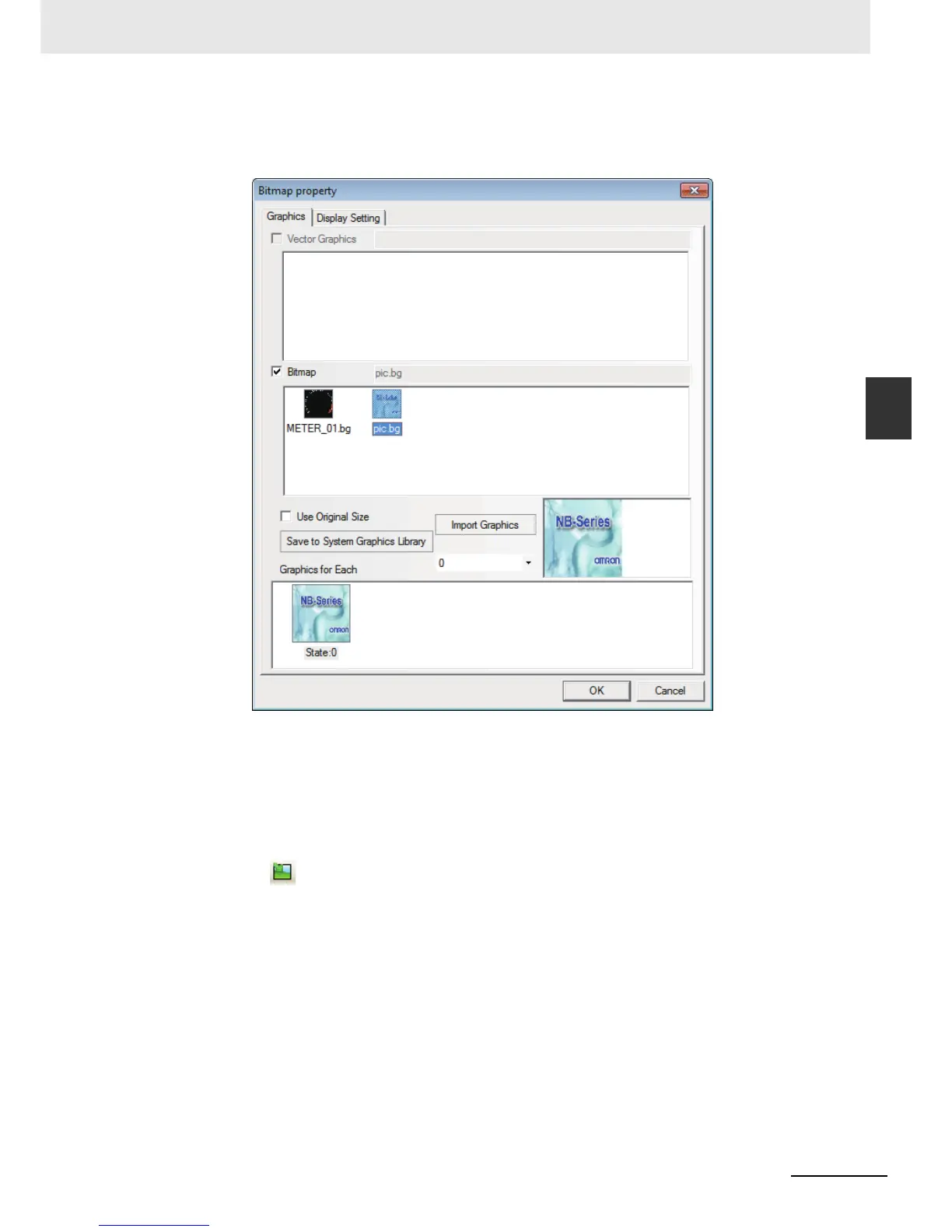

Double-click the component where the bitmap will be used and then enter “Graphics” tab.
2
Check “Bitmap” option, and select the bitmap you want to use, then click “OK” button to close
the dialog box.
Import of Bitmap
1
You can import the bitmap just like importing the Vector Graphics. Click “Import Graphics”
icon , and select “Bitmap image (*.bg)” in the “Type” in the pop-up dialog box. You can
also import the bitmap used in the other project or the System Graphics Library. The system
graphics library is located in bg_vg_lib\VG directory in which the NB-Designer was installed
and all the graphics are stored in the folders for each item.
