3 Functions of NB-Designer
3-26
NB-series Programmable Terminals NB-Designer Operation Manual(V106)
The corresponding contents in the [Screen] menu shown as below have been described in [3-2-3 View
Menu], here only the function of [Copy/Delete Screen] is described in details.

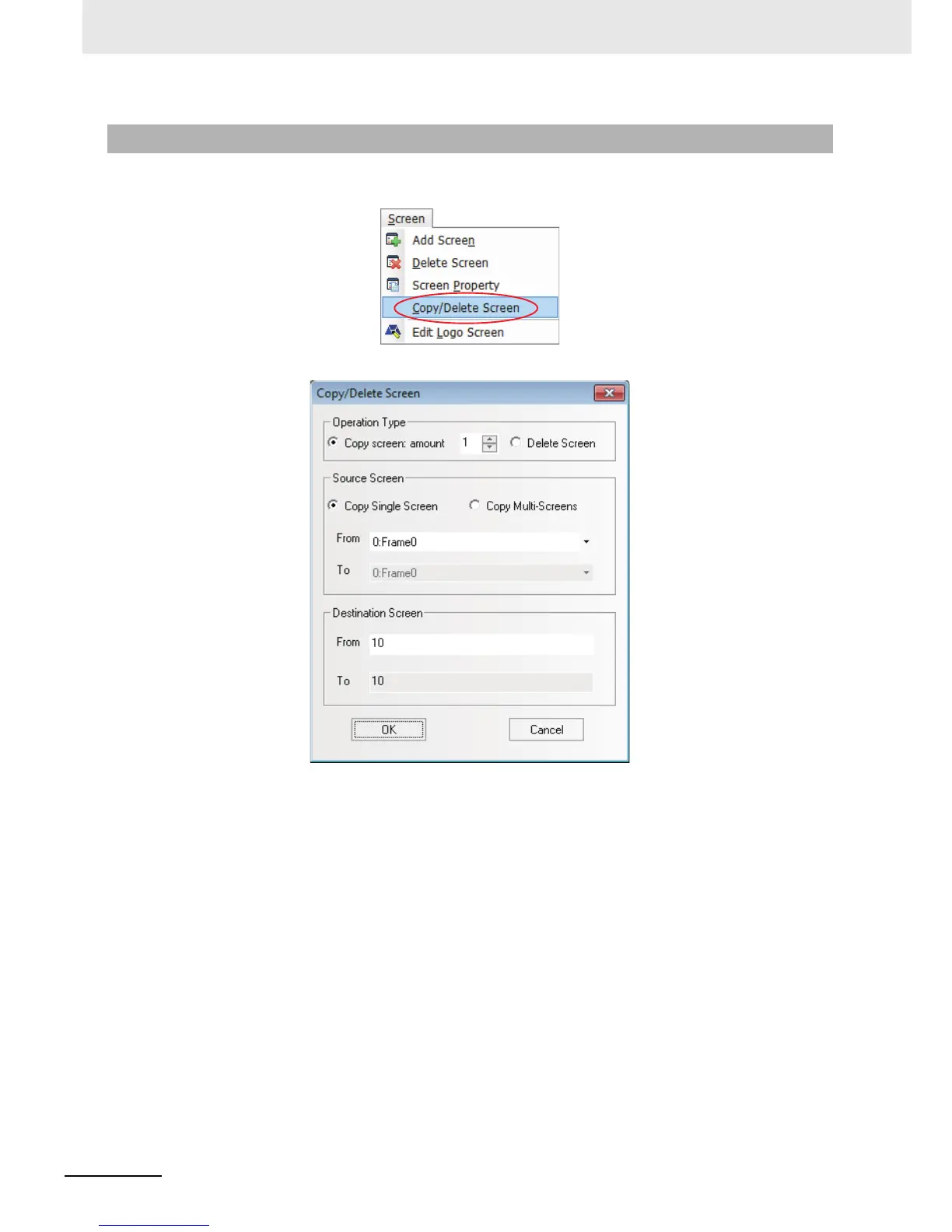

Click [Screen][Copy/Delete Screen], and the following dialog box will be displayed.
Operation Type
(1) Copy Screen
It can be one or more and its range is between 1 and 999.
• Copy Single Screen
When the number is 1, both the starting source screen ID and the starting destination screen ID
can be set, which means the screen and Properties of the source screen will be copied into the
destination screen.
If the destination screen doesn’t exist, the screen with a specified number will be created
automatically after the copy operation. And if the destination screen exists already, “Copy error: the
destination screen ID already exists!” will prompt.
When the number is greater than 1, both the starting source screen ID and the starting destination
screen ID can be set, and the destination screen ID will increase automatically according to the
copied number in this case, which means the screen and Properties of the source screen will be
copied into the screens between the starting destination screen and the end destination screen
respectively.
3-2-4 Screen Menu
