3 Functions of NB-Designer
3-86
NB-series Programmable Terminals NB-Designer Operation Manual(V106)
5

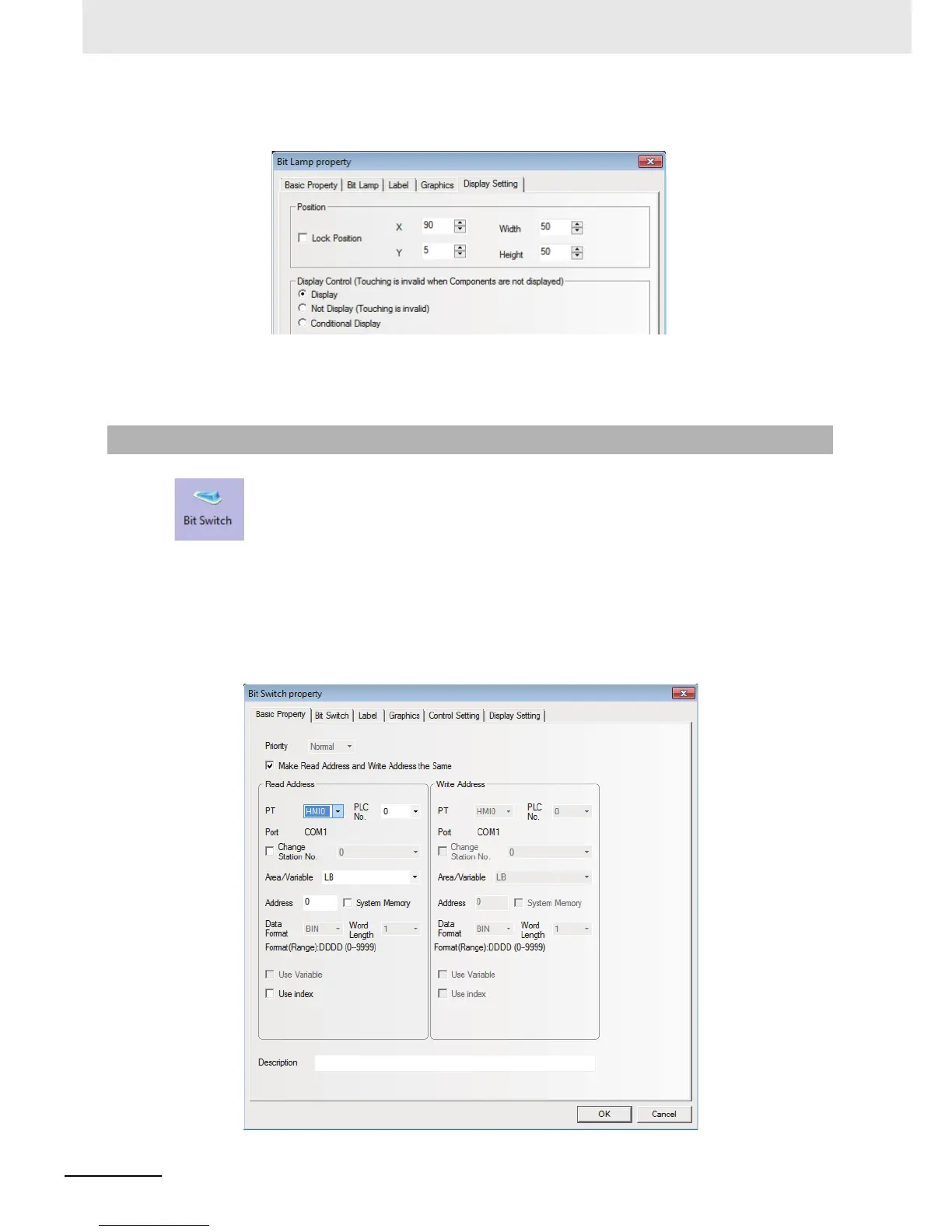

Switch to the [Display Setting] tab and adjust the position and size of the lamp component.
6
Press the [OK] button to complete the setup of the lamp component.
Bit Switch is the combination of the Bit Lamp and the Bit Button component. It defines a
touching area, and the bit address inside the PT or of the PLC can be switched between On and Off
state when this area is enabled.
Process of adding one Bit Switch
1
Drag the Bit Switch icon after it is pressed, then the [Basic Properties] dialog box of Bit Switch
component will pop up.
3-6-3 Bit Switch
