3-229
3 Functions of NB-Designer
NB-series Programmable Terminals NB-Designer Operation Manual(V106)
3-7 Function Parts
3
3-7-12 User Information
When the system uses User Permission function, the related information of the current login
user can be displayed in the table form by using the User Information component. The User Information
component must be used in combination with the User Permission, otherwise it will not work. Refer to 3-
10-6 User Permission Setting (Page 3-302) for the details.
The component which is unified the Bit Button and the Word Switch can operate the both the
bit set and the word set through one key.
The Multifunction component can be created by using the mouse to click [Components] -
[Button/Switch] - [Multifunction] or dragging [Multifunction] component from [Project Library Window] -
[Function Parts] to the Edit Window. The number of Actions which can be set by the Multifunction is 16
at max.
Process of adding Multifunction component

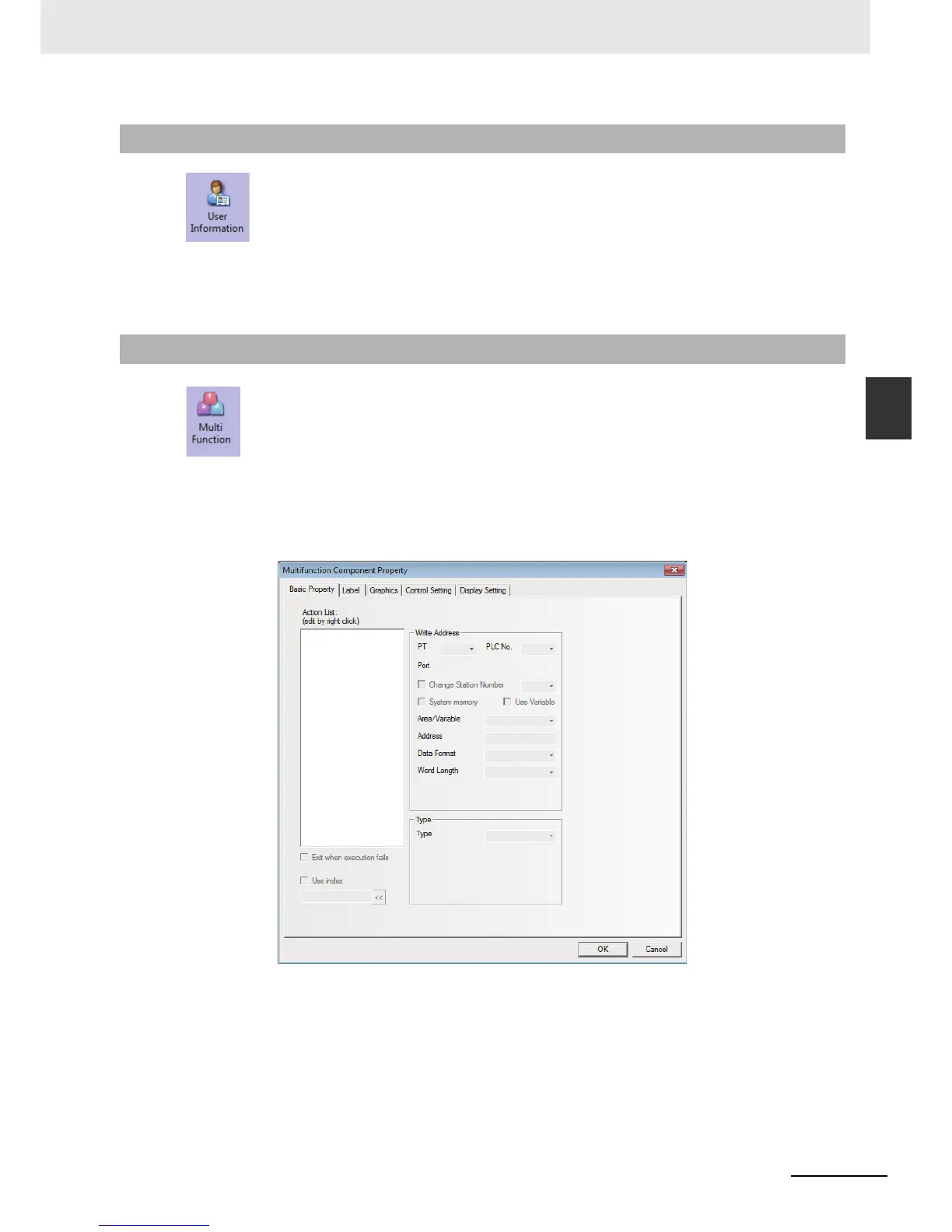

Right-click the mouse in the blank box located in the left side of Basic Properties tab in the
Multifunction Property screen to add the Bit Set or Word Set in the procedure as follows.
1
Add the actions (Bit Set and Word Set). Right-click the Action List to select [Insertion Before] or
[Insertion After] option to change the execution order of the component.
3-7-12 User Information
3-7-13 Multifunction
