Omron NB-series User Manual

3 Functions of NB-Designer
3-228
NB-series Programmable Terminals NB-Designer Operation Manual(V106)
2 Set and place Indirect Shape (Rectangle) components as follows:
• [Shape] : Rectangle
• top address of [Indirect Reference of Upper-left Corner] : LW0
• top address of [Indirect Reference of Width/Height] : LW2

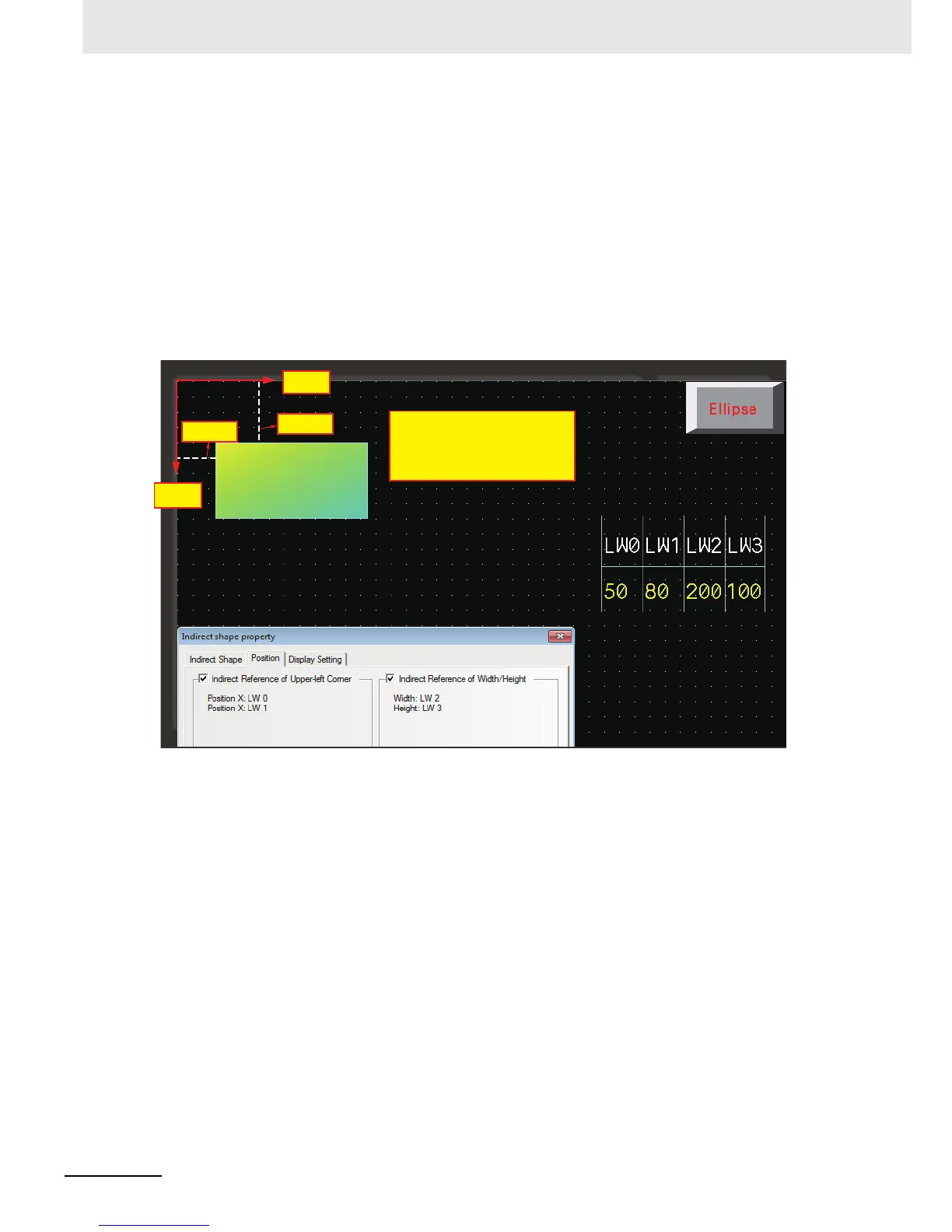

Storing the values as follows, the effect is shown as below:
• LW0 (Coordinate position of X in upper-left corner) : 50
• LW1 (Coordinate position of Y in upper-left corner) : 80
• LW2 (Width) : 200
• LW3 (Height) :100
Screen cartesian system:
Origin in the upper left corner.
X-axis growth to the right.
Y-axis growth to the down.
X-axis
Y-axis
80 pixels
50 pixels
