3-227
3 Functions of NB-Designer
NB-series Programmable Terminals NB-Designer Operation Manual(V106)
3-7 Function Parts
3
3-7-11 Indirect Shape
Example of creating Indirect Shape
1
Set and place Indirect Shape (ellipse) components as follows:
• [Shape] : Ellipse
• top address of [Indirect Reference of Upper-left Corner] : LW0
• top address of [Indirect Reference of Width/Height] : LW2

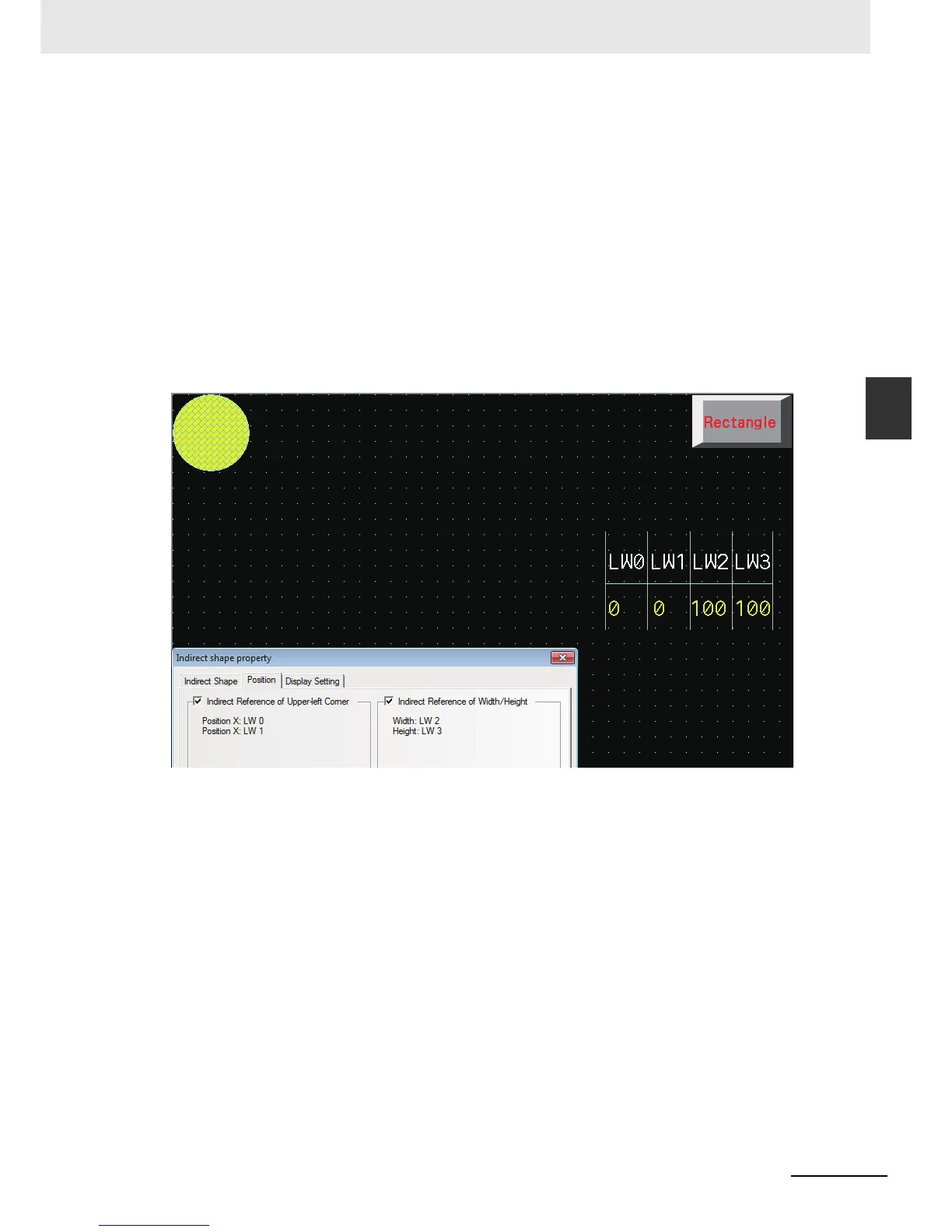

Storing the values as follows, the effect is shown as below:
• LW0 (Coordinate position of X in upper-left corner) : 0
• LW1 (Coordinate position of Y in upper-left corner) : 0
• LW2 (Width) : 100
• LW3 (Height) :100
To Next Page
