2 Position

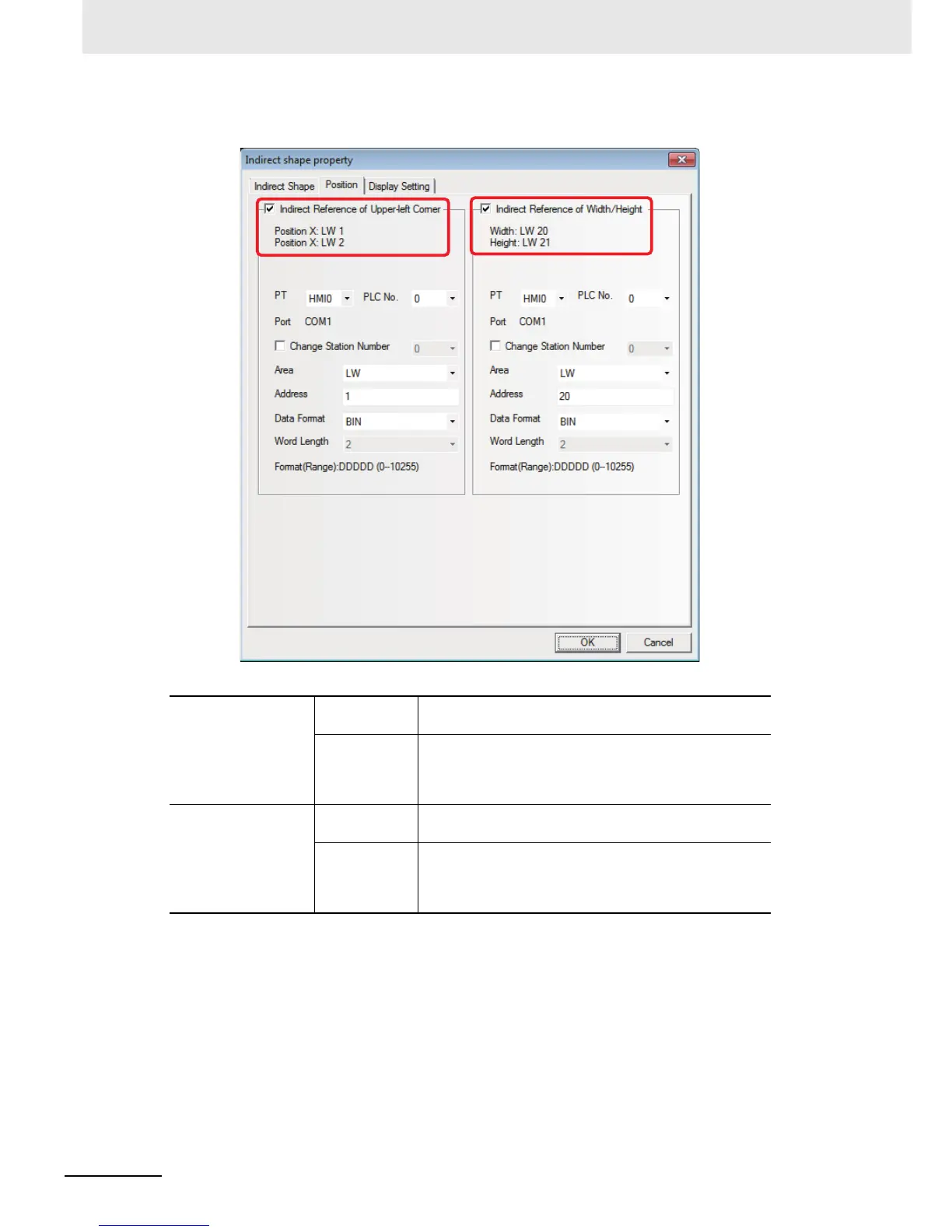

The descriptions of the specific Properties are as follows:
Indirect Reference of
Upper-left Corner
Unchecked Position X and Position Y of the Indirect Shapeics are the
constants.
Checked Position X and Position Y of the Indirect Shapeics are the
indirect reference.
Position X = First address of the set memory,
Position Y = First address of the set memory + 1
Indirect Reference of
Width/Hight
Unchecked The Width and Height of the Indirect Shapeics are the
constants.
Checked The Width and Height of the Indirect Shapeics are the
indirect reference.
Width = First address of the set memory,
Height = First address of the set memory + 1
