3 Functions of NB-Designer
NB-series Programmable Terminals NB-Designer Operation Manual(V106)
3-6 Parts
3
3-6-2 Bit Lamp
Right: The input content is put in the right side of the graphics.
Center: The input content is put in the center of the graphics.
Font Size: Displays the size of the font used by the content input to “Message” and the following types
are available.
Color: Displays the colors of fonts used by the content input to “Message”, and the user can use
“Custom Color…” to specify the desired colors.
4

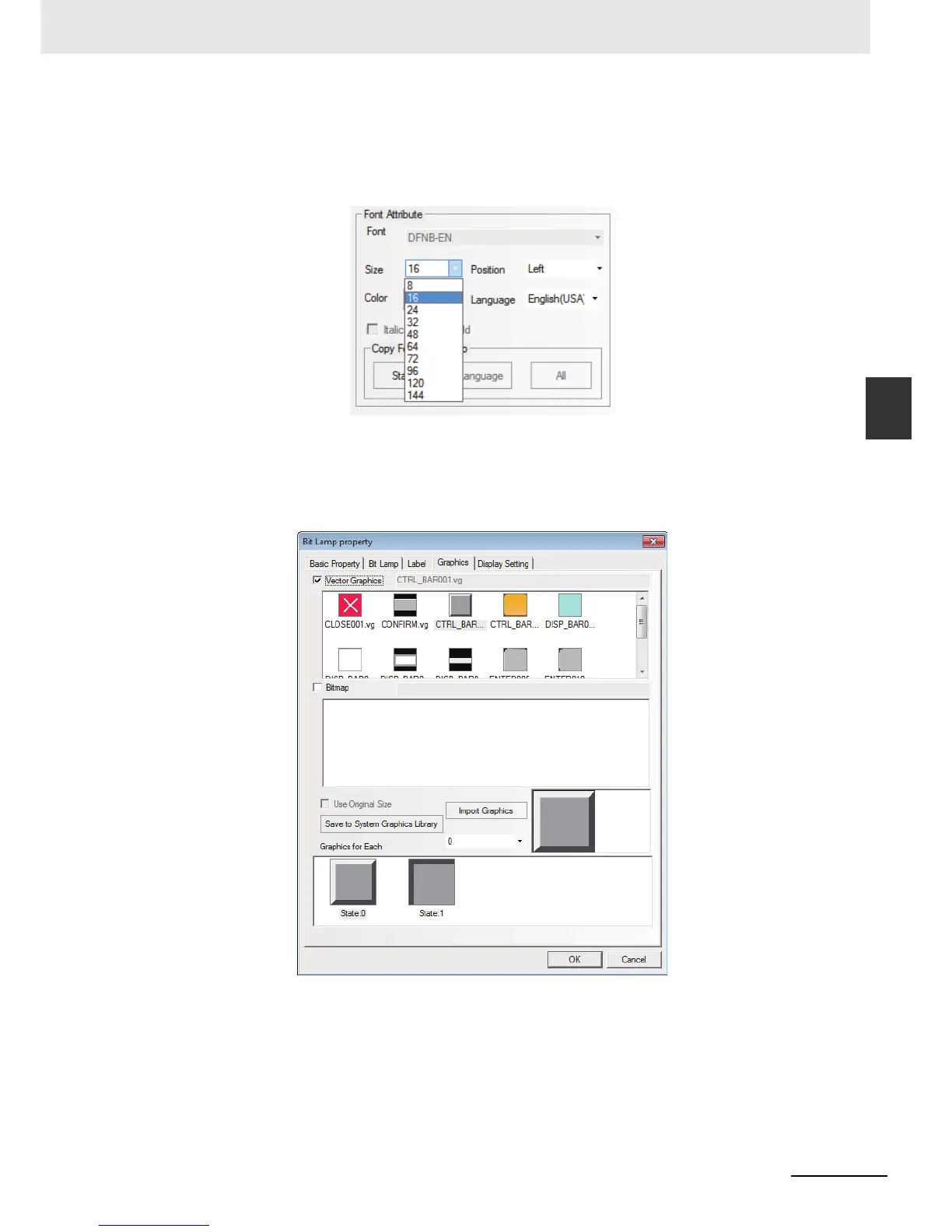

Switch to the [Graphics] tab, and select Vector Graphics or bitmap to represent the graphics
corresponding to the On and Off states of the bit address.
