3 Functions of NB-Designer
NB-series Programmable Terminals NB-Designer Operation Manual(V106)
3-5 Basic Design Method
3
3-5-12 Display Setting of Component
Example of Display Setting
Example:

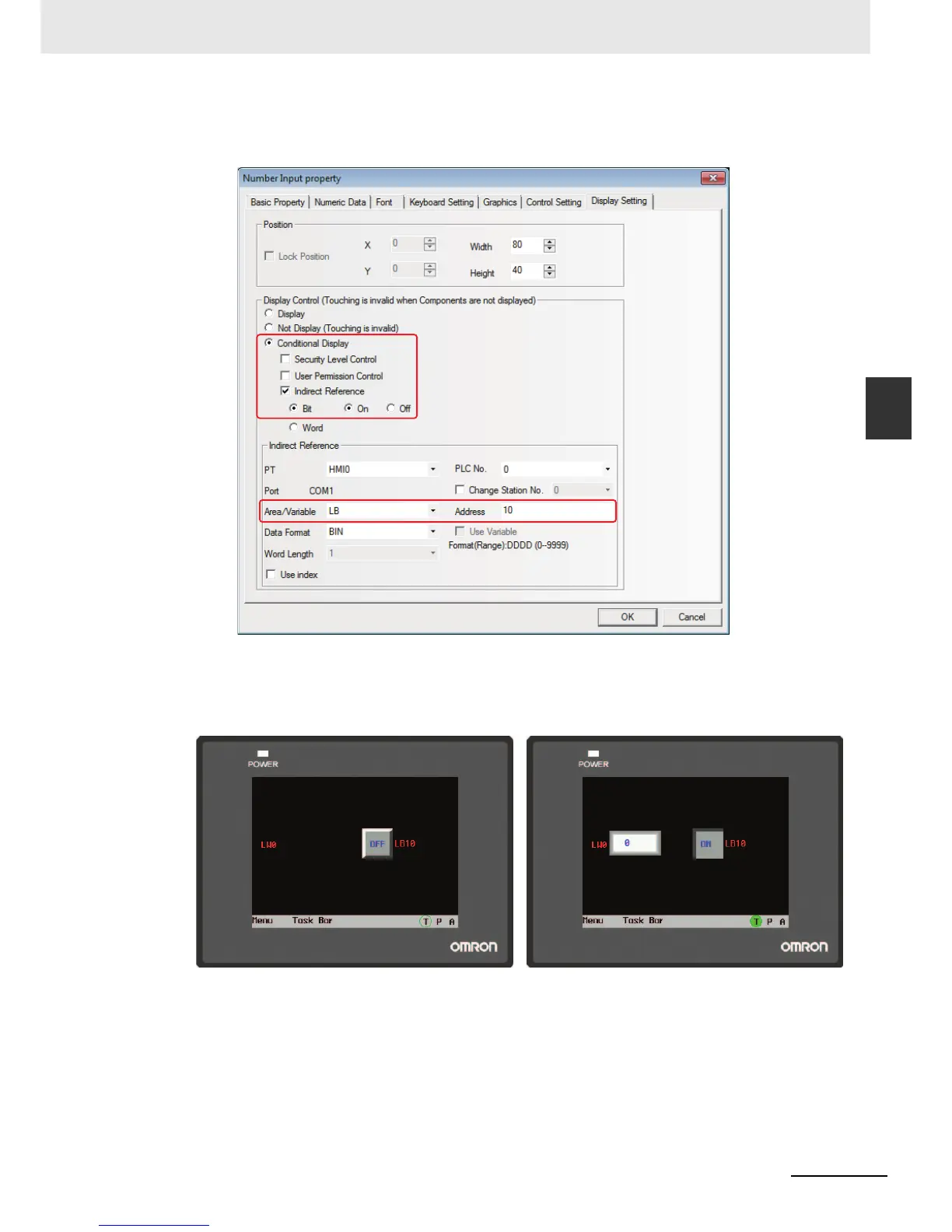

Set LW0 to the address of number input component make display setting and keep LB10 as “On”.
Perform the offline test. When LB10 is Off, the number input component is hidden, as shown in the
following left graphics.
When LB10 is On, the number input component is displayed, as shown in the following right
graphics.
