Press the [OK] button to complete the setup of the Word Switch component.
List and Dropdown List
List: Refers to the value of the specified memory corresponding to the state of each option. By
default, the value of specified memory corresponding to the first option is “0”, and the value of
specified memory corresponding to the second option is “1”, and so on.
For example:
(1) Create a Word Switch in which read address and write address are LW0 and a number
display component in which address is LW0.
(2) Set the Control Mode and State No. to “List” and “6” respectively.

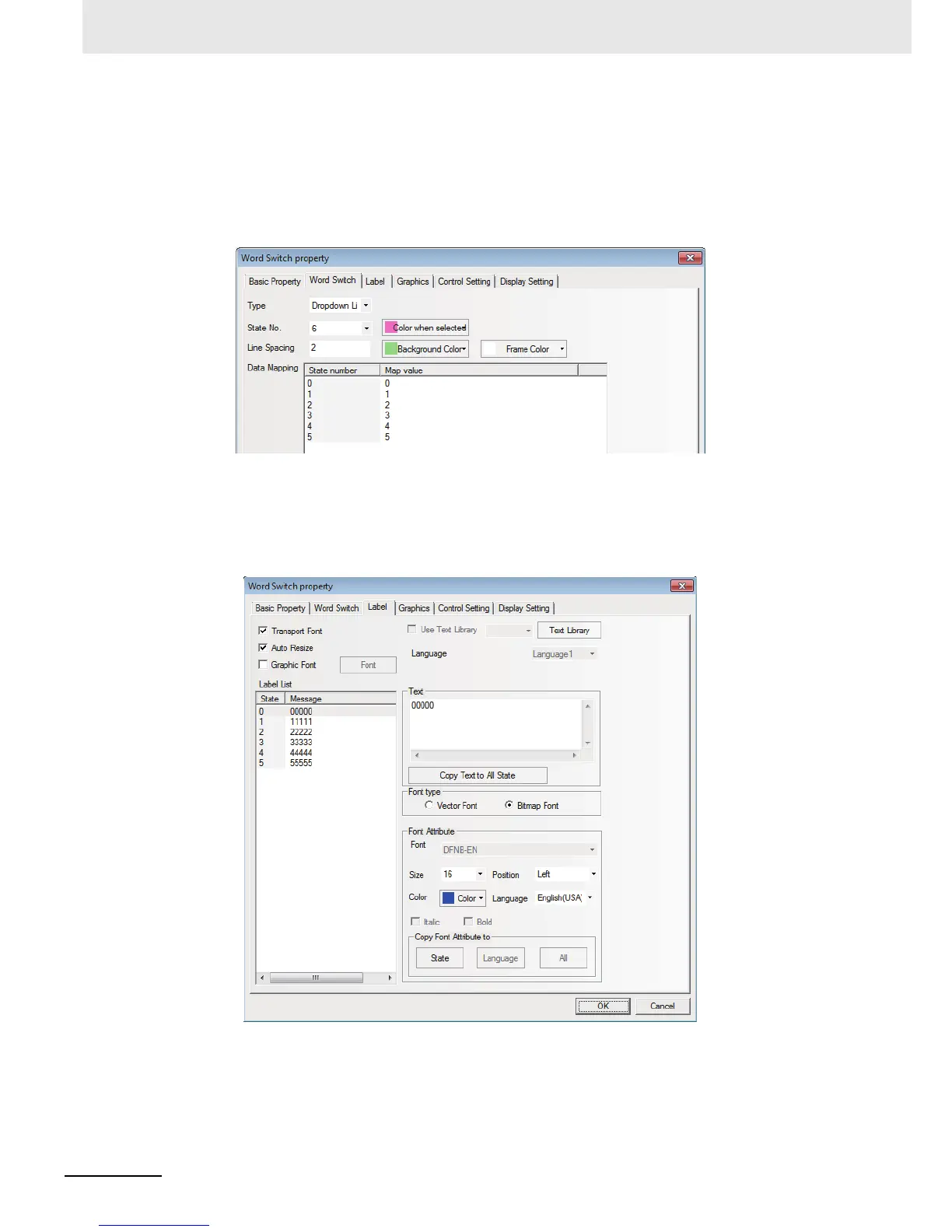

(3) Create the labels with the contents as shown below.
