Omron NB-series User Manual

3-131
3 Functions of NB-Designer
NB-series Programmable Terminals NB-Designer Operation Manual(V106)
3-6 Parts
3

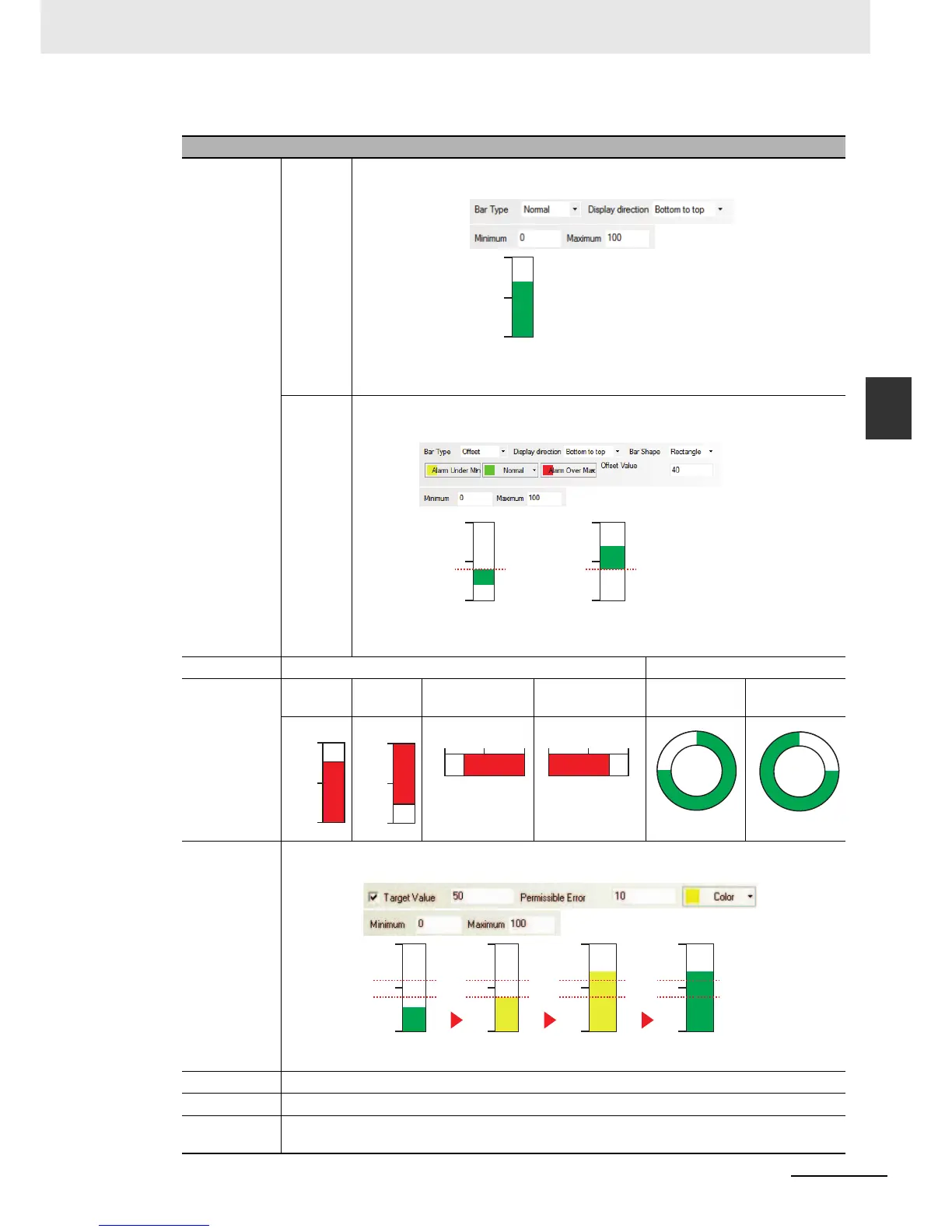

3-6-14 Level Meter
Detailed descriptions of the Level Meter Properties
Bar Type Normal Indicates the percentage relationship between the actual value and the set range
by means of a Level Meter.
Offset
Displaying the value over the [Offset] for the actual value by means of a Level Meter.
Example: Maximum 100, Minimum 0, Offset Value 40
Bar Shape Rectangle Circle
Display
direction
Bottom to
To p
Top to
Bottom
Right to left Left to Right Clockwise
Counterclockwise
Target Value When the value of the specified memory falls to the range [target value [allowable] gap]) specified
to the [Allowable gap], the fill area of the Level Meter will be displayed in the specified color.
Meter Width When the Level Meter is of a Circle shape, the width of the fan can be set with the unit of pixel point.
Start Angle When the Level Meter is of a Circle shape, the Start Angle of the fan can be set.
End Angle When the Level Meter is of a sector shape, the End Angle of the sector ring can be set. If the
start angle is different from the end angle, shape of the meter will be fan-shaped.
100
50
0
D100=70
D100=20 D100=70
100
50
40
0
100
50
40
0
100
50
0
0
50
100
100 50 0
0 50 100
100
60
50
40
0
100
60
50
40
0
100
60
50
40
0
100
60
50
40
0
D100=30 D100=40 D100=60 D100=70
