3 Functions
of NB-Designer
3-188
NB-series Programmable T
erminals NB-Design
er Operation Manual(V106)

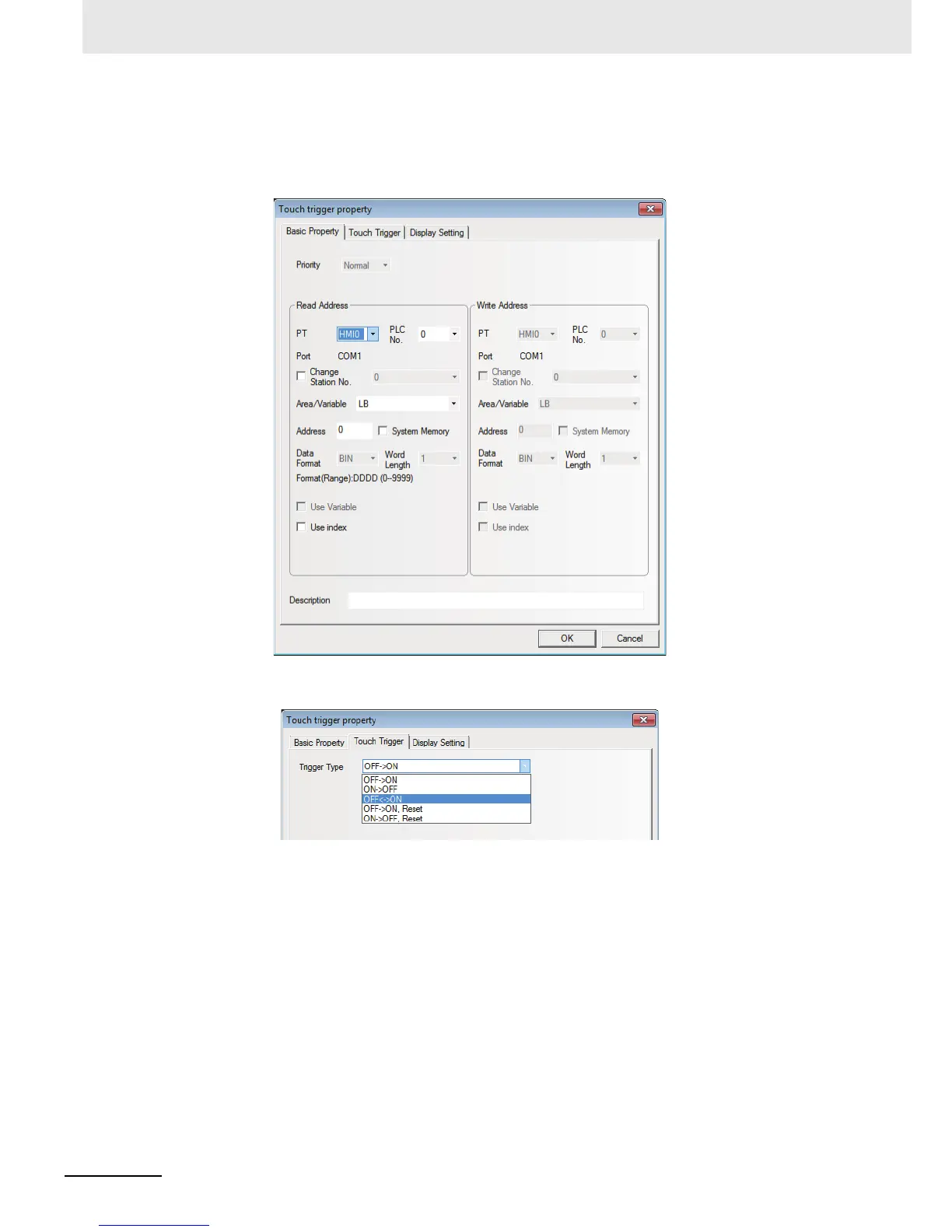

Process of adding one T
ouch T
rigger component
1
Press the T
ouch T
r
igger component
icon, drag it to the scr
een, then the [Basic Proper
ties]
dialog bo
x of T
ouch T
rigger component will pop up.
2
Switch to the [T
ouch T
rigger] tab and select the T
rigger T
ype.
3
Press the [OK] b
utton to complete the se
tup of the T
ouch T
r
igger component.
229
