Function Key
1
Switch Screen

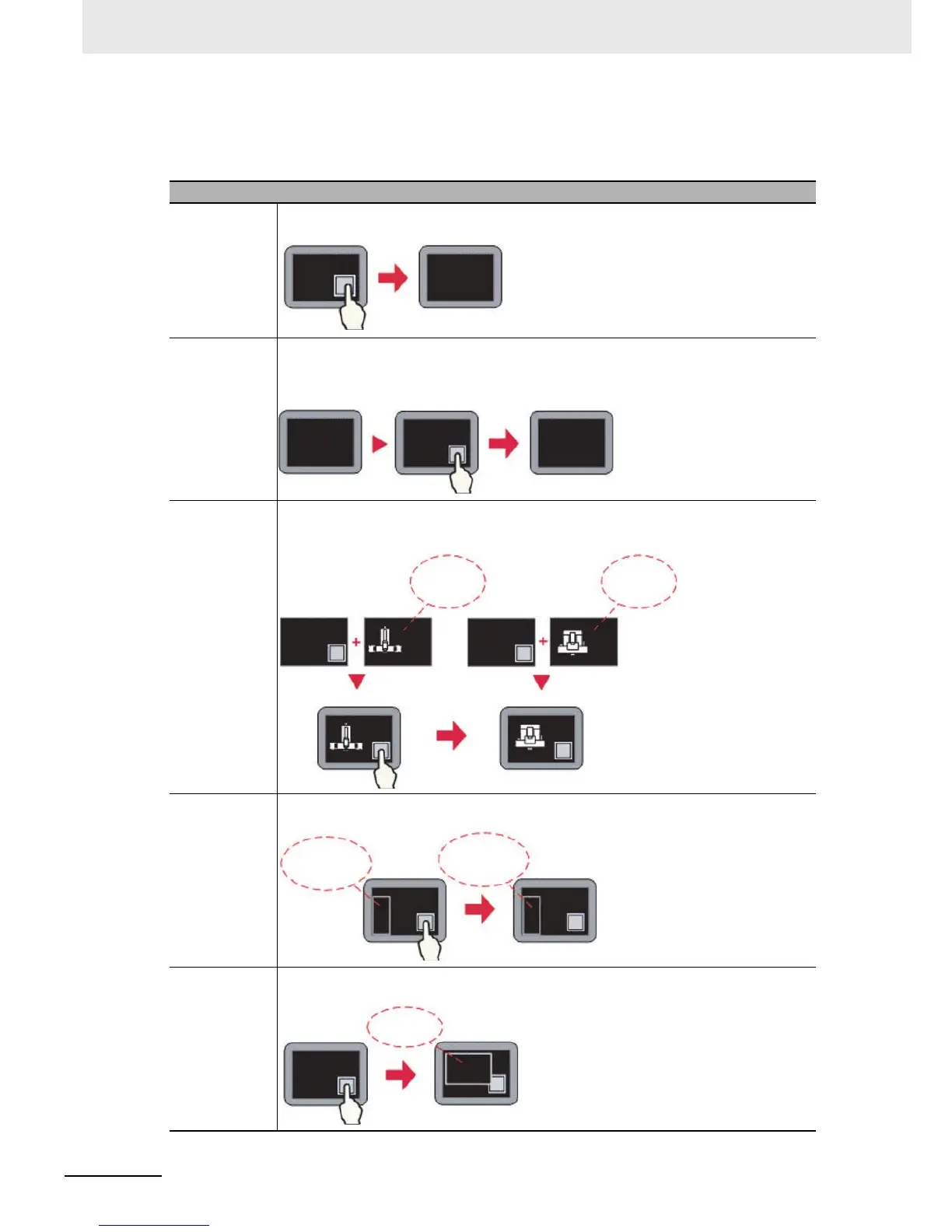

Descriptions of Switch Screen
Change
Screens
Pressing the Function Key will make the current Base Screen including all of the pop-up
screens closed and the Base Screen with the specified Screen No. will be switched to.
Backward Pressing the Function Key can make the current Base Screen closed and return to the
latest opened Base Screen, which is effective only for the Base Screen. For example, when
pressing the Function Key in “Frame 10” after “Frame 0” has switched to “Frame 10”,
“Frame 10” will be closed and the Screen will return to “Frame 0”.
Change
Common Sheet
After the Function Key is pressed, the Common Sheet (Frame 1 is the system default
screen.) can be replaced by the specified screen which will become the new Common
Sheet.
Change Menu
Screen
After the Function Key is pressed, the Menu Screen (Frame 2 is the system default screen.)
can be replaced by the specified screen which will become the new Menu Screen.
Pop-up Screen After the Function Key is pressed, the specified screen will pop up and be displayed above
the current Base Screen, and the current screen will not be closed.
