(5) Place one text display component to display “Basic window 0” in the Basic window 0 as
below. Also place [Pop-up Screen] function key to display
“Pop-up window 7” and
[Backward] function key in the Basic window 0.
(6) Place one Text Display component to display
“Basic window 4” and [Backward] function key
in the Basic window 4.
(7) Create three Function Keys in the [Fast select window 5].
Three Function keys such as a [Change Common Sheet] Function Key to switch Common
Sheet into Common window 1, a [Change Common Sheet] Function Key to switch Common
Sheet into Common window 6, and [Change Menu Screen] Function Key to switch Menu
Screen into Fast select window 2 as follows.
(8) Place one Text Display component to display
“Common window 6” in the Common window
6.
(9) Place three Function Keys in
“Pop-up Screen” in Pop-up window 7. Three Function Keys
such as one [Title bar on Pop-up Screen] Function Key to display
“Pop-up window 7”, a
[Minimize] Function Key, and one [Close Screen] Function Key.

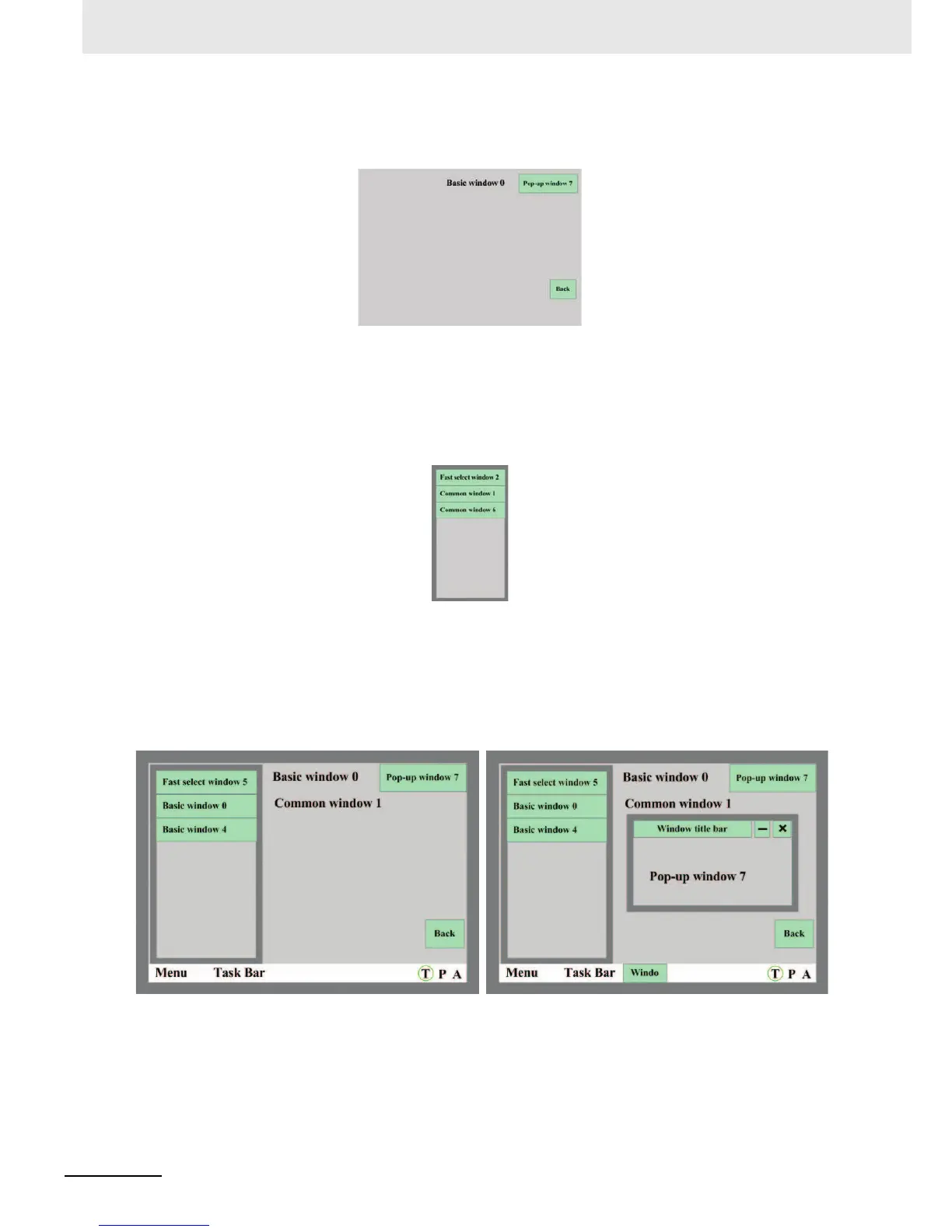

(10)After the completion of setup, saving the project file and executing the off-line test after the
compilation, the project is displayed as below.
(11)When switching the
“Basic window 0” into “Basic window 4” by the button in Menu Screen,
pressing
“Back” button allows the screen returned to “Basic window 0” and then pressing
“Back” button in the Basic window 0 allows the screen returned to “Basic window 4”.
(12)When [Pop-up Screen] is pressed in
“Basic window 0”, “Pop-up window 7” will pop up, as
the upper right graphics shown.
