Omron NB-series User Manual

3 Functions of NB-Designer
3-280
NB-series Programmable Terminals NB-Designer Operation Manual(V106)
(c) Point Structure “Point”
The parameter of point structure is simpler: x represents the X-axis coordinate and y
represents the Y-axis coordinate for the point.
(1) Drawing Function
(a) Rectangle “DrawRect (x, y, w, h, pen, brh)”
The description of the parameter is as follows:
(b) Rounded Rectangle “DrawRndRect (x, y, w, h, radius, pen, brh)”
The description of the parameter is as follows:

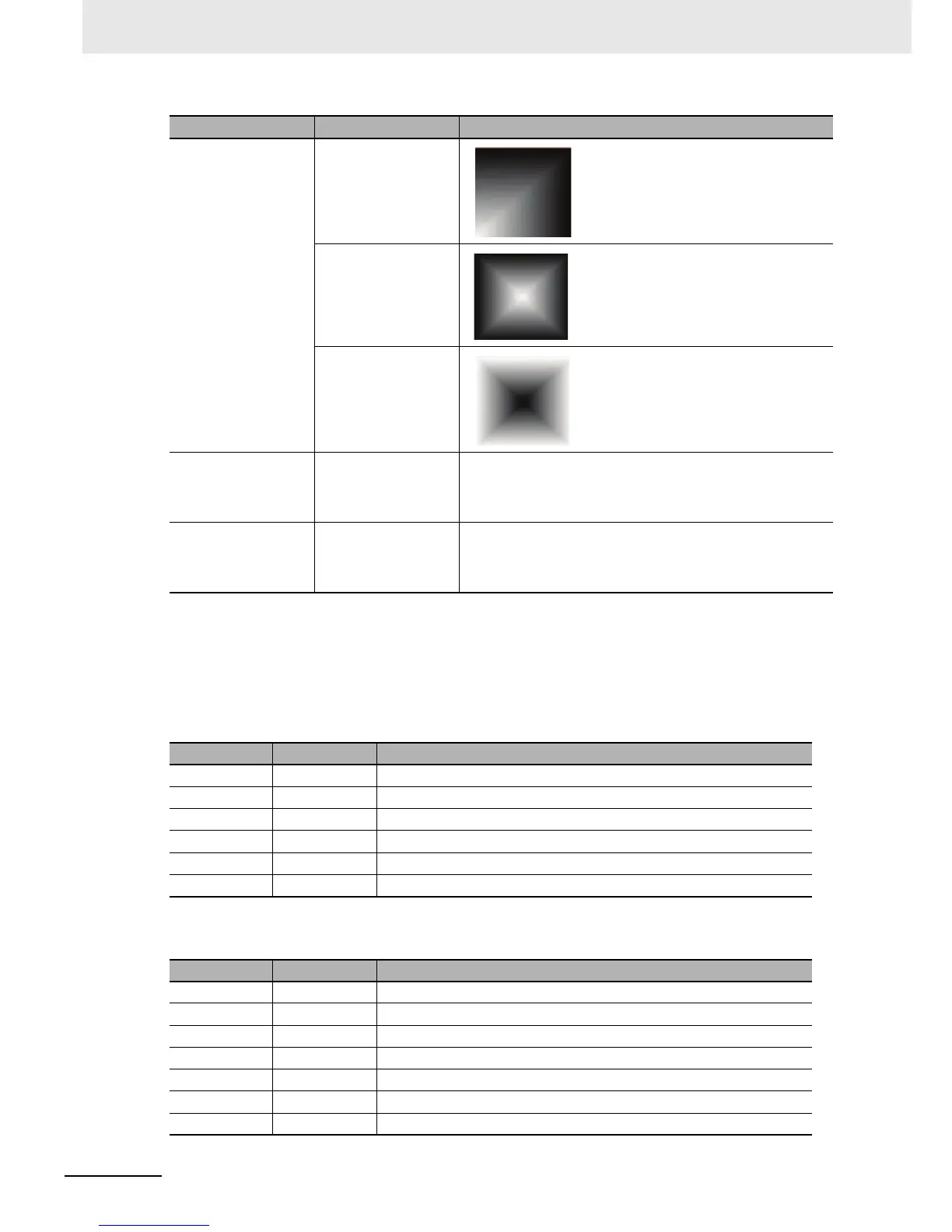

BFS_CONGRDT_FLD
TRT
BFS_CENGRDT_FETC
BFS_CENGRDT_FCTE
ForeColor
(Pattern color)
0~65535 It is recommended to use Macro RGB (r. g. b) to set the color,
and the range for r, g and b is 0~255. The system will convert
the value of RGB (r, g, b) according to the color parameters of
PT screen.
BackColor
(Background color)
0~65535 It is recommended to use Macro RGB (r. g. b) to set the color,
and the range for r, g and b is 0~255. The system will convert
the value of RGB (r, g, b) according to the color parameters of
PT screen.
Parameter Type Descriptions
x Int. X-axis coordinate of the upper-left corner of the rectangle (Unit: pixel)
y Int. Y-axis coordinate of the upper-left corner of the rectangle (Unit: pixel)
w Int. Rectangle width (Unit: pixel)
h Int. Rectangle height (Unit: pixel)
pen PenParam Rectangular-border pen
brh BrushParam Rectangular filling brush
Parameter Type Descriptions
x Int. X-axis coordinate of the upper-left corner of the rectangle (Unit: pixel)
y Int. Y-axis coordinate of the upper-left corner of the rectangle (Unit: pixel)
w Int. Rectangle width (Unit: pixel)
h Int. Rectangle height (Unit: pixel)
radius Int. Rounded radius (Unit: pixel)
pen PenParam Rounded-rectangle-border brush
brh BrushParam Rounded-rectangle filling brush
Parameter Name Value Descriptions
