3 Functions of NB-Designer
3-306
NB-series Programmable Terminals NB-Designer Operation Manual(V106)

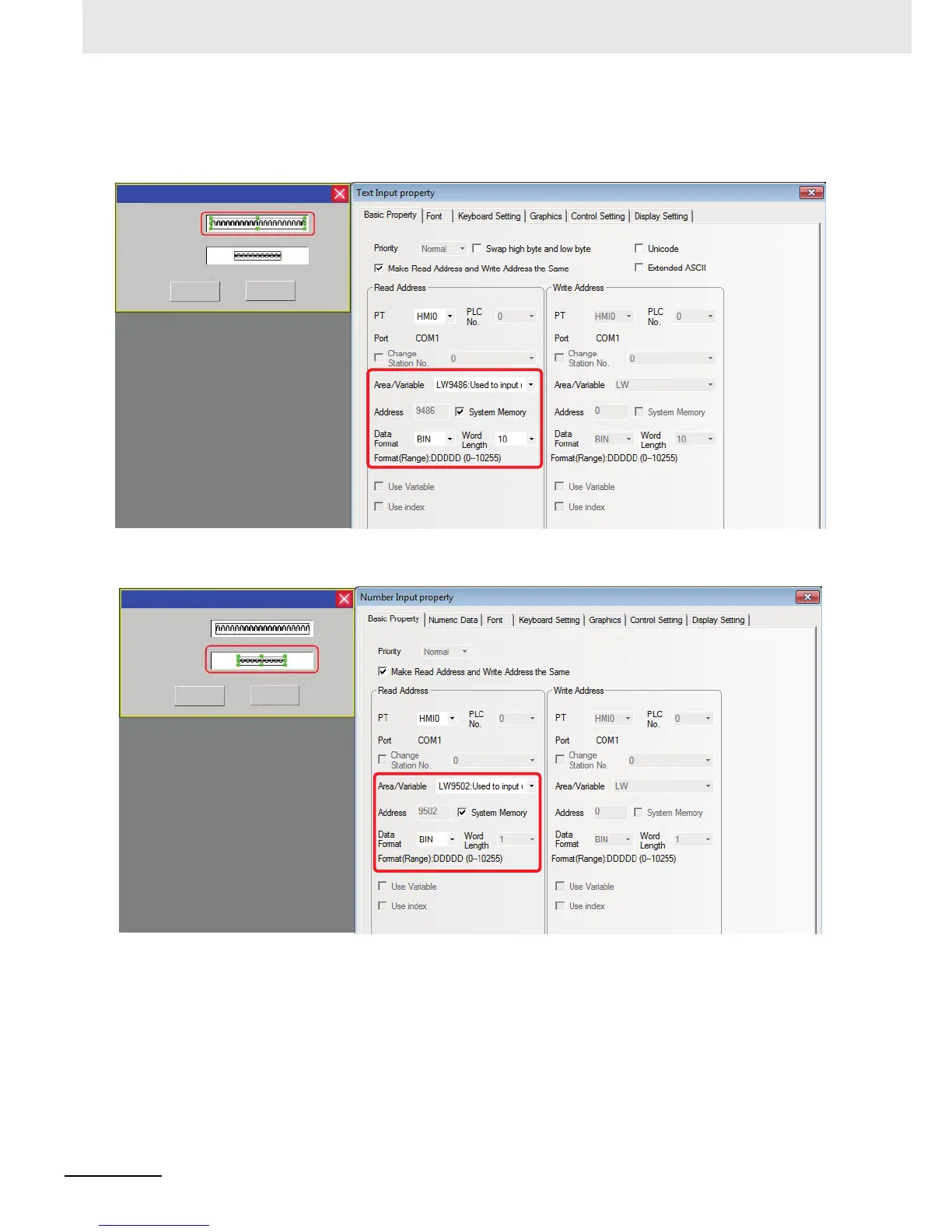

Create a new screen as the user permission password input screen:
Firstly, place one Text Input component for inputting the user name with the address of LW9486 and
the maximum word length up to 16 (Here it is 10.).
Secondly, place one Number Input component for inputting the password with the address of
LW9502, the word length of 2 and the data type of [password].
User Login
User Name:
Password:
Login
Login Out
User Login
User Name:
Password:
Login
Login Out
