3 Functions of NB-Designer
3-332
NB-series Programmable Terminals NB-Designer Operation Manual(V106)
2

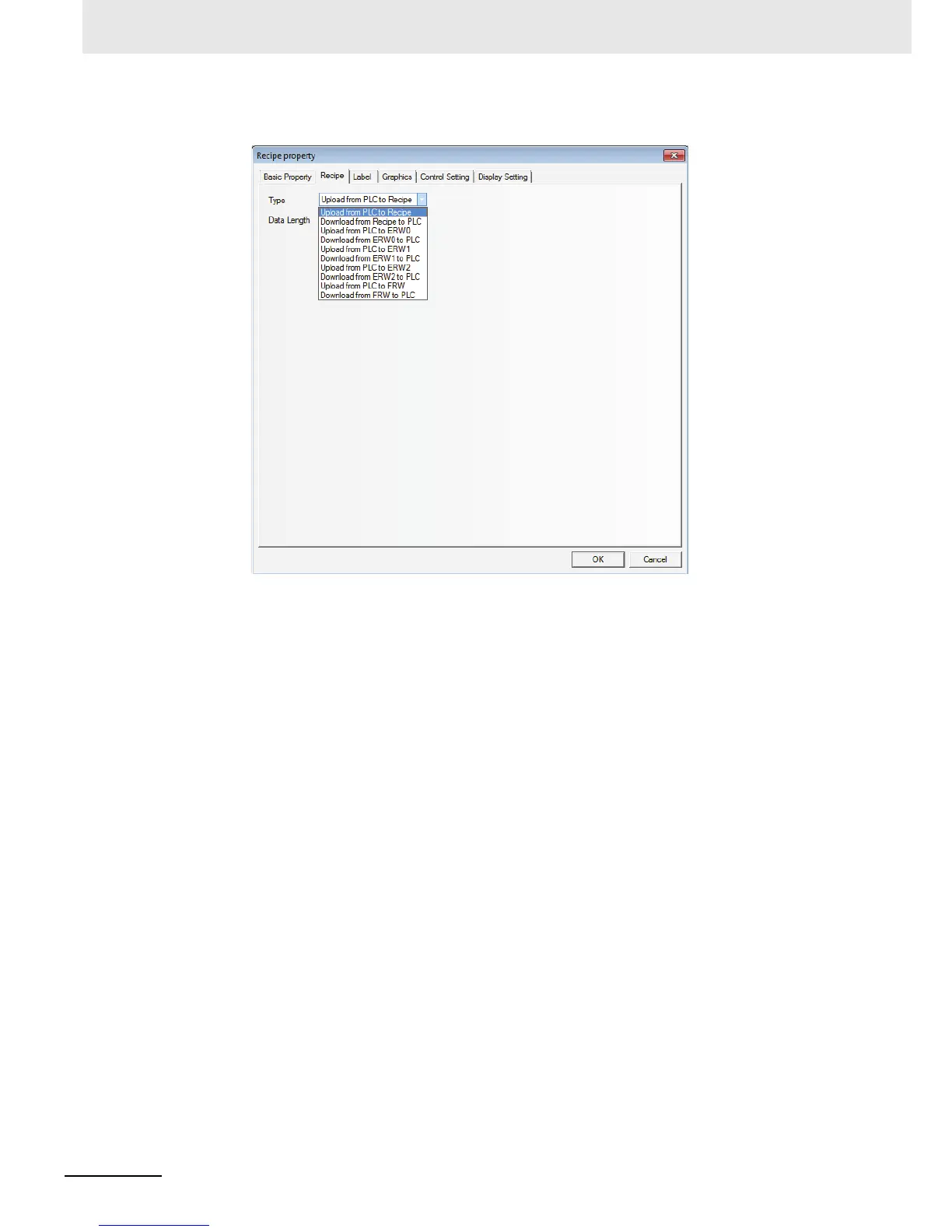

Switch to the [Recipe] tab and set the Function and Data Length.
Function:
Upload from PLC to Recipe: Transfers the data from PLC to the recipe memory of PT.
Download from Recipe to PLC: Transfers the data from the recipe memory of PT to PLC.
Transmit from PLC to FRW: Transmit the data from PLC to the Recipe memory ERW.
Transmit from ERW to PLC: Transmit the data from the Recipe memory ERW of PT to PLC.
Upload from PLC to FRW: Transfers the data from PLC to the recipe memory FRW of PT.
Download from FRW to PLC: Transfers the data from the recipe memory FRW of PT to PLC.
Data Length: Refers to the word length of the data to be transferred.
3
Switch to the [Label] tab and add the different displayed texts corresponding to the different
states.
4
Switch to the [Graphics] tab and select the Vector Graphics or Bitmap to display the graphics
corresponding to the state of the Recipe Data component.
5
Switch to the [Control Setting] tab and make the Security Setting and set the Triggering action.
6
Press the [OK] button, and adjust the position and size of the component.
