3 Functions
of NB-Designer
3-354
NB-series Programmable T
erminals NB-Design
er Operation Manual(V106)

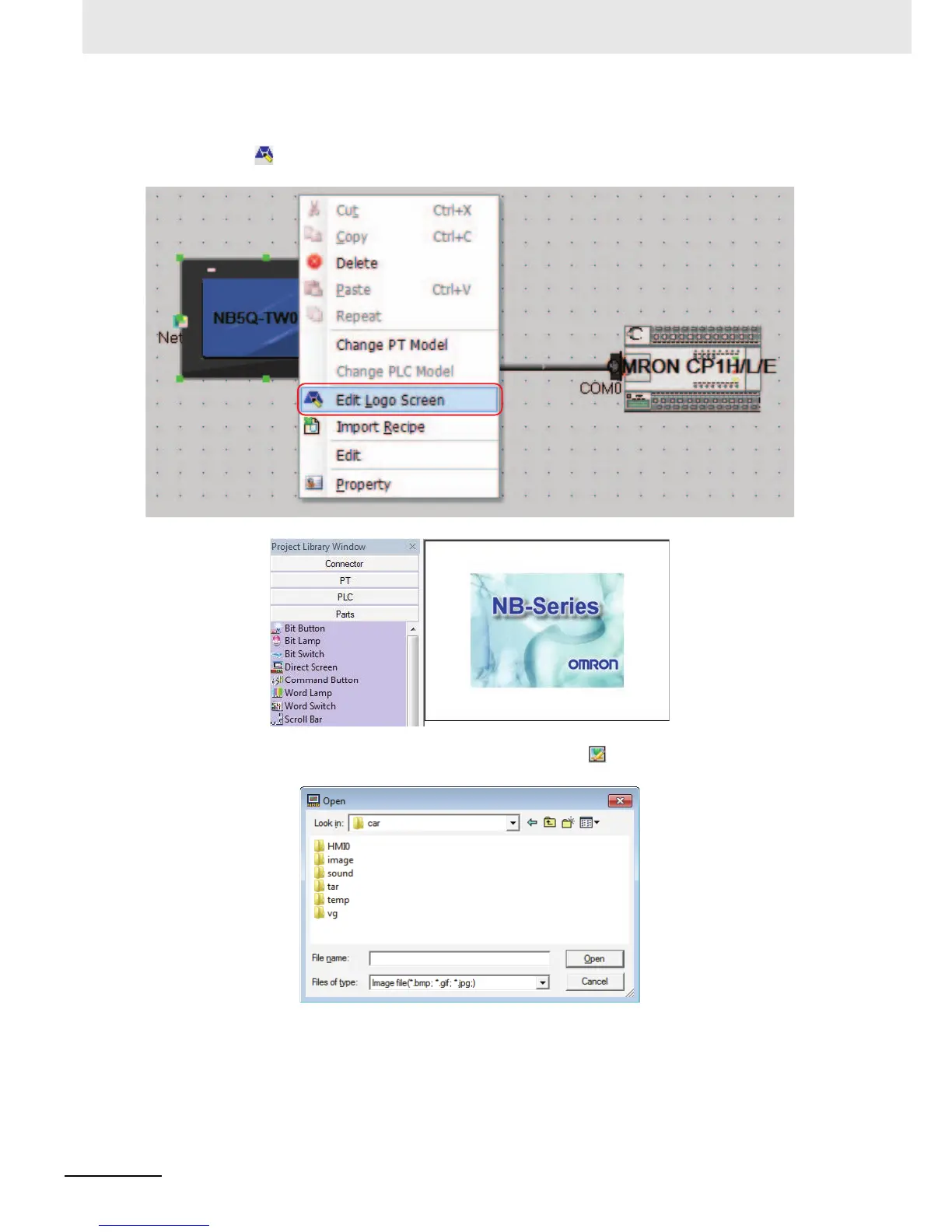

Editing LOGO Screen
Press the
icon in the t
oolbar
, or select and clic
k the PT in the Project W
ork Space to display t
he
Edit Window as belo
w
.
Y
ou can apply the
optional LOGO scree
n. And if you clic
k the
icon in the toolbar, the f
ollowing
dialog bo
x will appear
:
Find the requ
ired LOGO graphic, and click it to op
en it.
395
397
Table of Contents
Default Chapter
5
Introduction
5
NB-Series Manuals
6
Manual Structure
8
Terminology
9
Table of Contents
11
Terms and Conditions Agreement
17
Safety Precautions
19
Precautions for Safe Use
22
Precautions for Correct Use
24
Conformance to EC Directives
25
Related Manuals
26
Introduction
27
Functions and Structure of NB-Series Pts
28
How NB-Series Pts Work at FA Production Sites
28
Operations of NB-Series Pts
28
Communicating with the Host
30
What's the Host Link
30
Connecting Methods
31
Communicating with the PLC Manufactured by Other Companies
32
System Configuration
33
Connectable Peripheral Devices
33
Procedures for NB-Series Pts' Operation
34
Installation and Startup of NB-Designer
35
Before Installation
36
Installation/Uninstallation
37
Installation Procedure
37
Uninstallation Procedure
37
Startup & Quit
38
Starting Method
38
Quitting Method
38
Installation of USB Driver for NB
39
Functions of NB-Designer
43
User Screen
46
Menus
49
File Menu
49
Edit Menu
52
View Menu
57
Screen Menu
68
Draw Menu
71
Components Menu
71
Tools Menu
72
Option Menu
72
Window Menu
73
Help Menu
74
NB-Designer Software Window
75
Project Library Window
75
Project File Window
79
Project Work Space
79
Output Window
85
Component List Window
86
Screen Concept
87
Screen Types
87
Screen Property
90
Screen Creation
94
Screen Opening
94
Screen Deletion
95
Components Related to Screen
95
Basic Design Method
96
Designing Components
96
About ID no
97
Additional Comments (Descriptions)
98
Read/Write Address for PLC
99
Vector Graphic
100
Bitmap
105
Creating Label
108
Task Bar and Operation Buttons
110
Fonts
112
Basic Properties of Component
115
Control Setting of Component
116
Display Setting of Component
120
Parts
122
Bit Button
122
Bit Lamp
125
Bit Switch
128
Command Button
129
Word Lamp
134
Word Switch
136
XY Graph
140
Moving Component
149
Animation
154
Number Input
156
Number Display
162
Text Input
165
Text Display
169
Level Meter
170
Analog Meter
181
Indirect Screen
185
Direct Screen
188
Alarm
190
Data Log
192
Recipe
202
Oscillograph
202
Scroll Bar
206
Event
209
Note Book
216
Word Neon Lamp
227
Bit Neon Lamp
228
Touch Trigger
229
Table
231
Data History
232
Function Parts
238
Scale
238
Function Key
239
Alarm Display
247
Timer
251
Bitmap
256
Vector Graphics
257
Notepad
258
Data Transmission
261
Freeplotting
264
Date/Time
265
Indirect Shape
267
User Information
271
Multifunction
271
Event Display
274
Project Database
276
Text Library
276
Variable Table
282
Alarm Setting
285
Event Setting
290
PLC Control
294
Macro Function
302
Create a Simple Macro Program
302
Macro and Specification of Operation with Read/Write Variables
309
Macro Triggering
310
Other Descriptions
313
System Parameters
327
Task Bar
329
PT Extended Properties
331
System Information Setting
340
Security Levels Setting
342
User Permission Setting
344
Event History Setting
358
COM1/COM2 Setting
359
Address of System Memory
361
Local Bit (LB)
362
Local Word (LW)
366
Nonvolatile Local Word (LW10000~10255)
369
System Information Table
371
Recipe Data
373
Process of Creating One Recipe Component
373
Recipe Memory
375
Upload/Download of Recipe Data between PT and PLC
379
Security Level
384
Test
390
Offline Test
390
Direct Online Test
391
Indirect Online Test
392
Download
393
Transmission Setting
393
Download Via USB Memory
395
Specification of Downloading Contents
395
Other Functions
399
Recipeeditor
441
Functions of Nbmanager
453
Introduction of Nbmanager
454
Download Operation
455
Communication Setting
455
Select Data
457
LOGO Setting
460
Clear Data
461
Upload Operation
463
System Operation
466
Get Version
467
Decompile Operation
468
Pass through Communication
469
Web Interface Operation
471
Maintenance and Abnormality Handling
473
Maintenance
474
Checking and Cleaning
476
Abnormality Handling
478
Solutions for “PLC no Response”/“Plc Response Error”
479
When Compile Error Occurs
479
Unit Replacement Precautions
481
Tw01B
483
Sec. 6 Descriptions of New Functions Added into NB -TW01B
484
New Added Functions
484
Using Graphics from External Memory
484
System Reserved Memory
485
Recipe
485
Download through Ethernet
486
Download to USB1
487
Nbmanager
488
Data Encryption
489
New Added Addresses for System Memories
491
Change of System Language
492
Usage of Forced Address Bit
492
System Parameters
493
PT Extended Properties
494
Event History Setting
495
External Memory
496
Communication Setting
496
Component Improvement
497
Function Key
497
Event, Event History Display and Event Display
500
Data History, Data Log and XY Graph
502
Operation Log
503
Recipe Data
506
PLC Control
507
File List
508
Pictbridge Printing
509
Pictbridge Function
510
Setting Method for Using Printing Function
512
Components Related to Printing and Setup Descriptions
514
PLC Control
514
List of System Memories Related to Printing
516
List of Error Codes for Printing
517
Recommended Printer Models
518
Web Interface
519
Defining Web Interface
520
Setup Web Interface on a PC
521
Connection Method and each
522
URL List
527
Appendices
529
List of Models
529
NB-Designer Function List
534
List of Memories Supported by OMRON PLC
539
Revision History
545
