3-373
3 Functions of NB-Designer
NB-series Programmable Terminals NB-Designer Operation Manual(V106)
3-16 Other Functions
3
If new graphics needs to be added, click [Import Graphics].

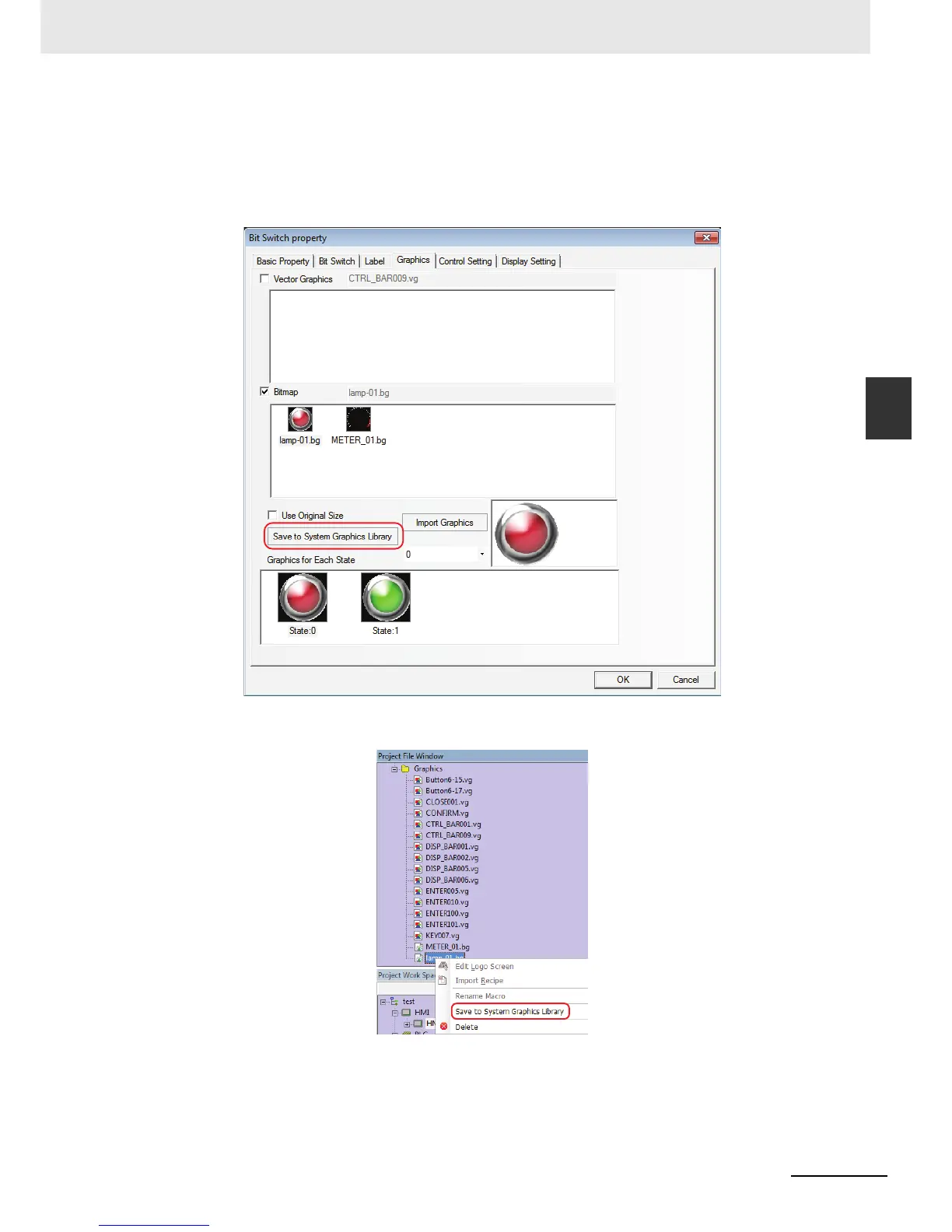

Role of [Save to System Graphics Library] is to save the current graphics to the software for
the convenient call during the creation of other projects.
There are 2 methods for [Save to System Graphics Library]:
(1) Enter the [Graphics] tab and click [Save to System Graphics Library].
(2) Enter the [Graphics] in [Project File Window], select the current graphics, and right-click the
mouse to select [Save to System Graphics Library].
[Use Original Size] is intended for the user to conveniently make the graphics return to its
original size after it is zoomed out or in.
