3 Functions of NB-Designer
3-378
NB-series Programmable Terminals NB-Designer Operation Manual(V106)

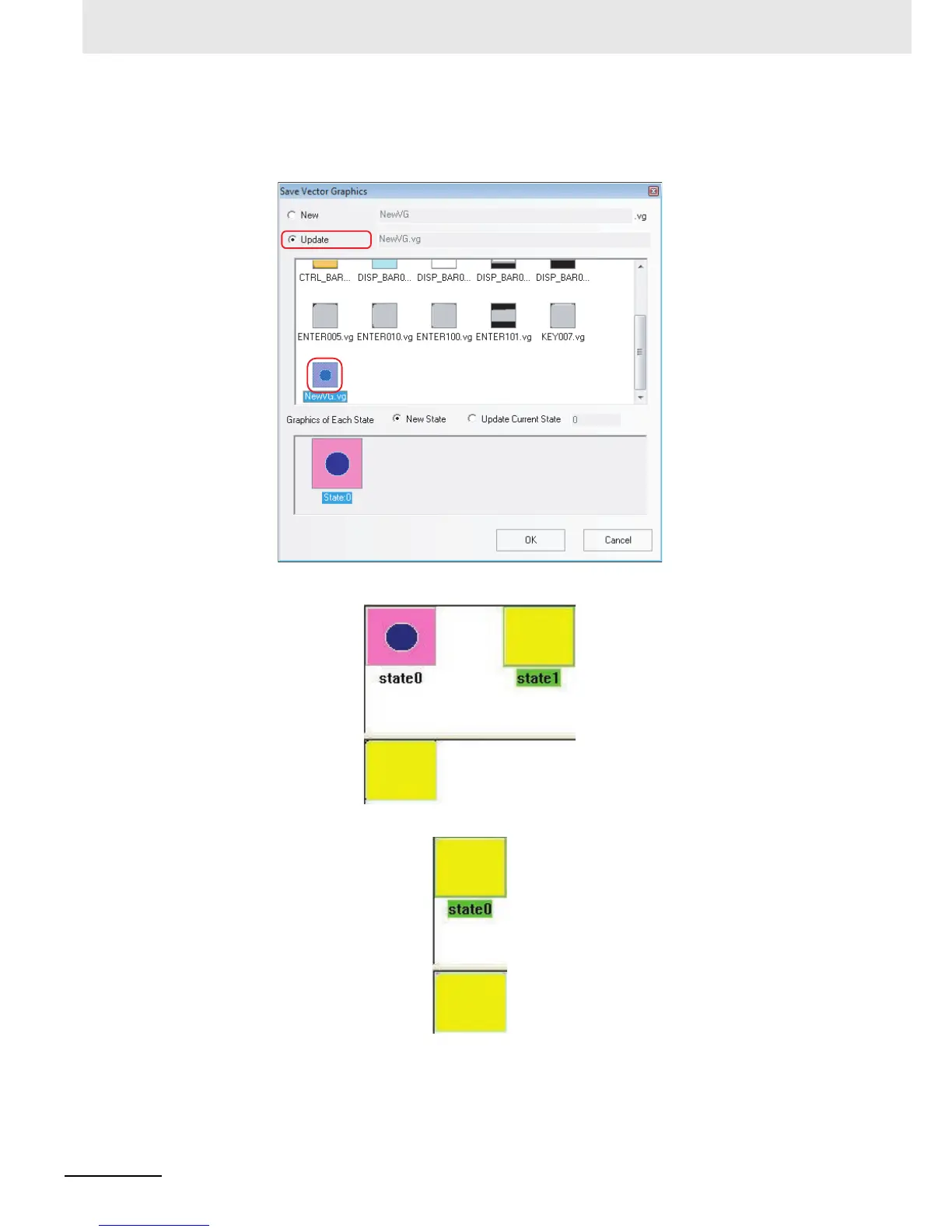

(4) Check in the [Update] radio button in the [Save Vector Graphics] dialog box and select a
NewVG.vg file. Then, select the state of the graphic to save the file.
[New State]: State1 will be added.
[Update Current State]: State0 will be replaced.
[Save to System Graphics Library]: The new created NewVG.vg will be saved to the system
library for the convenient call of this graphics by the other projects. For the method to call
graphics, refer to the 16 Graphics Library (Page 3-369).
To Next Page
