3 Functions of NB-Designer
3-398
NB-series Programmable Terminals NB-Designer Operation Manual(V106)
33
How to clear RW area for recipe saving
Clear the address by system memory related RW memory
(1) Set the Read Address to LW9260 and input the starting address objected of clearing RW
area to the Number Input component which is specified the word length to [DWORD].
(2) Set the Read Address to LW9262 and input the word length objected of clearing RW area
to the Number Input component which is specified the word length to [DWORD].
(3) Set LB9130 (PT system memory) to ON and clear the content of RW area.
How to clear values of RW at a time:
(1) Specify this parameter using the [Clear system memory related to RW memory] method. In
order to clear the stored values in RW memory, specify the longest word length of RW
memory to the range from LW9262 to LW 9263.

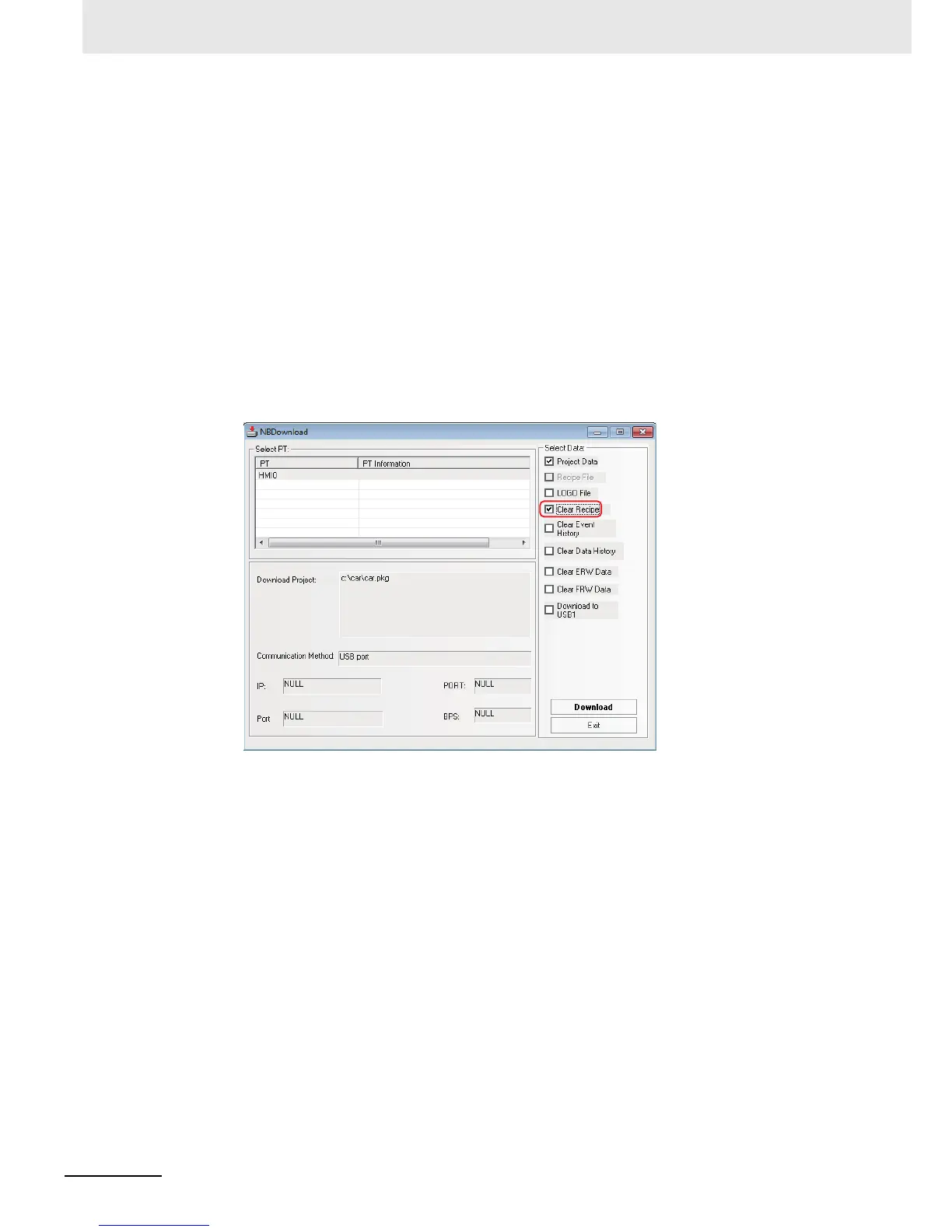

(2) Select “Clear Recipe” in “Select Section” for downloading the NB Manager and click
“Execute”.
(3) Check in the [Clear Recipe] check box during the download.
