3 Functions of NB-Designer
3-50
NB-series Programmable Terminals NB-Designer Operation Manual(V106)
Transparency
It is only valid for the Pop-up Screen and the Menu Screen.

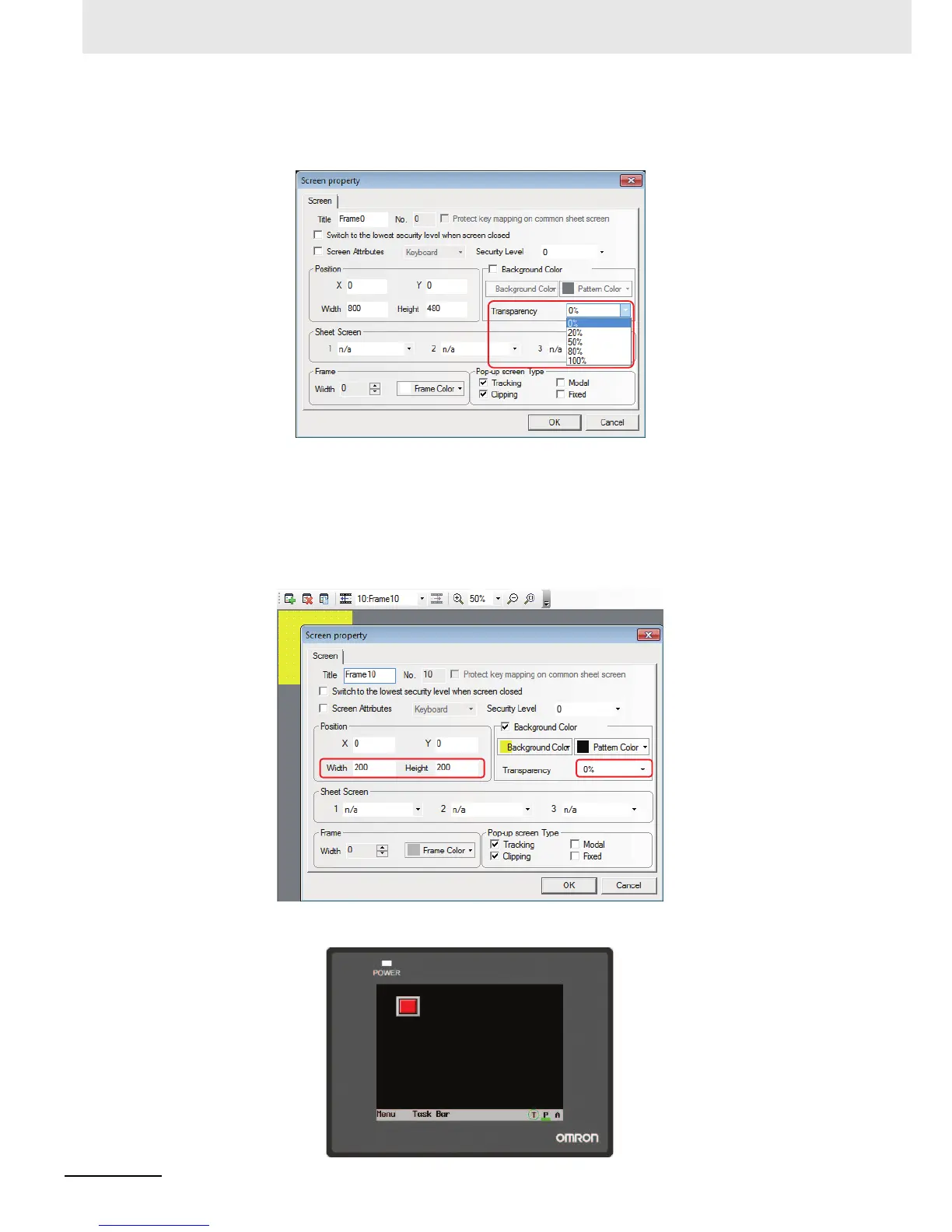

Example of transparency of Pop-up Screen
Placing one function key to [Pop-up screen] “Frame 10” with the property in “Frame 0”, as shown
below.
• When the transparency is 0%.
Set the width and height of Frame 10 to “200” each, the [Background color] to “Yellow”, and the
[Transparency] to “0%”, as shown below.
Perform the offline test, as shown below.
To Next Page
