4-2 1:N Host Connection
4-10

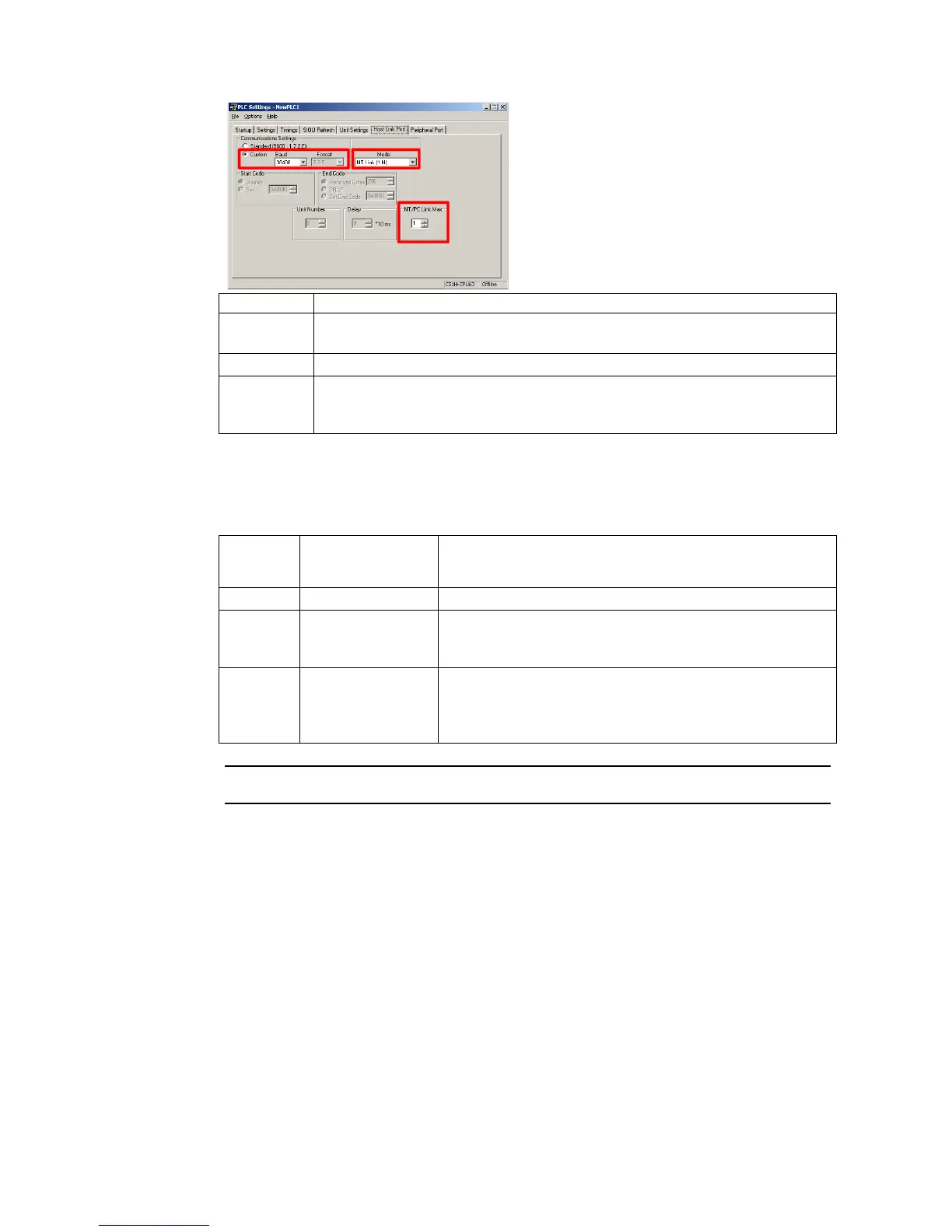

Item Description
Baud Select the Custom Option and set the baud rate to 38,400 bps (Standard 1:N
NT Link Mode). The format does not need to be changed.
Mode Set the mode to the 1:N NT Link Mode.
NT/PLC
Link Max.
If only one PT is connected to the port and it has a unit number of 0, set this
parameter to 1. Otherwise, set the highest unit number of all the PTs that are
connected.
Using a Programming Console
If the PT is connected to the Host Link port (RS-232C port), connect the Programming Con-
sole to the CPU Unit and set the following values at the specified addresses of the PLC
Setup.
PLC
Setup
address
Setting to write Description
160 8200 hex Specifies using the Host Link port in 1:N NT Link Mode.
161 0000 to 0009 hex Specifies the standard communications speed (38,400
bps). It does not matter what value between 0000 and
0009 is set.
166
000@ hex
If only one PT is connected to the port and it has a unit
number of 0, replace the box at the left with 1. Otherwise,
replace the box with the highest unit number of all the PTs
that are connected.
Reference
If the PT is connected to the peripheral port make the above settings in words 144, 145,
and 150 of the PLC Setup instead of 160, 161, 166.
