Omron NS - SETUP User Manual

2-1 Connecting the Host
2-4

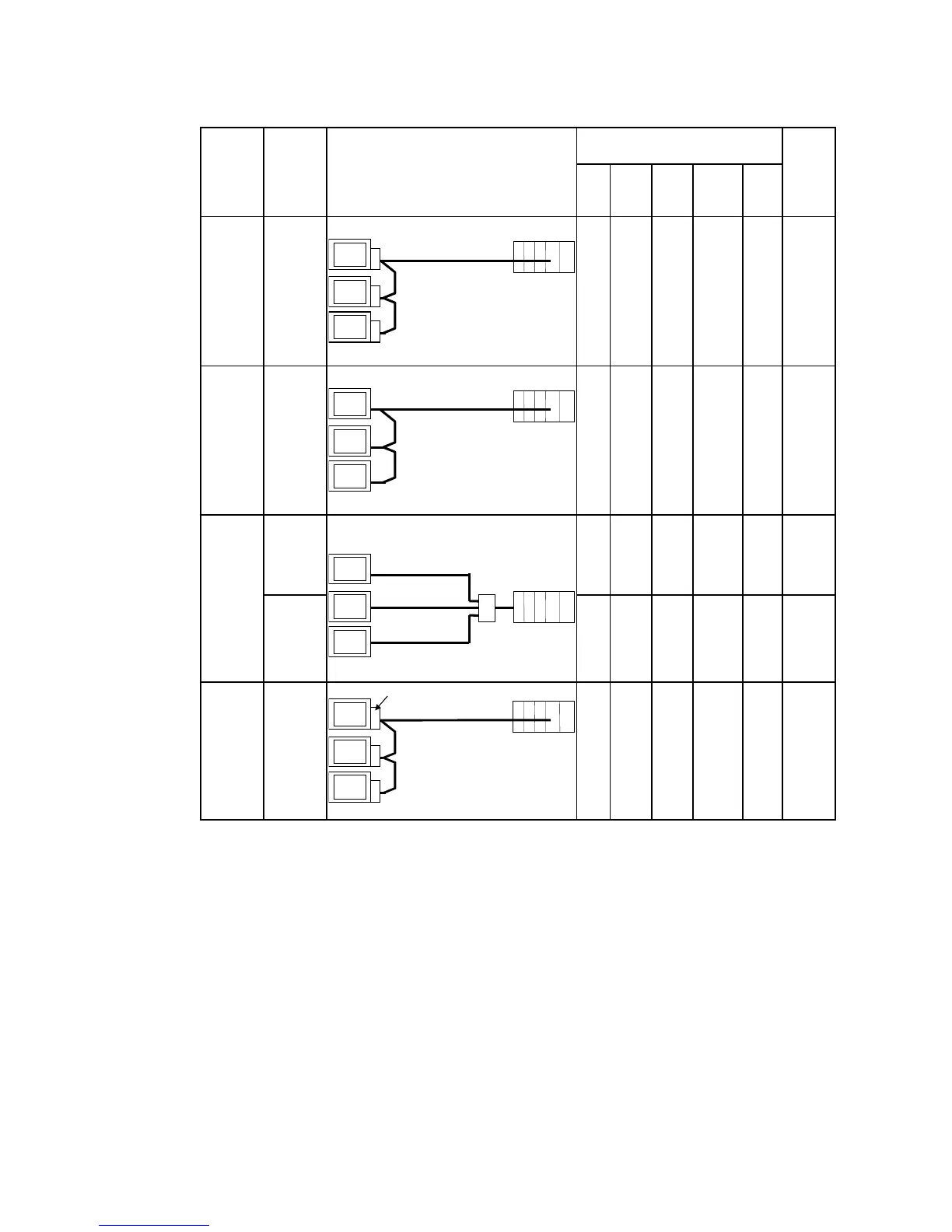

1:N Connection (Connecting Multiple PTs to a Single Host)
Supported communications
methods
PT
commu-
nications
type
Host
commu-
nications
type
Supported connection methods
1:1
NT
Link
1:N
NT
Links
FINS
Ether-
Net/IP
Data
Links
Refer-
ence
page
RS-232C RS-422A
Host
PTs
NS-AL002
Adapter
RS-422A cable
No Yes No No No P. 4-11
RS-422A
(See note
1.)
RS-422A
Host
PTs
NS-AL002
Adapter
RS-422A cable
No Yes No No No P. 4-11
Ethernet No No Yes No No P. 5-2
Ethernet
EtherNet/
IP
Host
PTs
Ethernet
HUB
10Base-T/100Base-T
twisted-pair straight cable
No No No Yes No P. 5-26
Controller
Link (See
note 2.)
Controller
Link
Host
PTs
Controller Link
Interface Unit
Specified shielded
twisted-pair cable
No No Yes No Yes P. 5-17
Yes: Connection is possible. No: Connection is not possible.
Note 1: Possible only with the NS15-TX01@-V2.
Note 2: Only when a Controller Link Interface Unit (NS-CLK21) is mounted.
