2-2 Part Names and Functions
2-10

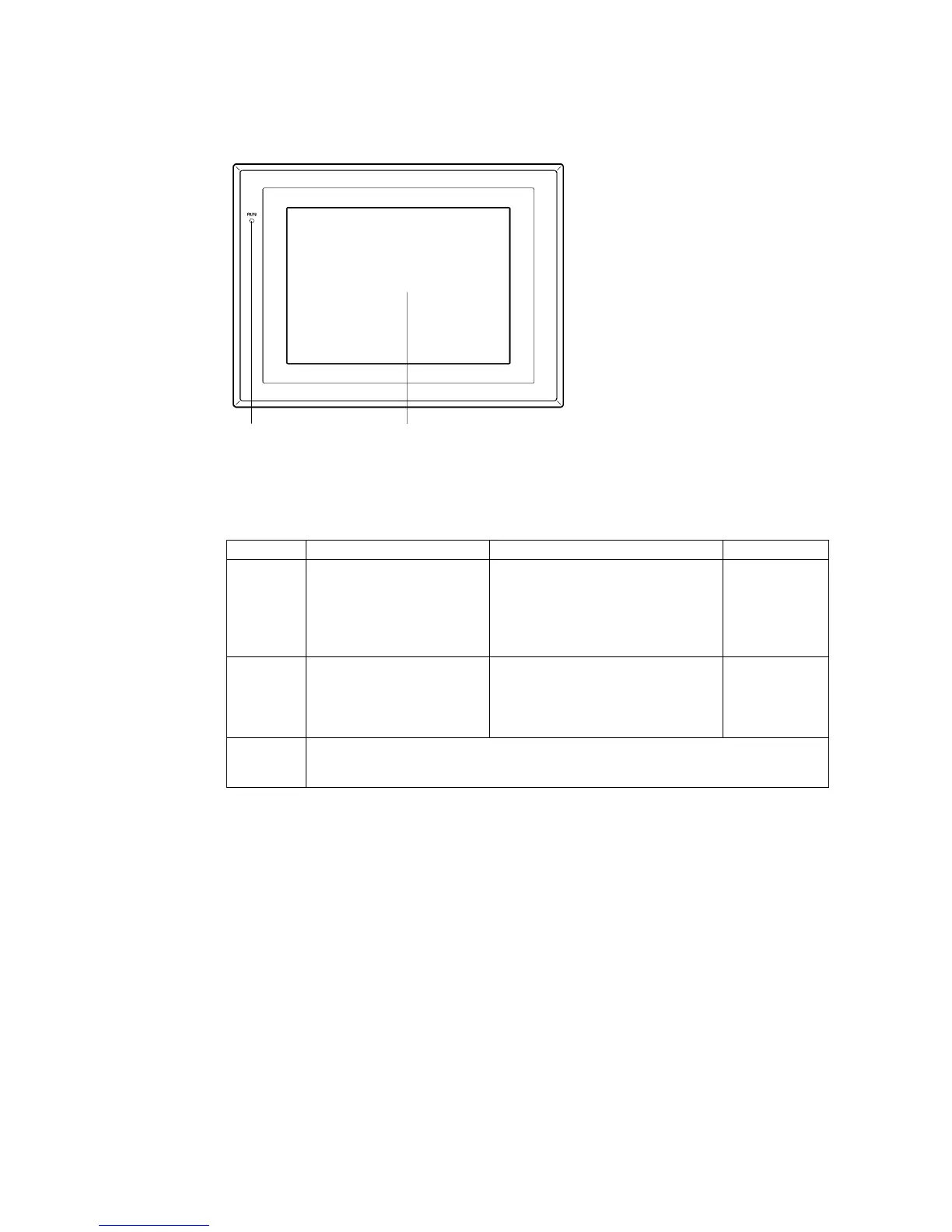

NS12/NS10 Front Panel
RUN indicator
Lights or flashes to indicate
the status of the PT.
Display
NS12: 12.1-inch TFT high-luminance LCD
NS10: 10.4-inch TFT high-luminance LCD
The entire display is a touch panel that serves as
an input device.
RUN Indicator Status
Indicator Green Orange Red
Lit PT is operating normally.
• The file system check that is per-
formed immediately after the
power is turned ON is in progress.
• The battery power is low, or the
battery is not connected and the
PT is operating normally.
An error oc-
curred at
startup.
Flashing Memory Card transfer ended
normally.
A backlight error occurred
immediately after power was
turned ON.
Memory Card transfer in progress. Memory Card
transfer ended
abnormally.
Not lit
• Power is not being supplied to the PT.
• The fuse is broken.
• The system program is damaged and the system cannot be booted.
