Omron NS - SETUP User Manual

2-2 Part Names and Functions
2-11

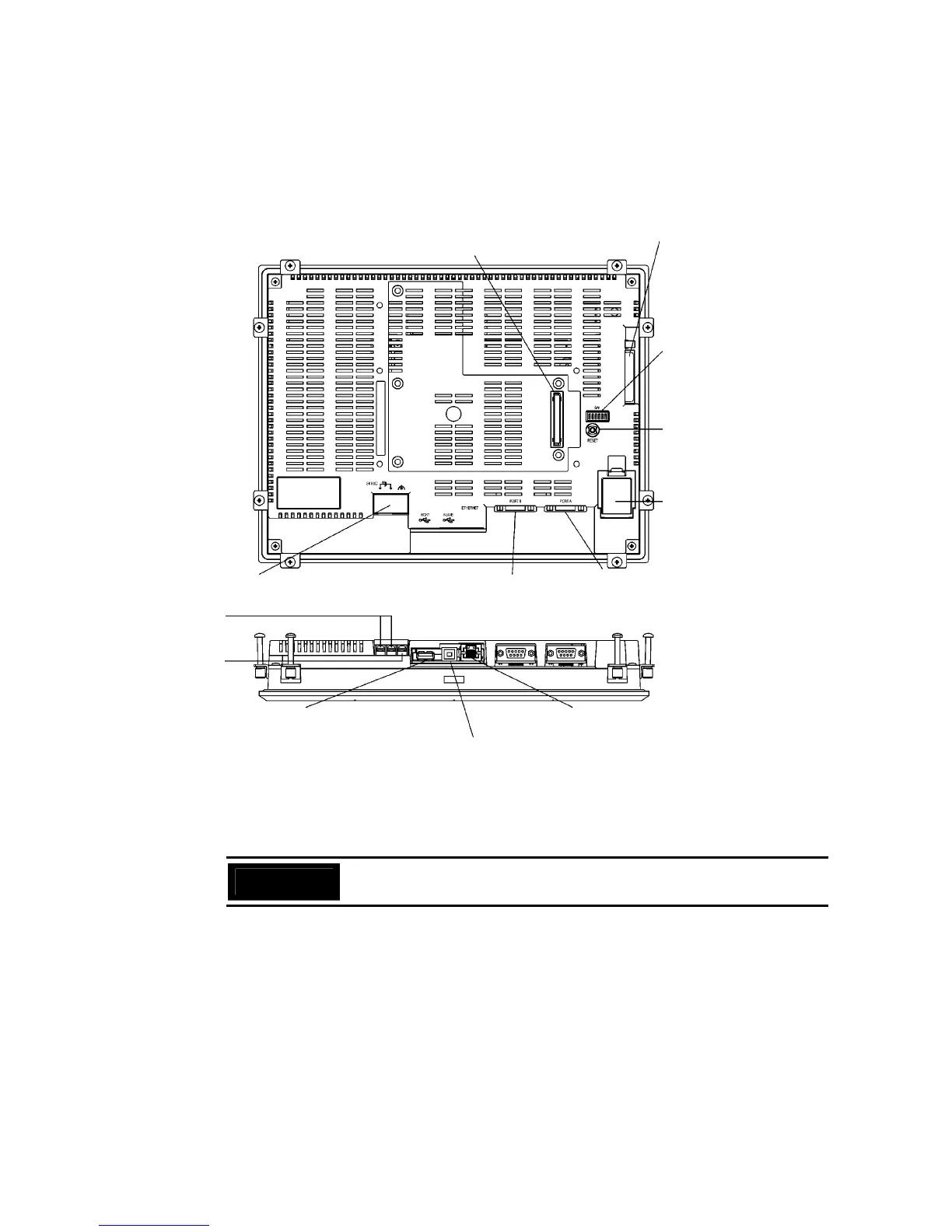

NS12/NS10 Rear Panel Switches
Expansion Interface Connecto
r
Used to mount the Video Input
Unit or the Controller Link
Interface Unit.
Reset Switch
Used to initialize the PT.
The status of screen data,
other registered data, and
the system menu, however,
will not change.
Serial Port A Connector
Used to connect the host, CX-Designer, and
Bar Code Reader. Uses an RS-232C 9-pin
connector.
Battery Cover
The battery is installed
underneath the cover.
Ethernet Connector
Used to connect the Ethernet cable. Uses a
10Base-T/100Base-T 8-pin modular plug.
DIP Switch
Used to set the settings for
transmitting data using the
Memory Card.
Memory Card Connector
Used to connect the
memory card for storing
and transmitting screen
data, log data, and system
programs.
Serial Port B Connector
Used to connect the host, CX-
Designer, and Bar Code Reader.
Uses an RS-232C 9-pin
connector.
USB Slave Connecto
r
This is a USB Type B connector. It can be used to connect to the CX-Designer.
Refer to 3-3-2 Connecting via USB.
A
PictBridge-compatible printer can also be connected to the NS12-V2 or NS10-V2.
(Refer to 3-5-2 Connecting a PictBridge-compatible Printer.)
USB Host Connector
Used to connect to printers. It is a
USB Type A connector.
Refer to 3-5-1 Connecting to a
Printer Compatible with ESC/P
Raster or BJ Raster.
FG Terminal
Used to prevent
malfunctions due to
noise interference.
Main Circuit DC
Input Terminals
Used to connect
the power supply.
Power Input Terminal Block Cover
Covers the power input terminal block.
Precautions
for Safe Use
Confirm system safety before turning the power ON/OFF or restarting. Other-
wise the system may operate unpredictably.
