Numeral Setting
Section 4-8
4-8-3 Creating Numeric Keys
In order to input numerical values using the numeral setting function, apart from
the display area for the numeral setting, the numeric keys must also be created.
Setting Screen Attributes The type of numeric keys can be selected using the numeral setting attributes of
the screen attributes. There are two numeral setting attributes: “system” and
“user”.

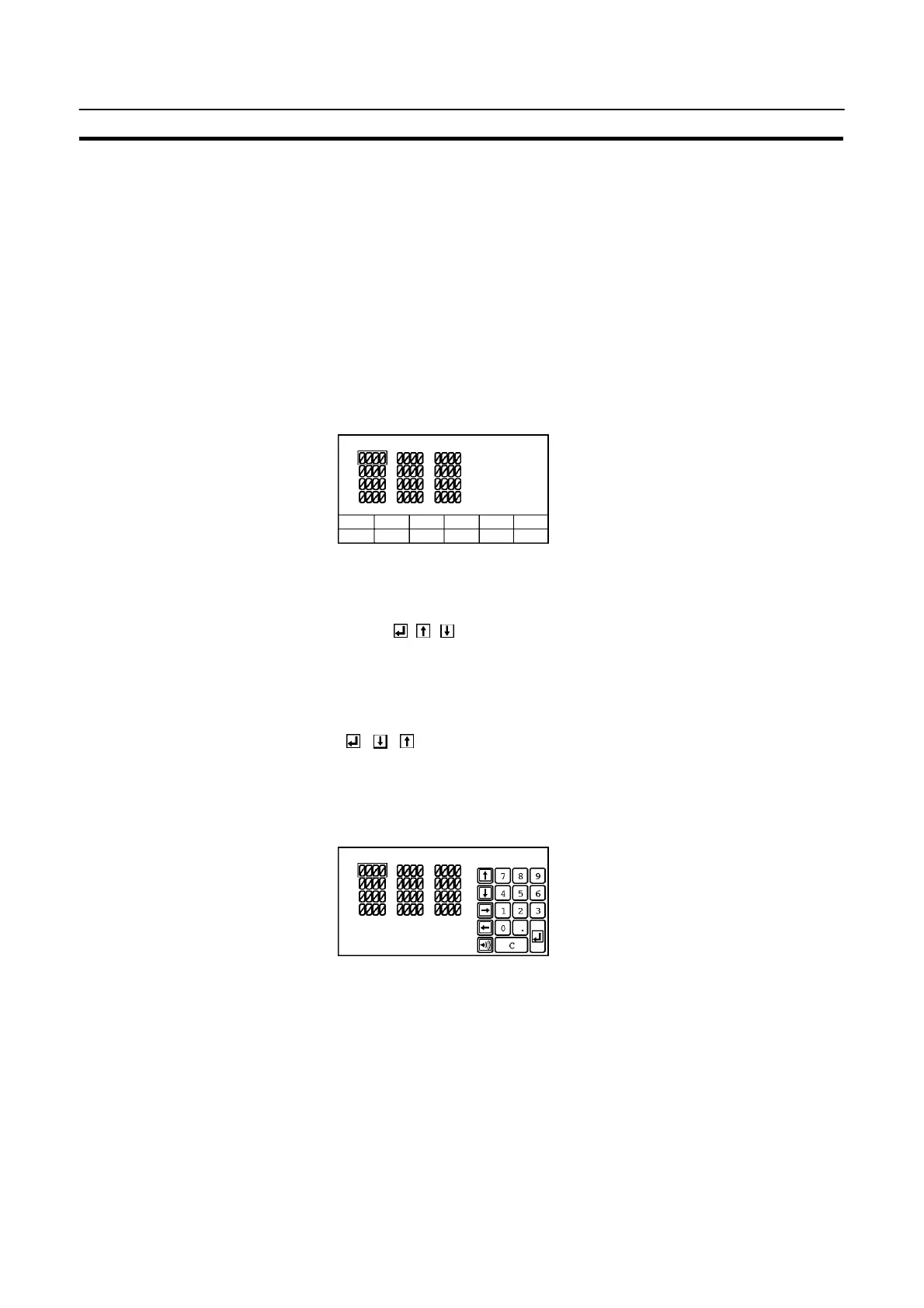

S Screen when “system” is specified
When a numeral setting area is created, numeric keys are automatically dis-
played. The display position and arrangement of the numeric keys are fixed. On
this screen, only the types of numeric key shown in the figure below (system
keys) are used.
Tank A Tank B Tank C
123456
7890CLR"
When using the NT20S with the numeral setting attribute set to “system”, apart
from the numeric keys provided by the system, the touch switches allocated to
system keys ( , , ) also have to be created (system key function). To enable
input of hexadecimal values, it is also necessary to create numeric keys A through
F.
With the NT20S, if the numeral setting attribute is set to “system”, apart from the
numeric keys prepared by the system, the touch switches allocated to system
keys ( , , ) have to be created. (“System key functions”, page 139)
S When the numeral setting attribute is “user”
The display position and arrangement of the numeric keys can be set as required
by allocating them to touch switches (see page 125).
Tank A Tank B Tank C
When the numeral setting attribute is set to “user”, numeric keys are created by
using the control keys of the “input key” function. In addition, by using the char-
acter keys of the “input key” function, the one-byte characters 0 to 9 and A to F
can be used as numeric keys.
