113
Creating and Transmitting Screen Data
Section 4-1
NT20S-ST121-EV3 (Host link/NT link), NT20S-ST122-V1 (C200H direct communication)
PT Setting : 20S
Memory Size : 96 KB
Direct setting : Ver.4 or Ver.5
Direct Macn Type: OMRON
NT20S-ST128 (RS-232C)
PT Setting : NT20S
Memory Size : 96 KB
Direct setting : None
Direct Macn Type: OMRON
4-1-2 Creating Screen Data
Screen Data Creation Method
The screen data is created by using the support tool. The support tool registers the
screen data used with one NT20S to one file.
Screen data can be created by one of the following three methods:
S creating a new file;
S editing an existing file;
S reading and editing selected screens from an existing file.
Screen Data Creation Procedure
The following gives the basic screen data creation procedure. Required settings
and reference pages are given for each step of the procedure.

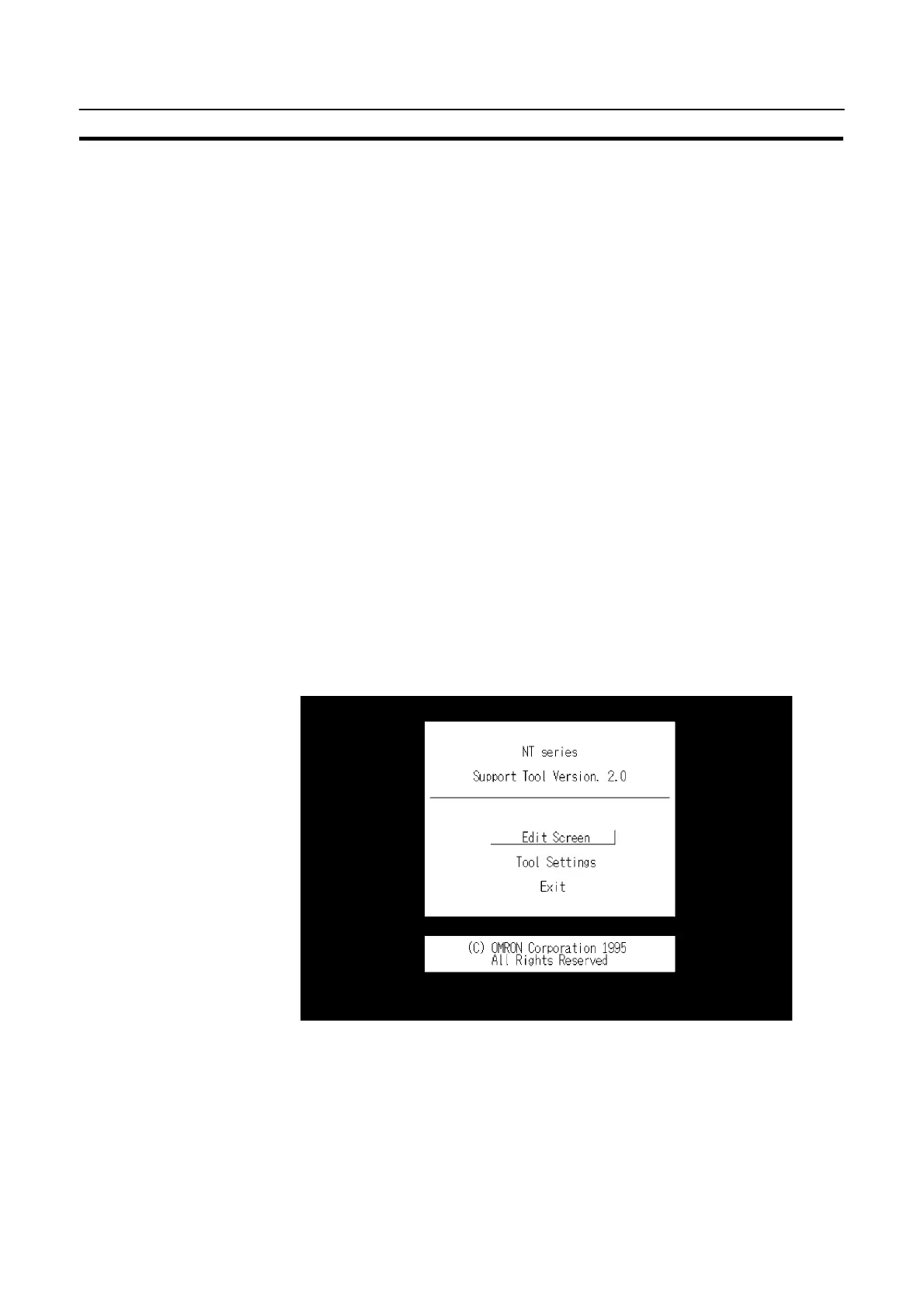

' Select “Tool Settings” in the Main Menu to display the “Tool Settings” screen.
Settings of PT setting, memory size, and direct setting are made in this screen.
Refer to “Setting the support tool for use with the NT20S” on the previous page.
To Next Page
